Pioneer® Diamante Pro Series 9,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit

Overview

Summary

• High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
• Cooling capacity: 9,000 BTU/H with 19 SEER2 / 10 EER2 efficiency
• Heating capacity: 10,000 BTU/H with 8.5 HSPF / 3.41 COP efficiency
• Voltage: 110/120V, 60Hz, 1Ph

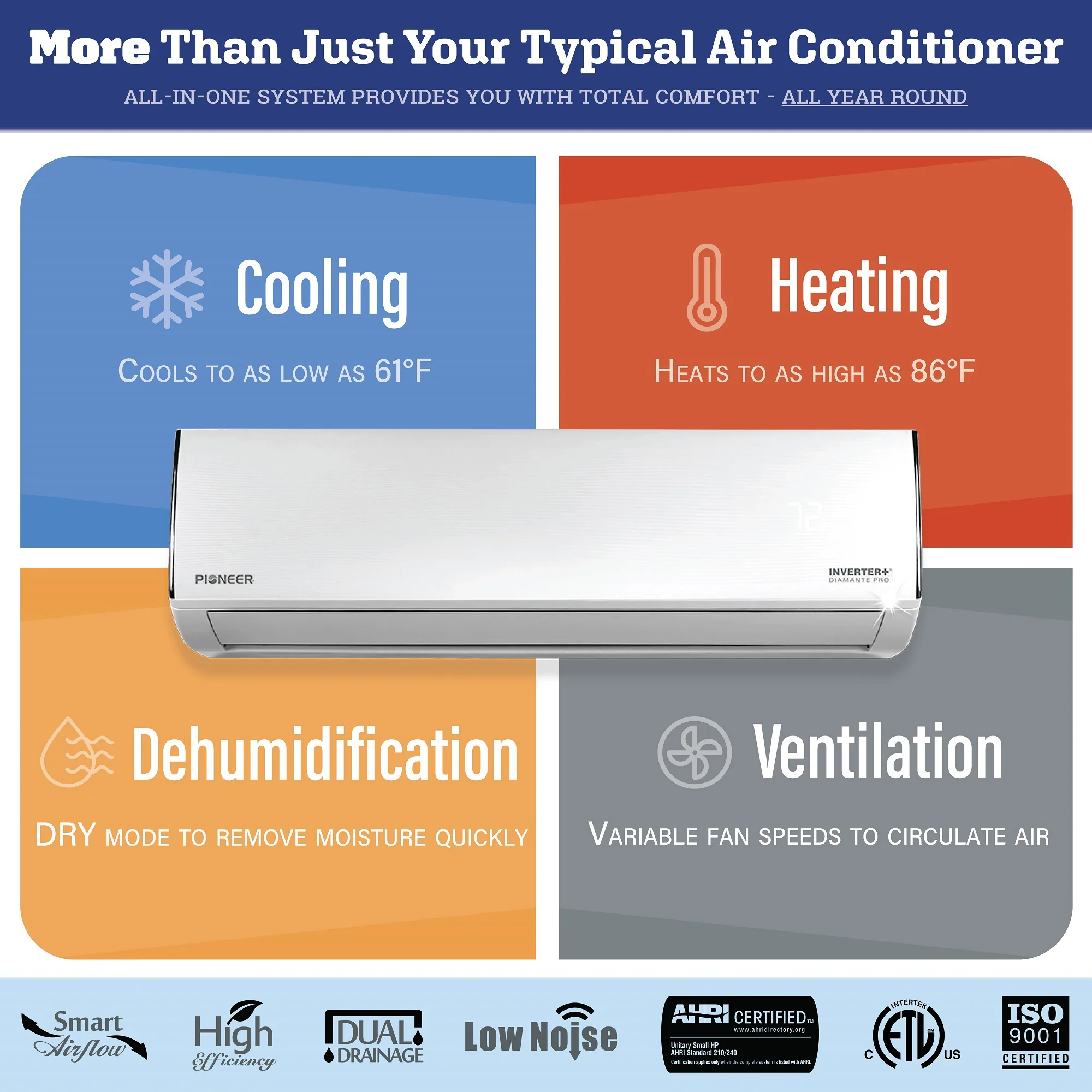

• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

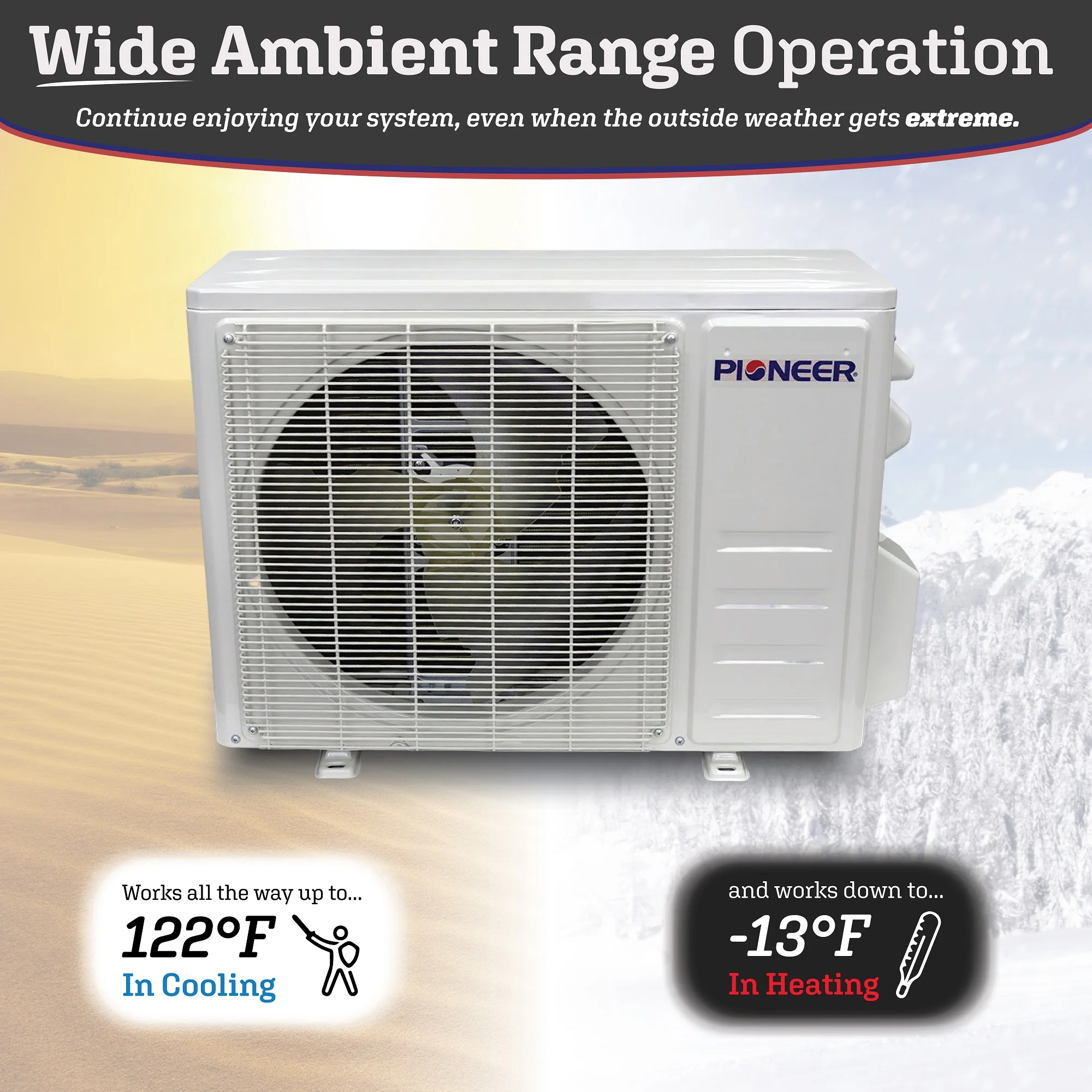

• Low Ambient Unit (-13°F)

• AHRI Estimated Annual Operating Costs:
• Cooling: $59.00
• Heating: $191.00

[[SERIES]]

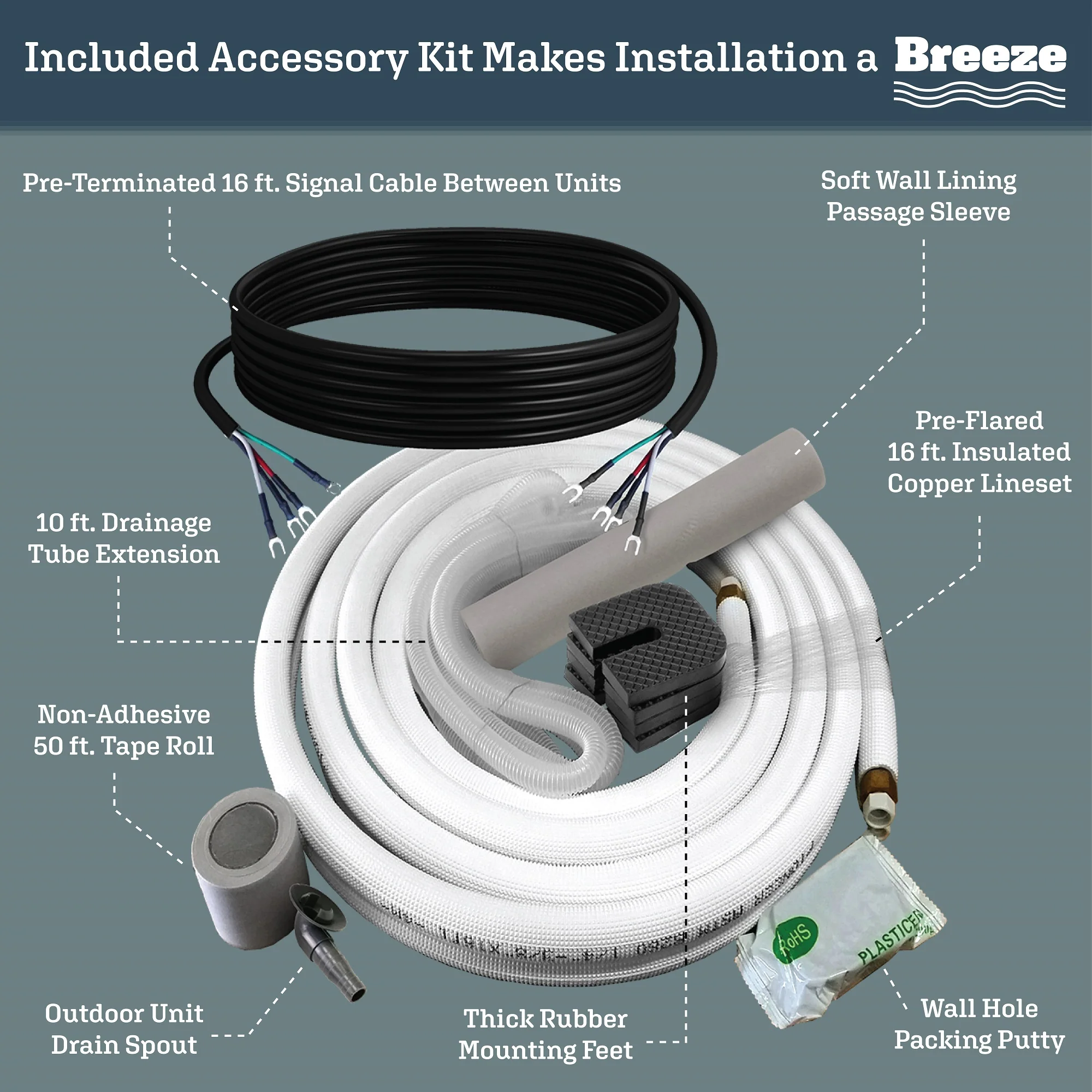

What's Included

• Indoor Unit
• Outdoor Unit

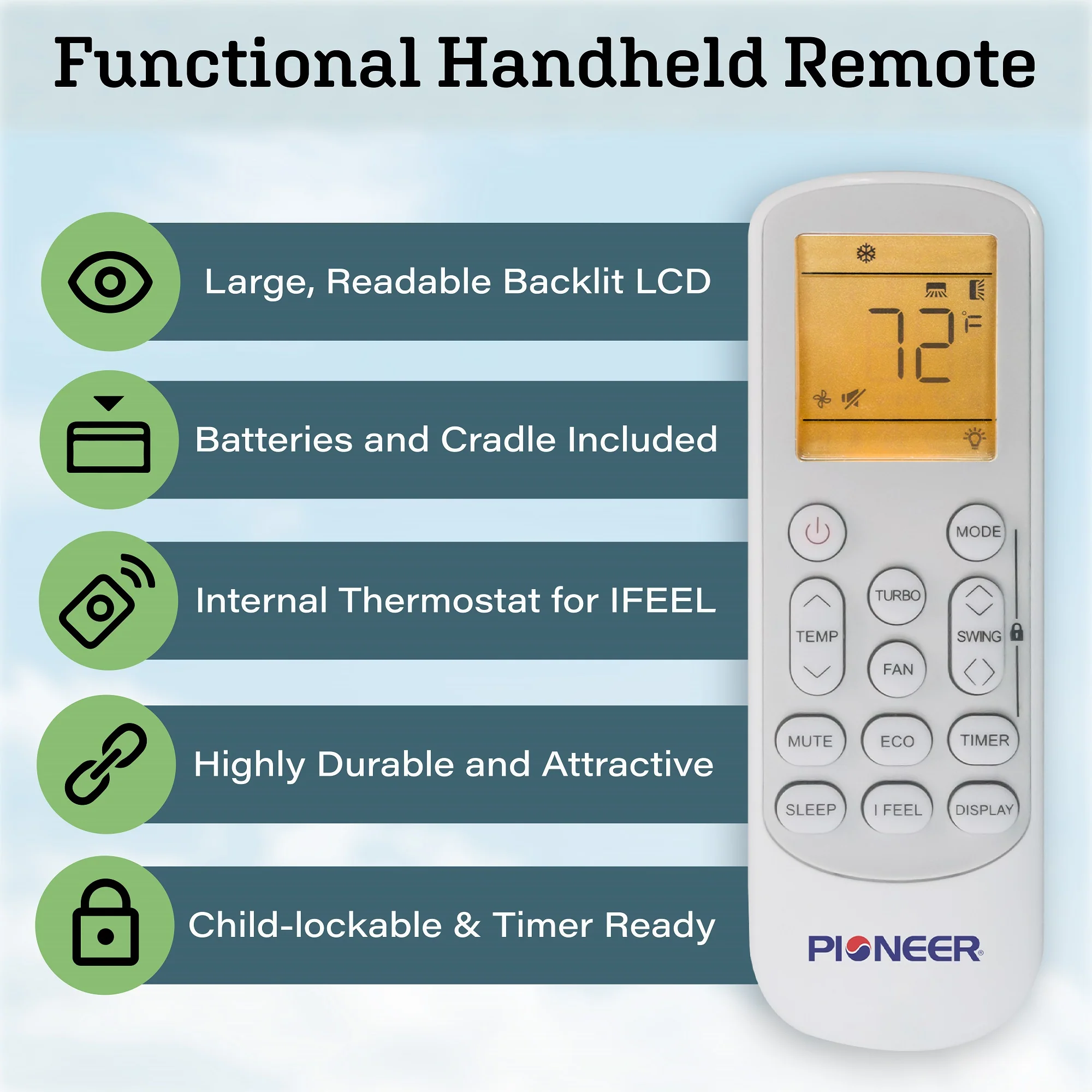

• Wireless Remote Control (with wall holder and batteries)
• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Our Guarantee

• 5 years Warranty for Parts
• 5 years Warranty for Compressor

Features

[[FEATURES]]

Technical Information

Performance Data

• Power Supply: 115V, 60Hz, 1Ph
• Cooling Rated Capacity: 9,000 BTU/h
• Cooling Capacity Range: 5,800~10,300 BTU/h
• Cooling SEER2: 19.0 BTU/W.h
• Cooling EER2: 10.0 BTU/W.h
• Heating Rated Capacity: 10,000 BTU/h
• Heating Capacity Range: 5,400~10,900 BTU/h
• Heating HSPF2 (Region IV/V): 8.5 / 7.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.41 / 1.75 W/W
• Refrigerant Type: R410A/28.6 Oz.
• Suitable Area: 100~350 Sq.F

Indoor Unit Data

• Part Number: WT009ALFI19HLE
• Air Flow (Hi/Med/Lo): 353 / 288 / 250 CFM
• Sound Level (Hi/Med/Lo): 38 / 35 / 32 dB(A)
• Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
• Carton Dimensions (WDH): 34-7/8 x 11 x 14-1/2 Inches
• Net / Gross Weight: 19.8 / 24.2 lbs

Outdoor Unit Data

• Part Number: YN009ALFI19RPE

• Breaker Needed: 20A (single-pole)
• Sound Level: 50 dB(A)
• Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
• Carton Dimensions (WDH): 33-1/2 x 14-1/8 x 24 Inches
• Net / Gross Weight: 60.6 / 69.5 lbs

Manuals & Documents

• Technical Brochure
• User & Installation Manual
• Service Manual
• AHRI Certificate

• Energy Guide
