Pioneer® Diamante Pro Series 36,000 BTU 19 SEER2 Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit

Overview

Summary

• High Efficiency Diamante Pro Ductless Mini Split Heat Pump System
• Cooling capacity: 36,000 BTU/H with 19 SEER2 / 9 EER2 efficiency
• Heating capacity: 36,000 BTU/H with 8.5 HSPF2 / 3.01 COP2 efficiency
• Voltage: 208~230V, 60Hz, 1Ph

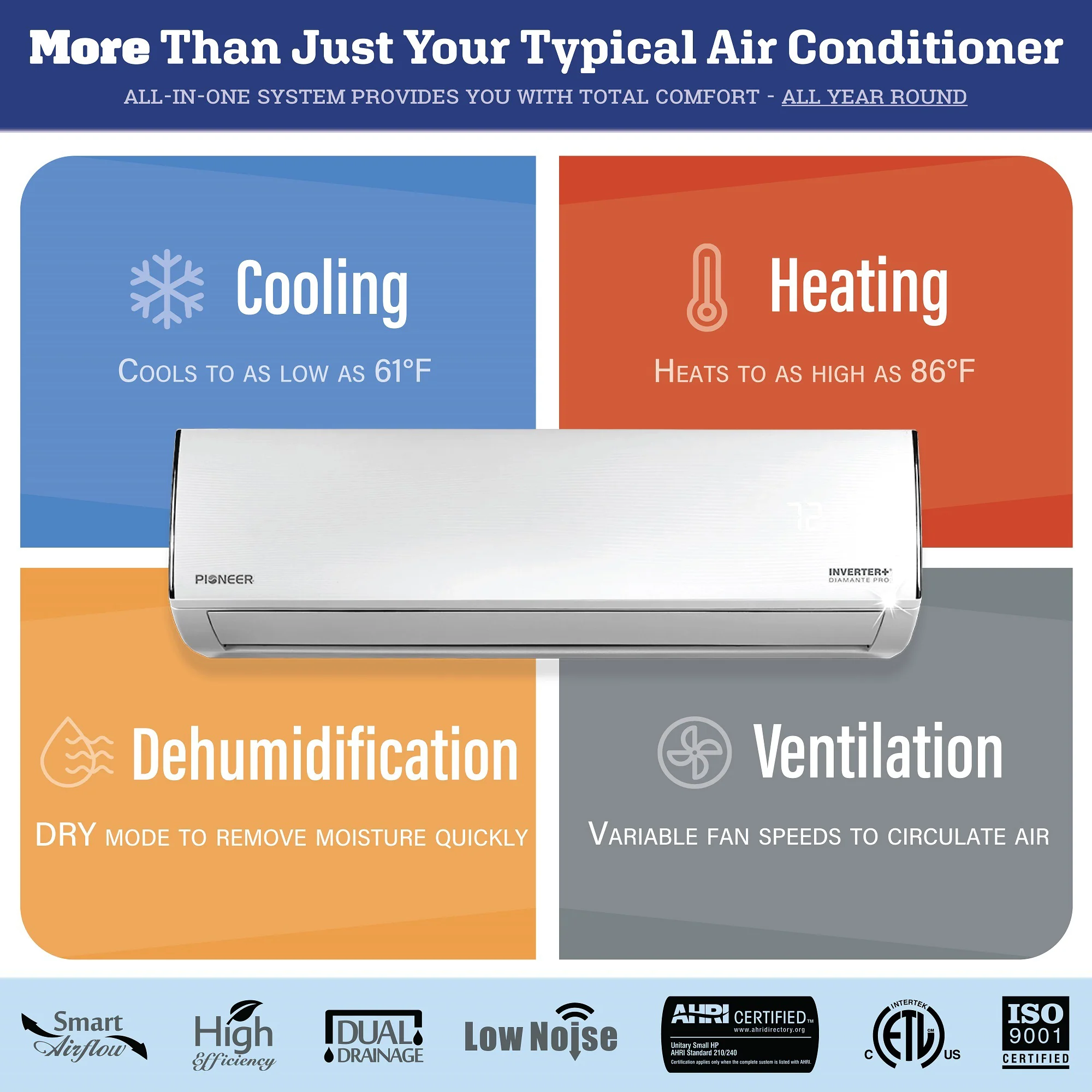

• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

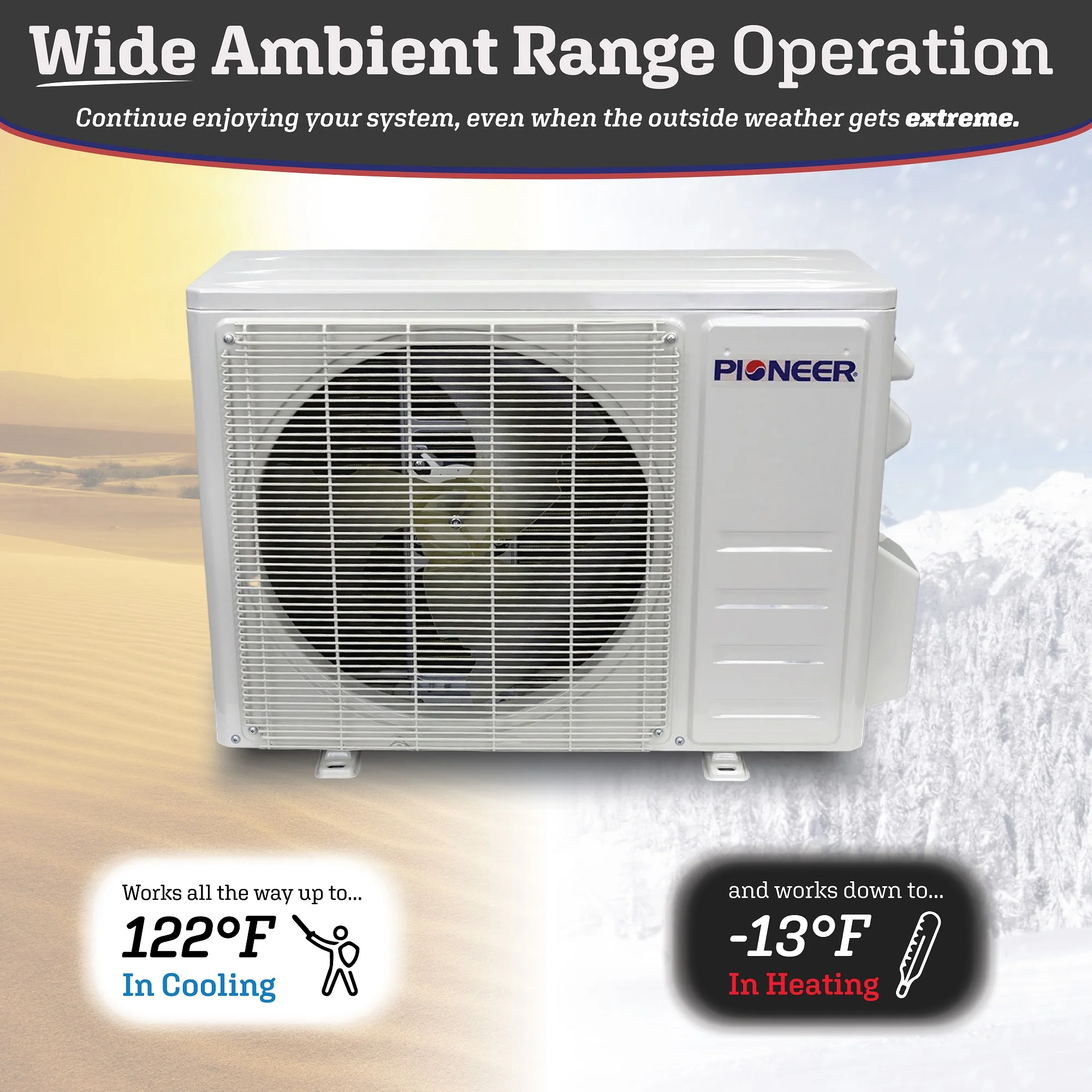

• Low Ambient Unit (-13°F)

[[SERIES]]

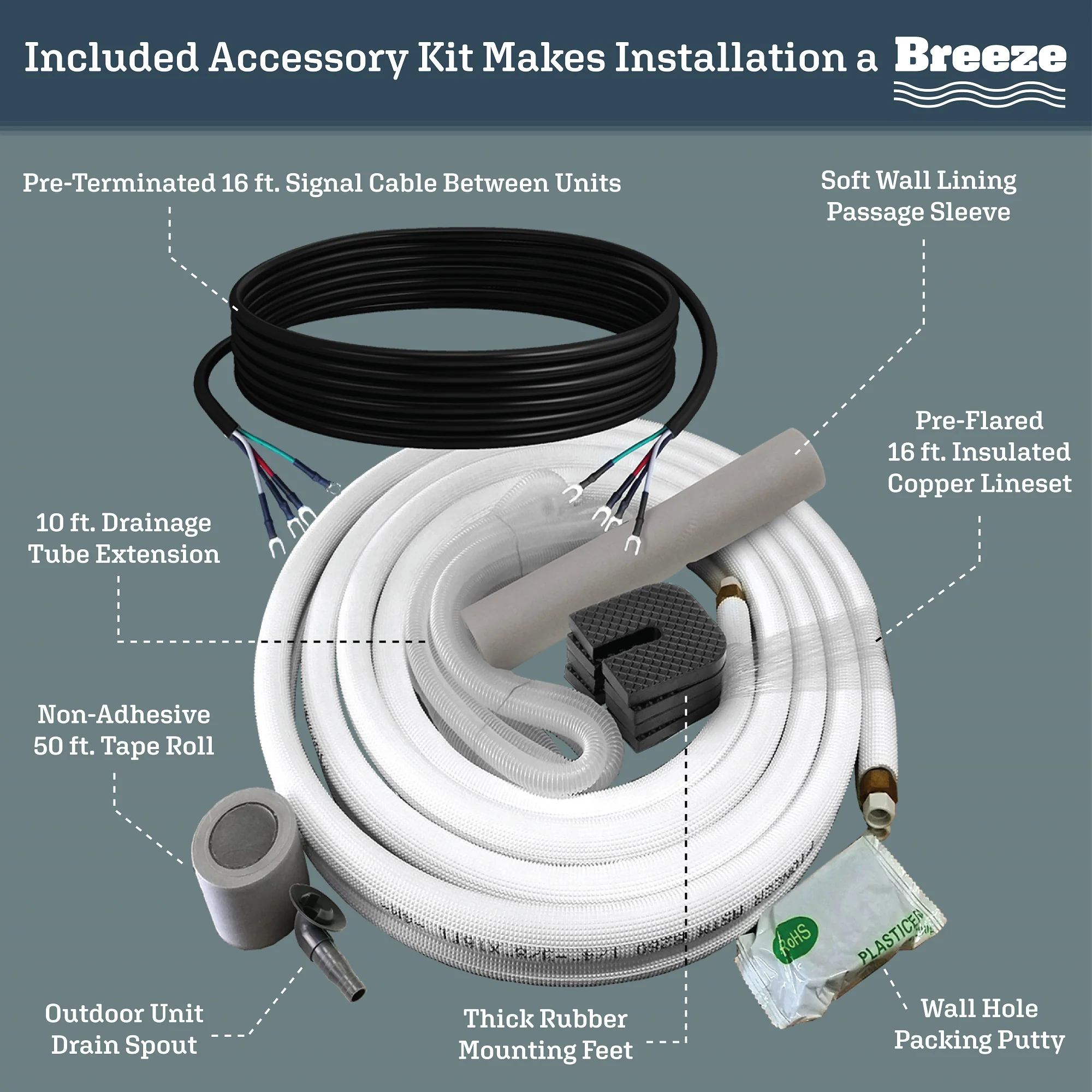

What's Included

• Indoor Unit
• Outdoor Unit

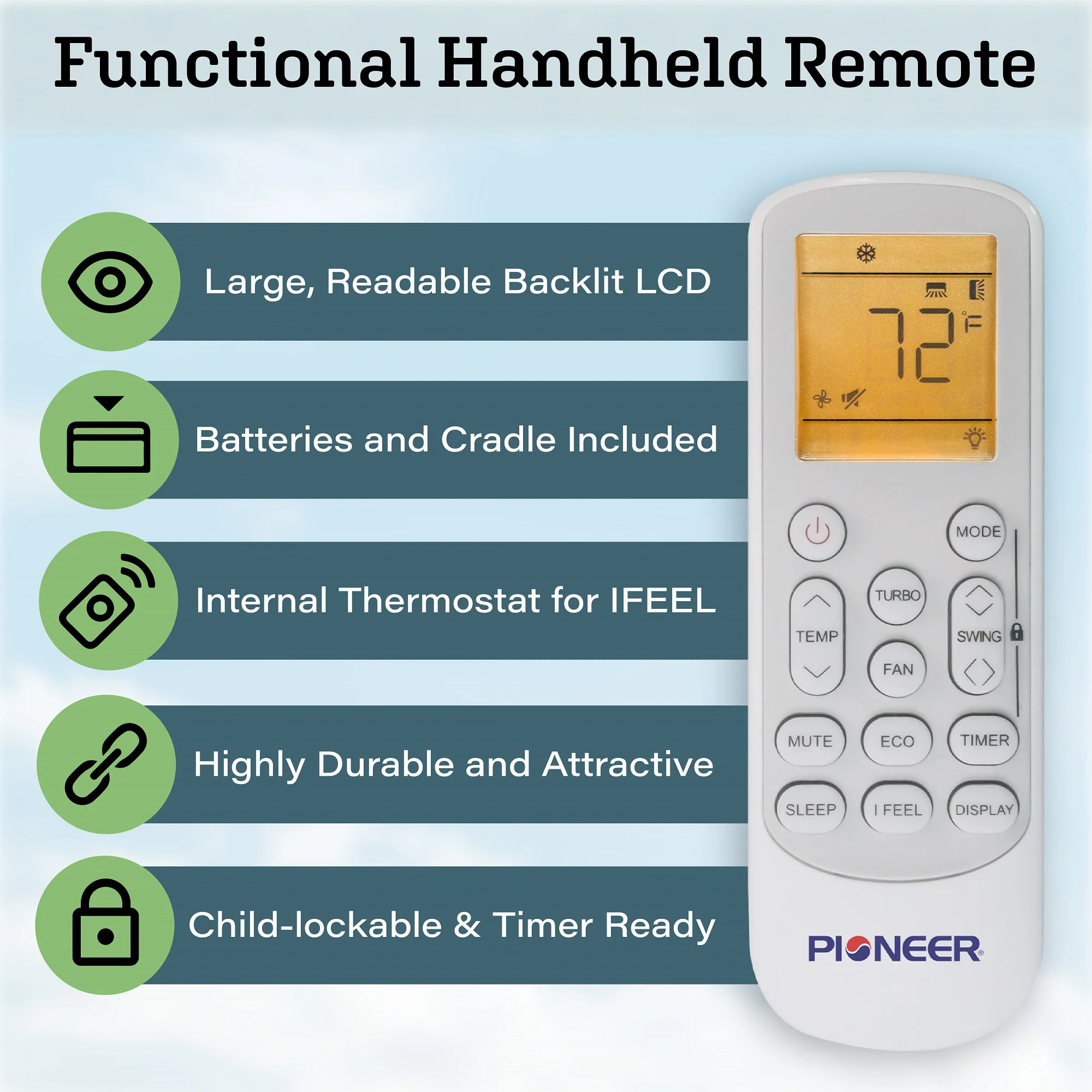

• Wireless Remote Control (with wall holder and batteries)
• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Our Guarantee

• 5 years warranty for Parts
• 5 years warranty for Compressor

Features

[[FEATURES]]

Technical Information

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 36,000 BTU/h
• Cooling Capacity Range: 10,800~39,600 BTU/h
• Cooling SEER2: 19 BTU/W.h
• Cooling EER2: 9 BTU/W.h
• Heating Rated Capacity: 36,000 BTU/h
• Heating Capacity Range: 10,800~39,600 BTU/h
• Heating HSPF2 (Region IV/V): 8.5 / 7.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.01 / 1.75 W/W
• Refrigerant Type: R410A

• Suitable Area: 900~1,250 Sq.F

Indoor Unit Data

• Part Number: WT036GLFI19HLE

• Air Flow (Hi/Med/Lo): 847 / 700 / 641 CFM
• Sound Level (Hi/Med/Lo): 48 / 43 / 38 dB(A)
• Net Dimensions (WDH): 47  x 10-1/4 x 14-1/4 Inches
• Carton Dimensions (WDH): 49-3/4 x 13-1/4 x 17-1/4 Inches
• Net / Gross Weight: 39.7 / 48.5 lbs

Outdoor Unit Data

• Part Number: YN036GLFI19RPE
• Breaker Needed: 25A (double-pole)
• Sound Level: 63 dB(A)
• Net Dimensions (WDH): 35-3/4 x 14-1/8 x 31-1/2 Inches
• Carton Dimensions (WDH): 40-1/2 x 18-3/4 x 34 Inches
• Net / Gross Weight: 114.6 / 126.8 lbs

Manuals & Documents

• Technical Brochure
• User & Installation Manual
• Service Manual

• AHRI Certificate

• Energy Guide
