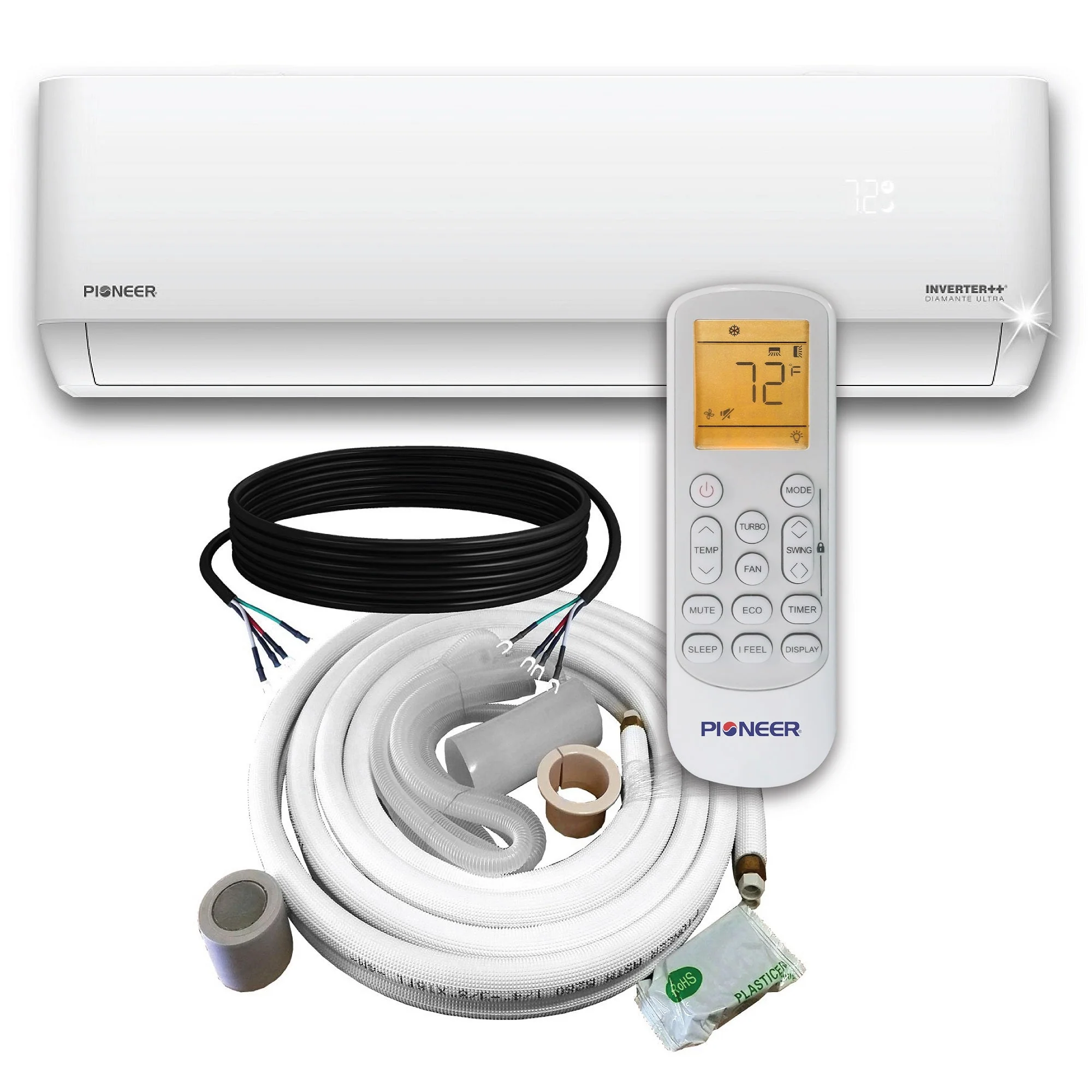

Pioneer® Multi Zone 12,000 BTU Diamante Ultra Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V

Performance

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Capacity: 12,000 BTU/h
• Cooling SEER: 23
• Heating Capacity: 12,000 BTU/h
• Heating HSPF: 10
• Suitable Area: 300~450 Sq.F
• Air Flow (Hi/Med/Lo): 471 / 382 / 294 CFM
• Sound Level (Hi/Med/Lo/Mute): 39 / 34 / 29 / 27 dB(A)
• Net Dimensions (WDH): 36-1/4 × 7-5/8 × 12 Inches
• Carton Dimensions (WDH): 39 × 10-3/8 × 15 Inches
• Net / Gross Weight: 23.1 / 26.5 Lbs

Manuals & Documents

• Technical Brochure

• Installation and User's Manual

What's Included

• Indoor Unit

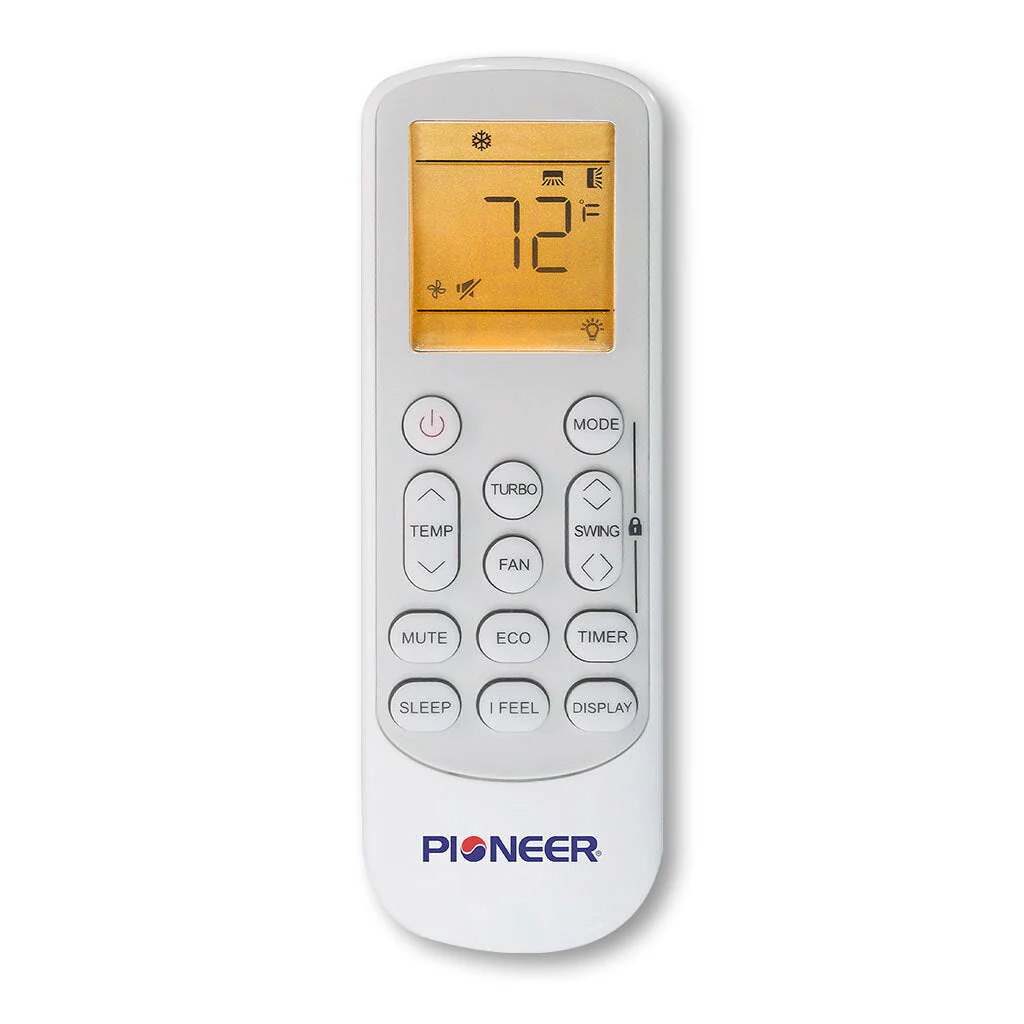

• Wireless Remote Control
• Wi-Fi Module w/ Free App

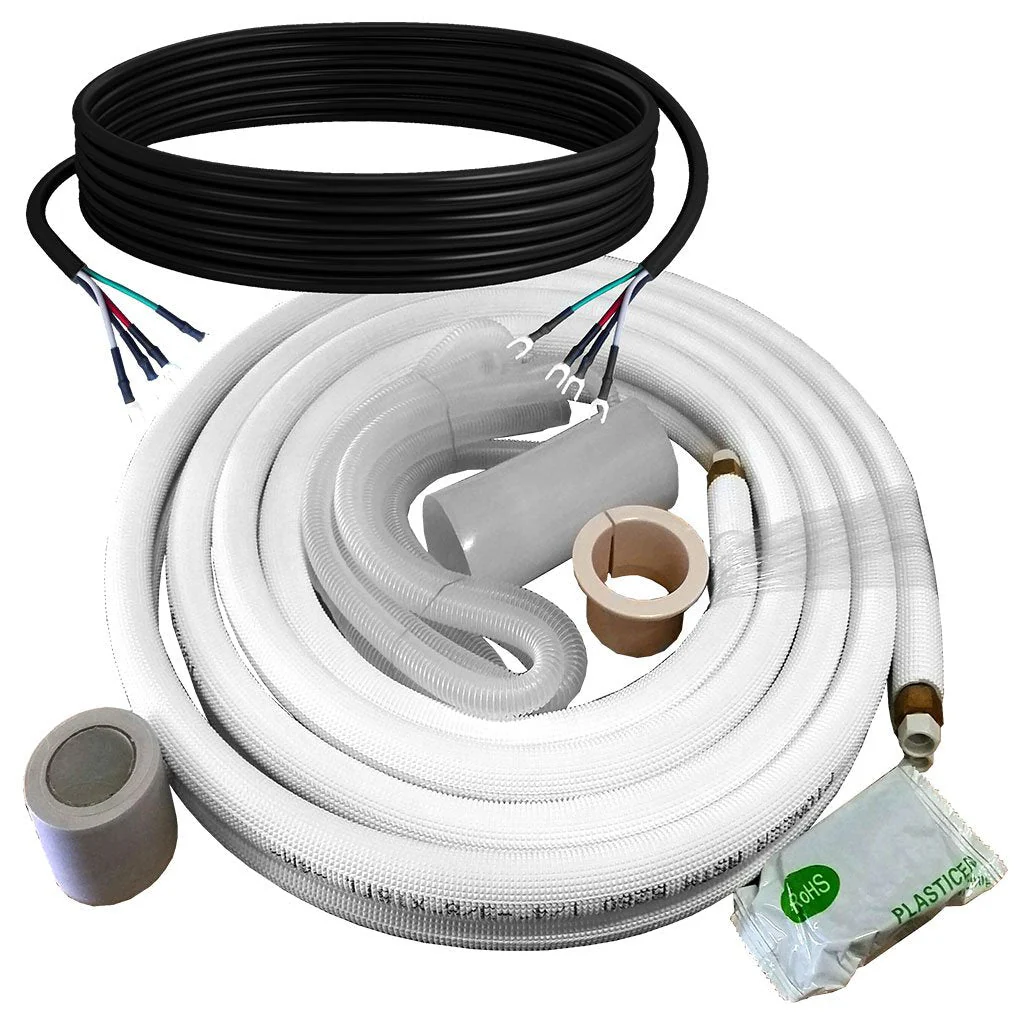

• Full Installation Kit (unless "No Installation Kit" is selected)
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty
