Pioneer® Diamante Ultra 18,000 BTU 22 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 230V with 16 Ft. Kit

Overview

Summary

• Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
• Cooling capacity: 18,000 BTU/H with 22 SEER2 / 13 EER2 efficiency
• Heating capacity: 18,000 BTU/H with 9.0 HSPF2 / 3.5 COP efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Low Ambient Unit (-13°F)
• Wireless Internet Access Included (Via Free Smartphone App)
• AHRI Estimated Annual Operating Costs:
• Cooling: $111.00
• Heating: $381.00

[[SERIES]]

What's Included

• Indoor Unit

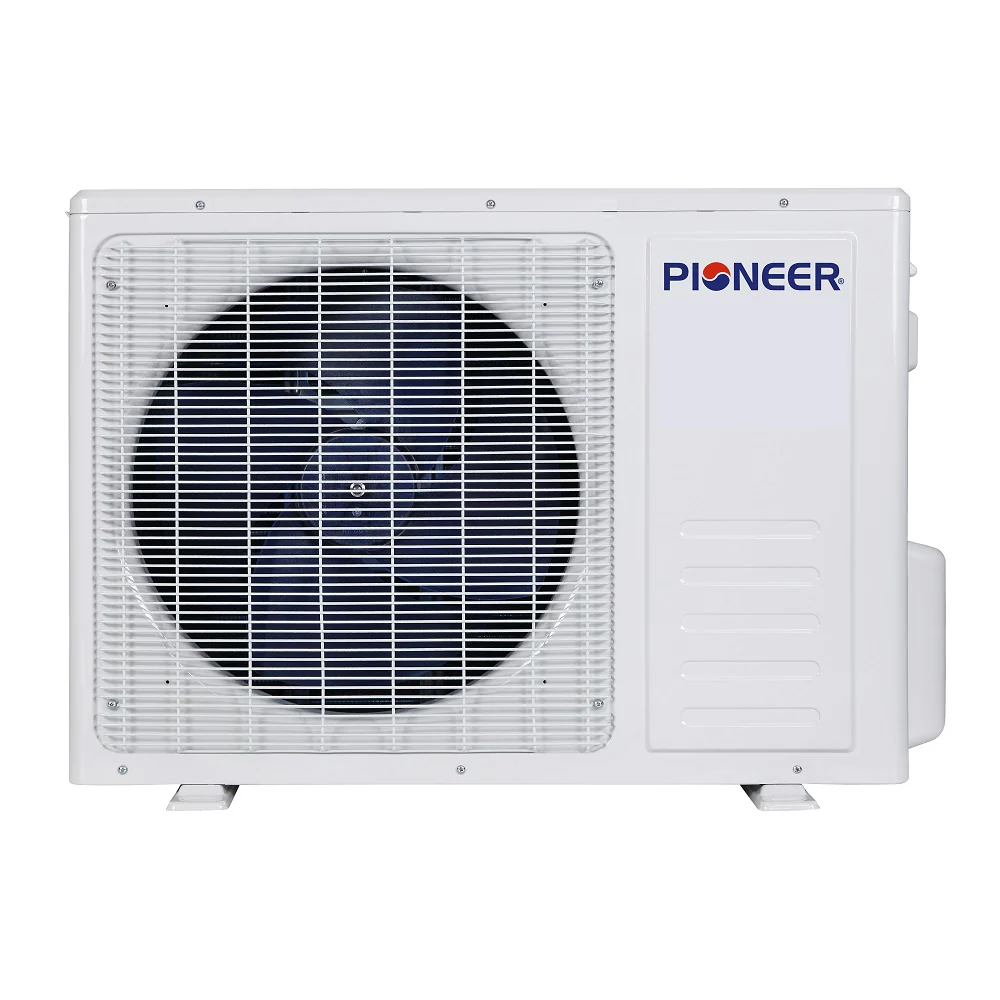

• Outdoor Unit

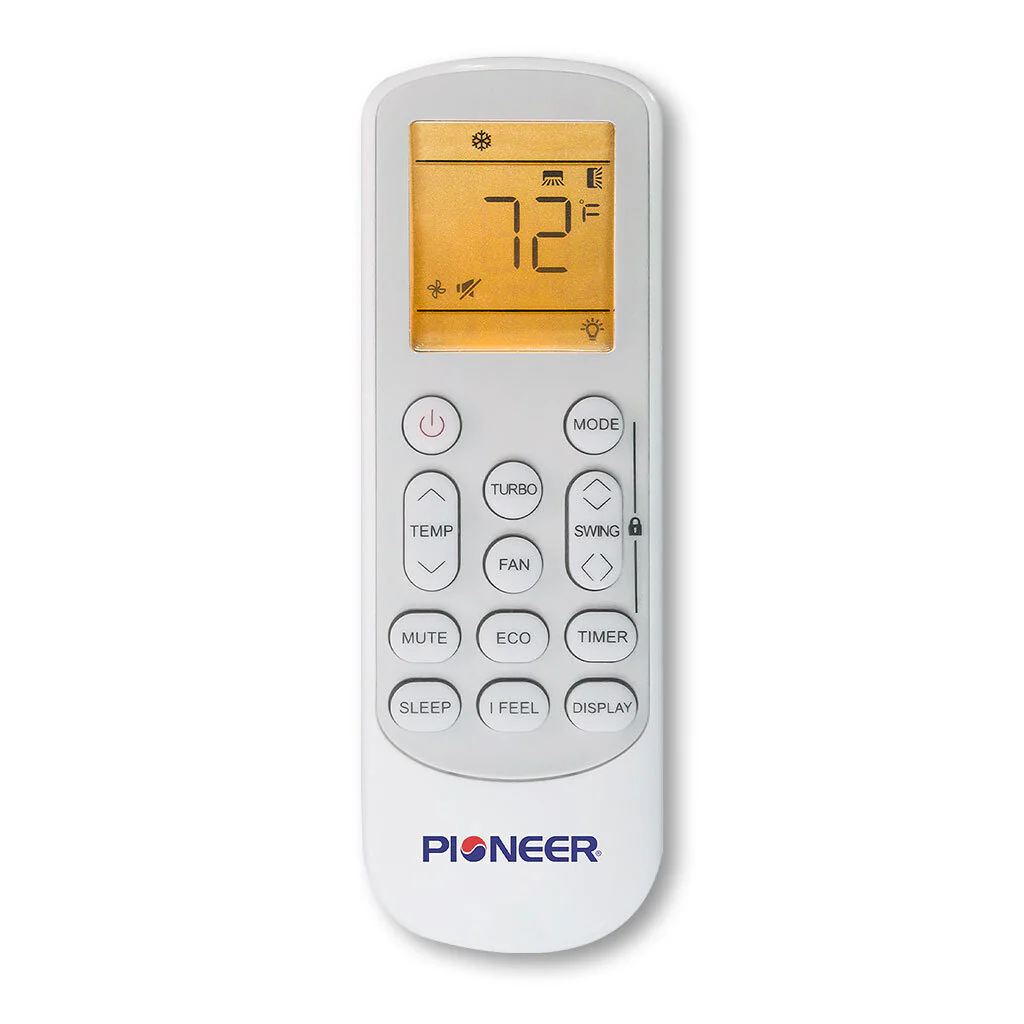

• Wireless Remote Control (with wall holder and batteries)

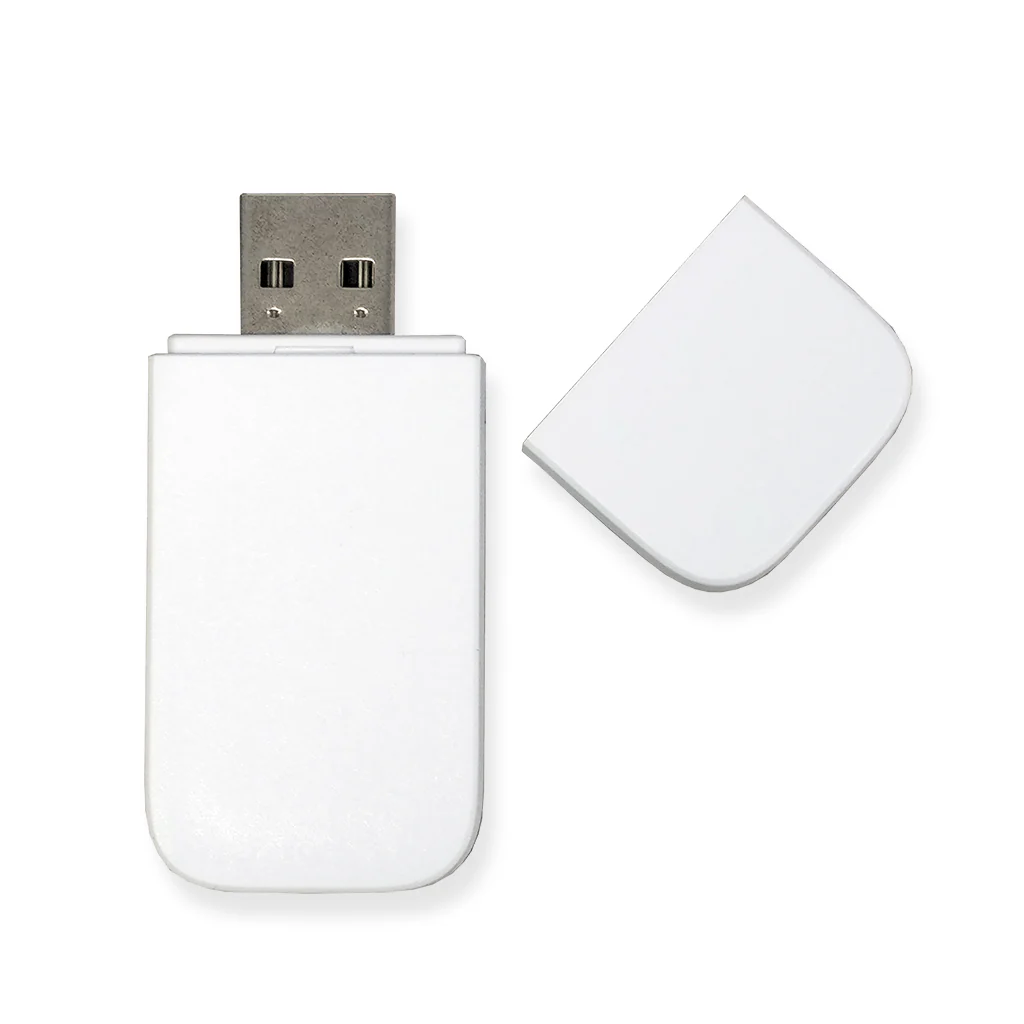

• Internet Control Module

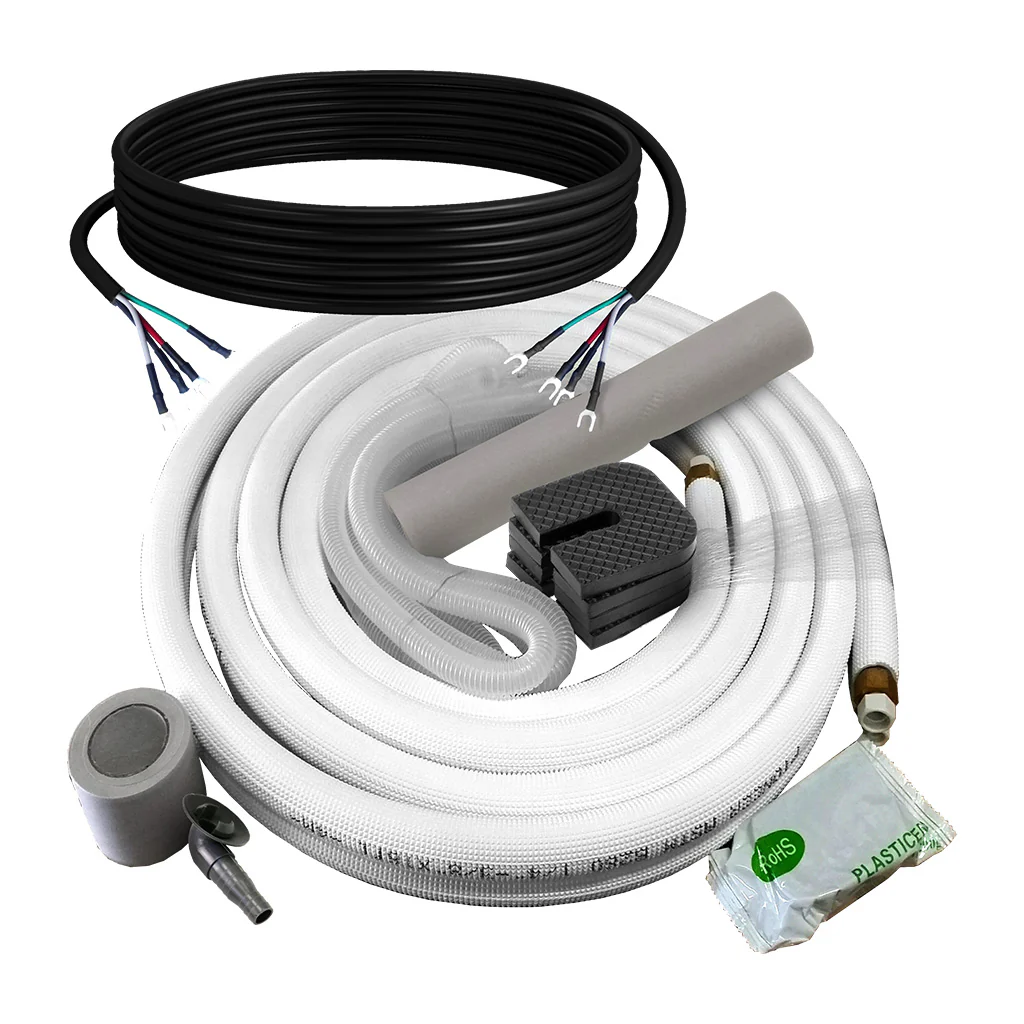

• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Our Guarantee

• 5 years Warranty for Parts (Extendable to up to 7 years)
• 5 years for Compressor (Extendable to up to 10 years)

Features

[[FEATURES]]

Technical Information

Performance Data

• Power Supply: 230V, 60Hz, 1Ph
• Cooling Rated Capacity: 18,000 BTU/h (1.5 Ton)
• Rated Power Input (Cooling): 1350W
• Cooling SEER2: 22 BTU/W.h
• Cooling EER2: 13 BTU/W.h
• Heating Rated Capacity: 18,000 BTU/h (1.5 Ton)
• Rated Power Input (Heating): 1310W
• Heating HSPF2: 9 BTU/W.h
• Heating C.O.P.: 3.5 W/W
• Refrigerant Type: R410A
• Recommended Application Area: 400~650 Sq.Ft

Indoor Unit Data

• Part Number: WT018GLFI22HLD
• Air Flow (Hi/Med/Lo): 735 / 618 / 529 CFM
• Sound Level (Hi/Med/Lo/Mute): 45/40/35/31 dB(A)
• Net Dimensions (WDH): 43-3/8 x 8-3/4 x 13-1/8 Inches
• Carton Dimensions (WDH): 45-7/8 x 11-5/8 x 16 Inches
• Net / Gross Weight: 30.9 / 35.3 Lbs

Outdoor Unit Data

• Part Number: YN018GLFI22RPD
• Sound Level: 52 dB(A)
• Net Dimensions (WDH): 33-1/4 x 15 x 27-1/2 Inches
• Carton Dimensions (WDH): 37-3/4  x 17 x 29-1/2 Inches
• Net / Gross Weight: 84.9 / 93.7 lbs
• Electrical Circuit Size: 20A (double-pole)

Manuals & Documents

• Sales Brochure
• Technical Brochure
• Submittal Sheet
• User & Installation Manual
• WiFi Pairing Instructions
• Service Manual
• Parts Diagrams
• AHRI Certificate
• Energy Guide
