Pioneer® Diamante Ultra 12,000 BTU 22 SEER2 Ductless Mini-Split Inverter++ Energy-Star Wi-Fi Air Conditioner Heat Pump Full Set 115V with 16 Ft. Kit

Overview

Summary

• Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
• Cooling capacity: 12,000 BTU/H with 22 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 12,000 BTU/H with 9.0 HSPF2 / 3.5 COP efficiency
• Voltage: 110/120V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Low Ambient Unit (-13°F)
• Wireless Internet Access Included (Via Free Smartphone App)
• AHRI Estimated Annual Operating Costs:
• Cooling: $72.00
• Heating: $254.00

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit

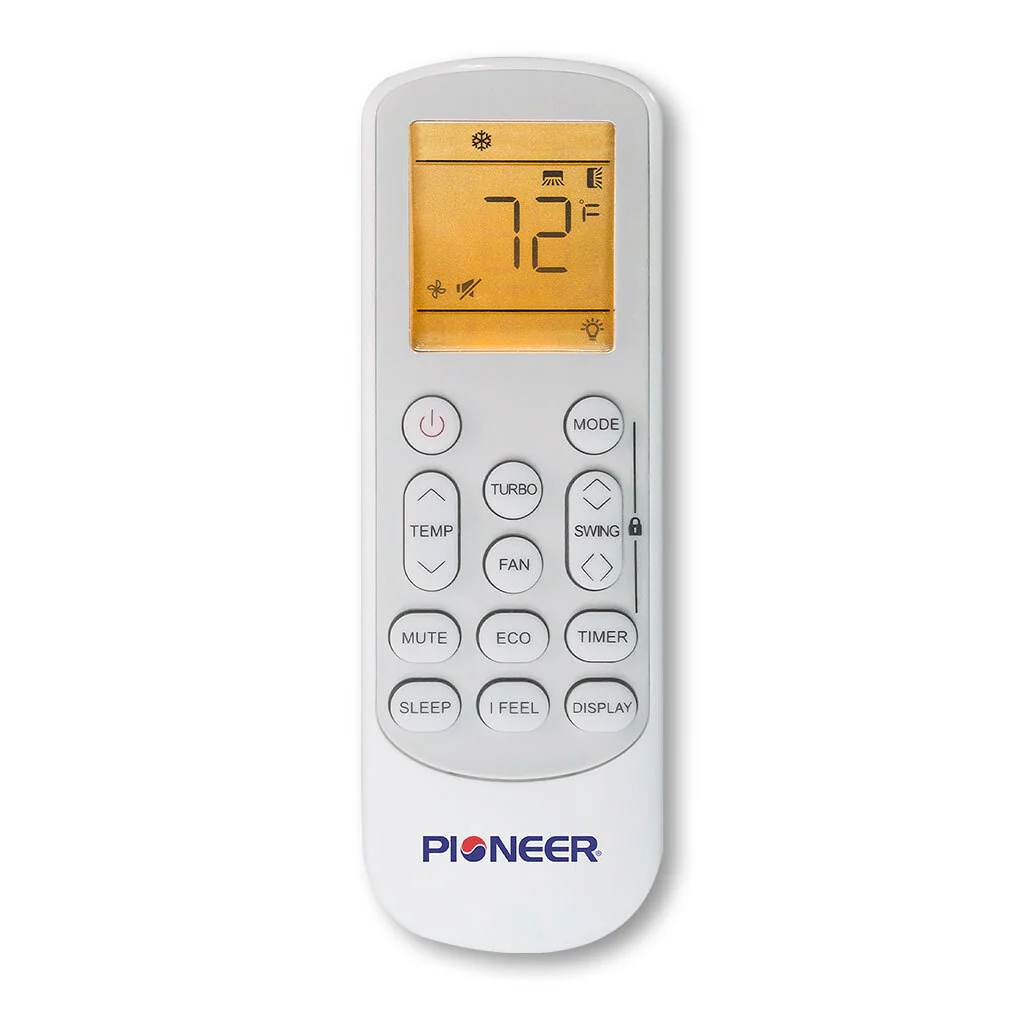

• Wireless Remote Control (with wall holder and batteries)

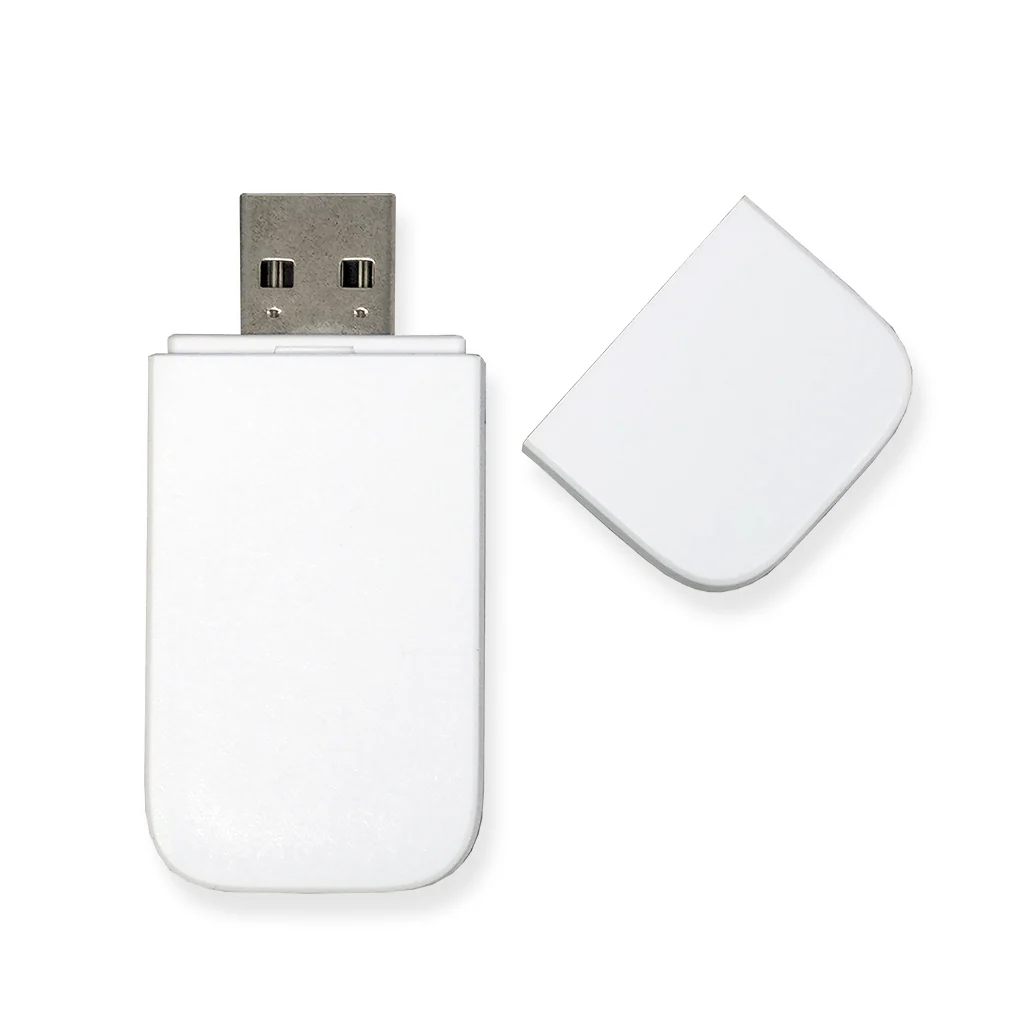

• Internet Control Module

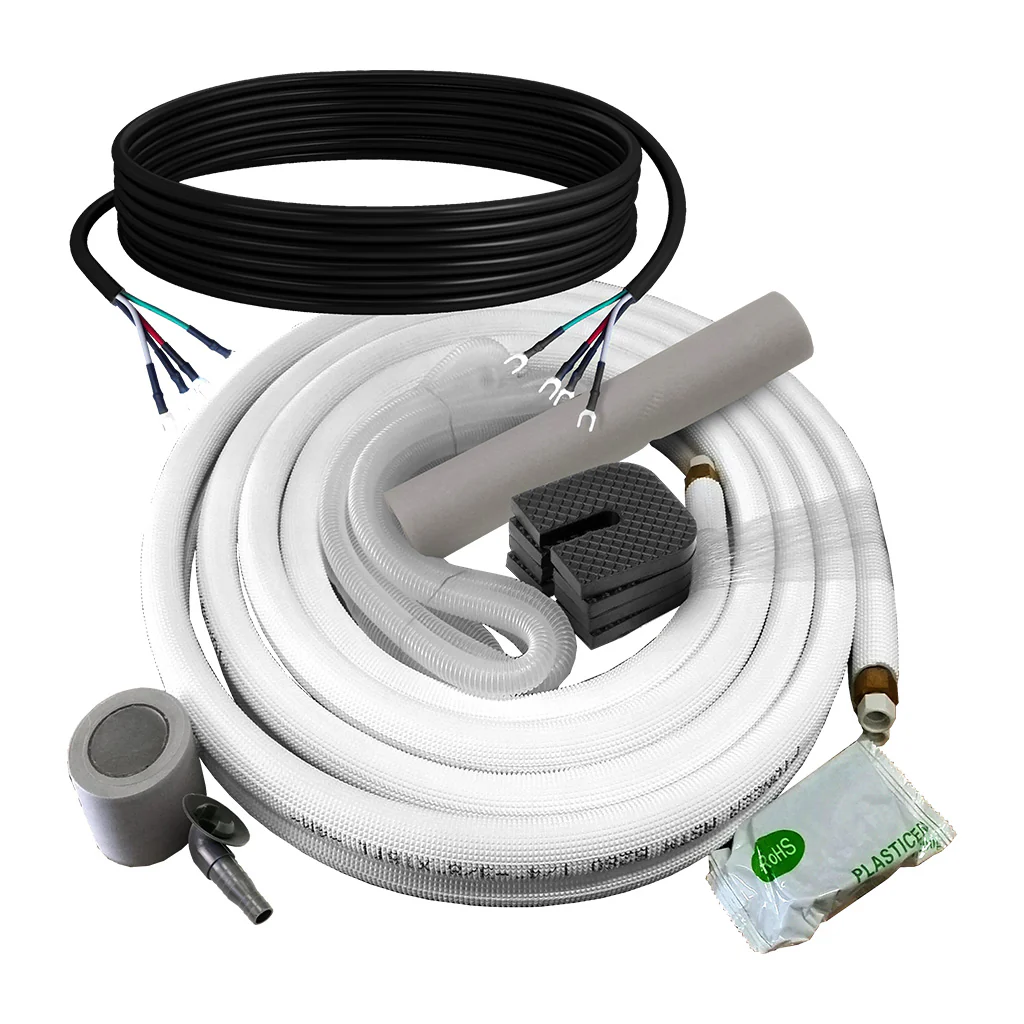

• 16 Ft. Copper Lines
• 16 Ft. Electrical Wire
• 10 Ft. Drain for indoor/outdoor
• Wall Passage Sleeve
• Putty for Wall Hole
• Leak Guard Sealer
• Wrapping Tape
• Installation Manual
• User’s Manual

Our Guarantee

• 5 years Warranty for Parts (Extendable to up to 7 years)
• 5 years for Compressor (Extendable to up to 10 years)

Features

[[FEATURES]]

Technical Information

Performance Data

• Power Supply: 115V, 60Hz, 1Ph
• Cooling Rated Capacity: 12,000 BTU/h (1 Ton)
• Rated Power Input (Cooling): 920W
• Cooling SEER2: 22 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 12,000 BTU/h (1 Ton)
• Rated Power Input (Heating): 910W
• Heating HSPF2: 9.0 BTU/W.h
• Heating C.O.P.: 3.5 W/W
• Refrigerant Type: R410A
• Recommended Application Area: 200~450 Sq.Ft

Indoor Unit Data

• Part Number: WT012ALFI22HLD
• Air Flow (Hi/Med/Lo): 471 / 382 / 294 CFM
• Sound Level (Hi/Med/Lo/Mute): 39/34/29/27 dB(A)
• Net Dimensions (WDH): 36-1/4 x 7-5/8 x 12 Inches
• Carton Dimensions (WDH): 39 x 10-3/8 x 15 Inches
• Net / Gross Weight: 23.1 / 26.5 Lbs

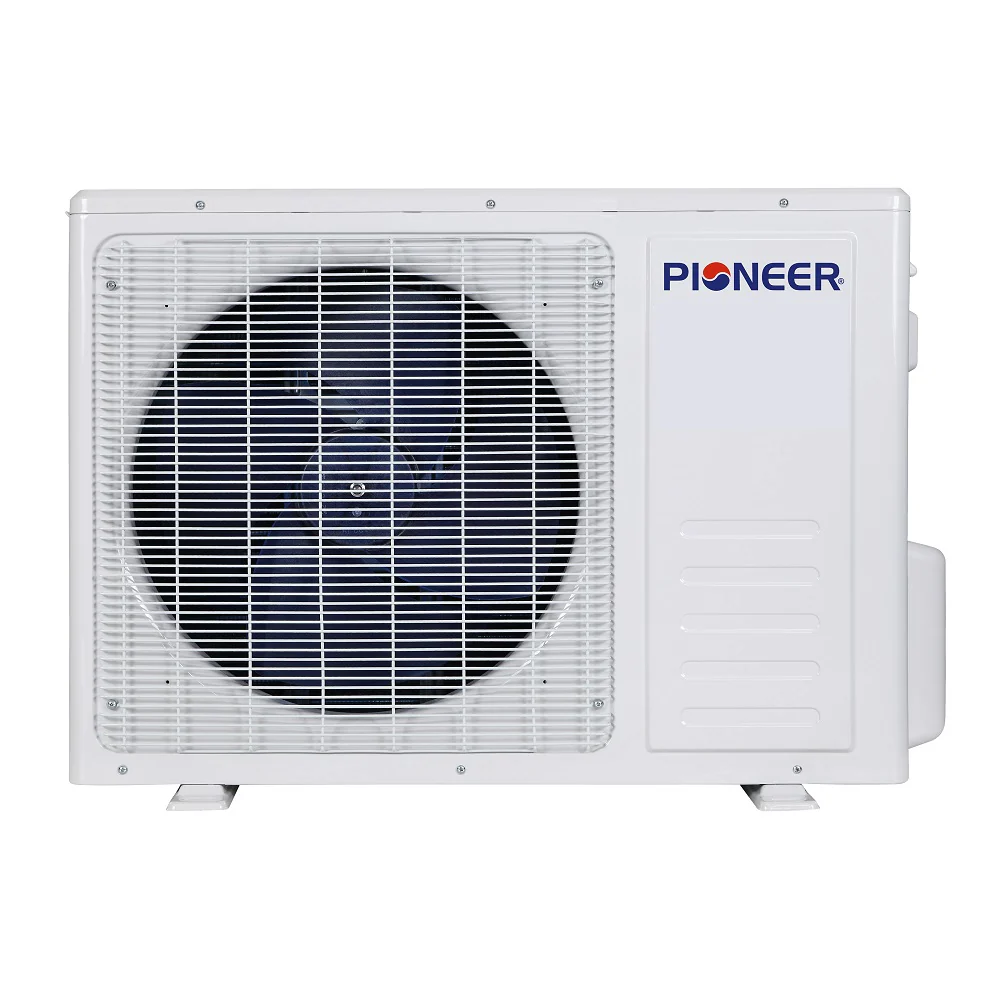

Outdoor Unit Data

• Part Number: YN012ALFI22RPD
• Sound Level: 52 dB(A)
• Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
• Carton Dimensions (WDH): 33-1/2  x 14-1/8 x 24 Inches
• Net / Gross Weight: 60.4 / 65.5 lbs
• Electrical Circuit Size: 20A (single-pole)

Manuals & Documents

• Sales Brochure
• Technical Brochure
• Submittal Sheet
• User & Installation Manual
• Service Manual
• WiFi Pairing Instructions
• Parts Diagrams

• AHRI Certificate
• Energy Guide
