Pioneer® 9,000 BTU 20 SEER 115V SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set

Overview

Summary

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 9,000 BTU/H with 20 SEER/12.5 EER efficiency
• Heating capacity: 9,000 BTU/H with 10 HSPF/2.93 COP efficiency
• Voltage: 110~120V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $58.00
• Heating: $211.00

[[SERIES]]

What's Included

• Indoor Unit

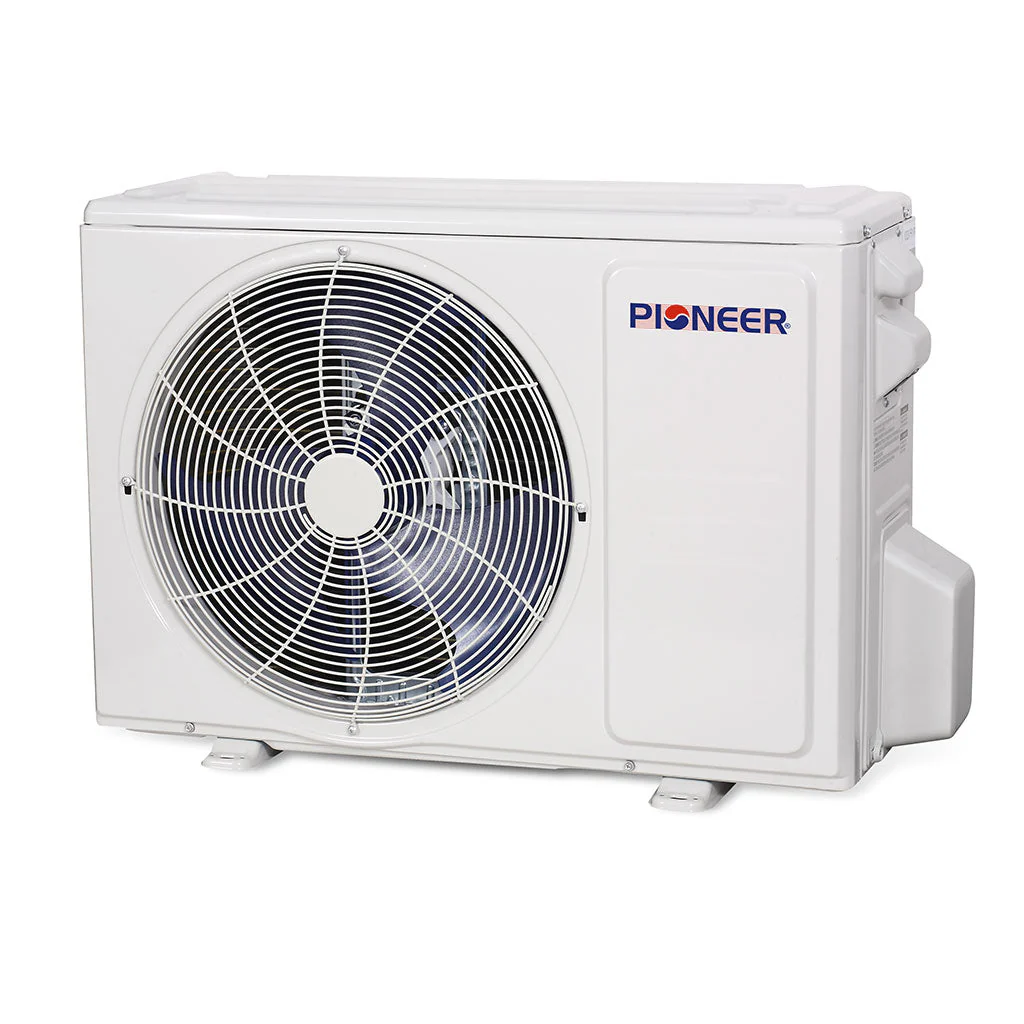

• Outdoor Unit
• Panel

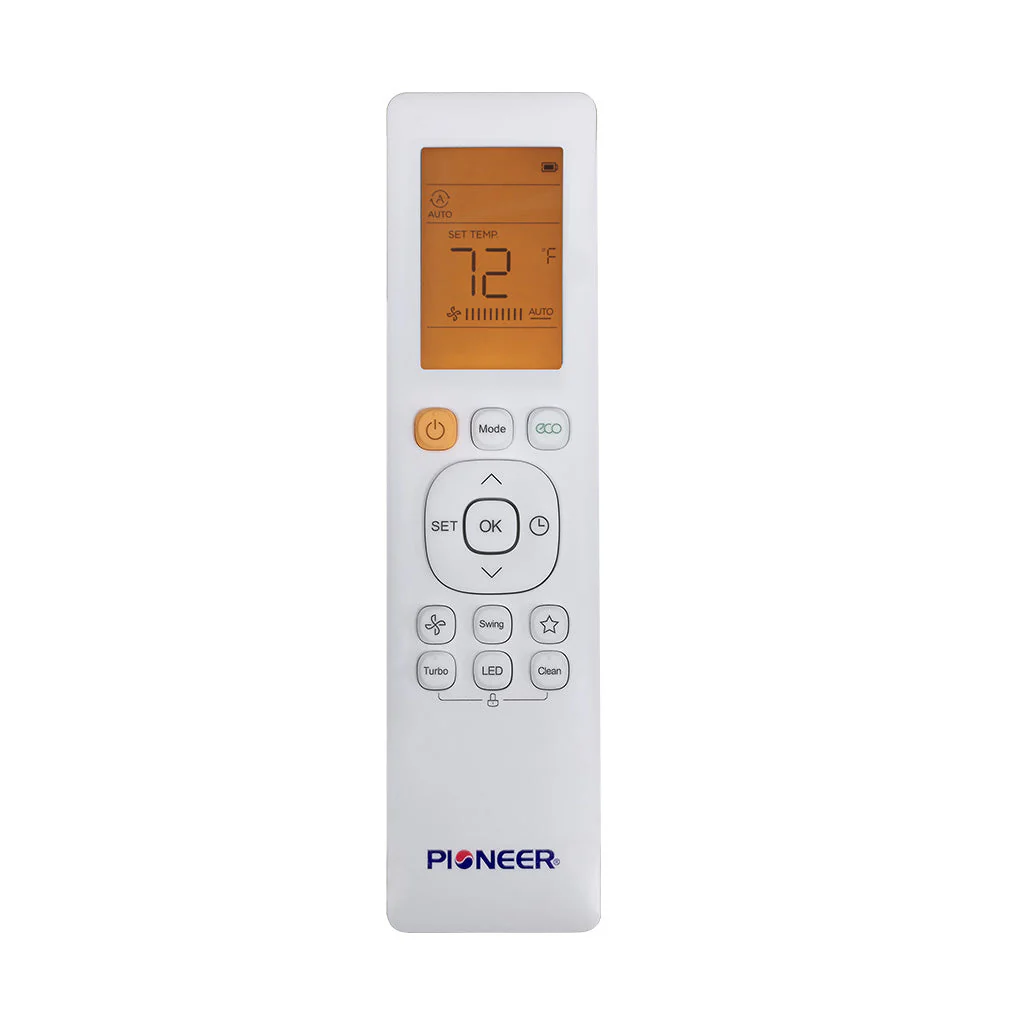

• Wireless Remote Control

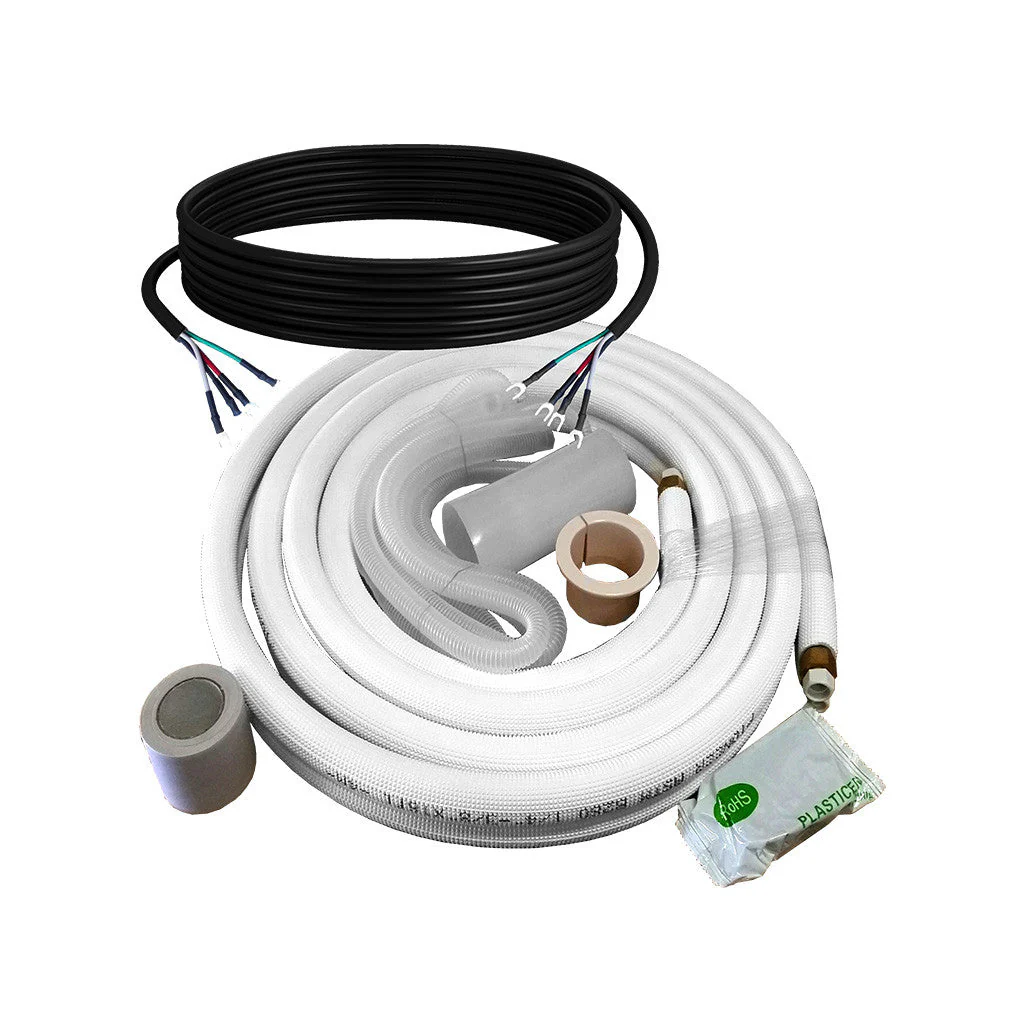

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 110~120V, 60Hz, 1Ph
• Cooling Rated Capacity: 9,000 BTU/h
• Cooling Capacity Range: 2,650~10,300 BTU/h
• Cooling SEER: 20 BTU/w
• Heating Rated Capacity: 10,000 BTU/h
• Heating Capacity Range: 2,700~10,500 BTU/h
• Heating HSPF: 10.0 BTU/w
• Refrigerant Type: R410a
• Suitable Area: 100~350 Sq.F

Indoor Unit Data

• Model: CB009GMFILCFHD
• Air Flow (Hi/Med/Lo): 379 / 309 / 261 CFM
• Sound Level (Hi/Med/Lo): 43.0 / 39.0 / 36.0 dB(A)
• Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
• Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
• Net / Gross Weight: 35 / 41 Lbs

Panel Data

• Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches
• Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
• Net / Gross Weight: 6 / 10 Lbs

Outdoor Unit Data

• Model: YN009AMFI20RPD
• Sound Level: 54.0 dB(A)
• Net Dimensions (WDH): 30"-1/8 x 11"-15/16 x 21"-7/8
• Carton Dimensions (WDH): 35" x 13"-1/4 x 24"
• Net / Gross Weight: 57.75 / 63.5 Lbs

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Installation Manual
• Series Service Manual
• Series Disassembly Guide
• AHRI Certificate
• Energy Guide
