Pioneer® 24,000 BTU Ducted Central Split Inverter+ Air Handler Unit Inside Section 230V

Overview

Summary

Air Handler Unit indoor section of DYR1824GMFI18R set series.

This is not a full system, only the partial section of a complete set!

Highlights

• Compatible with any standard 24V wall thermostat
• Universal match for all AC heat pumps of matching capacity
• Dual electric racks accept 5, 7.5, and 10kW electric heaters

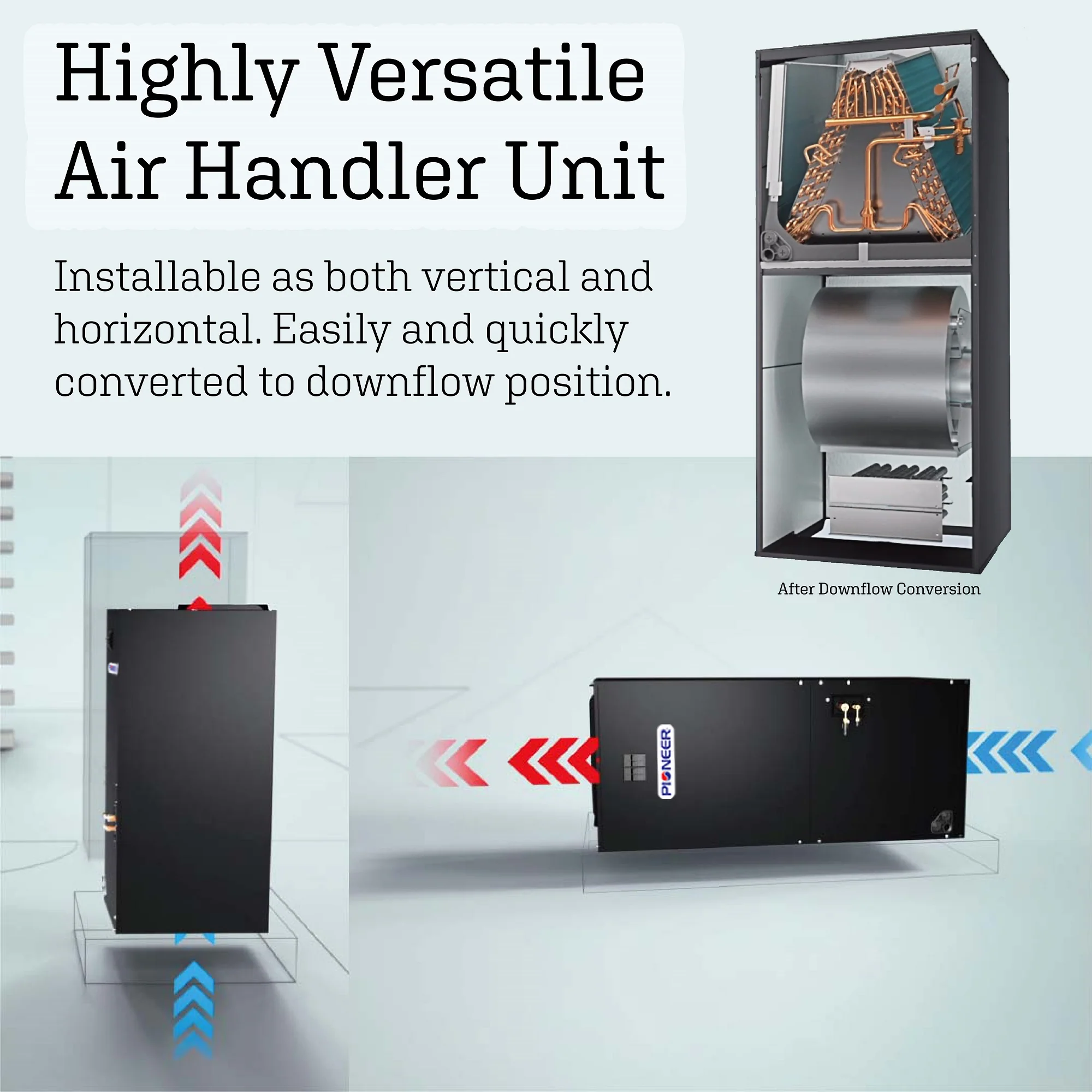

• Multi-position, field convertible (vertical, horizontal, downflow)

Outdoor Unit Data

• Model: DR024GHFD18HT2

• Sound Level: 55 dB(A)
• Throttle Type: TXV
• Net Dimensions (WDH): 19-5/8 x 21-5/8 x 46-1/8 Inches
• Carton Dimensions (WDH): 22-1/2 x 21-5/8 x 49-5/8 Inches
• Net / Gross Weight: 135.5 / 158.6 Lbs

Manuals & Downloads

• Series Technical Brochure
• Indoor Section Installation Manual
• Indoor Section Service Manual
