Pioneer® 18,000 BTU 21.8 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 18,000 BTU/H with 21.8 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 19,000 BTU/H with 10.7 HSPF2 / 3.30 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph

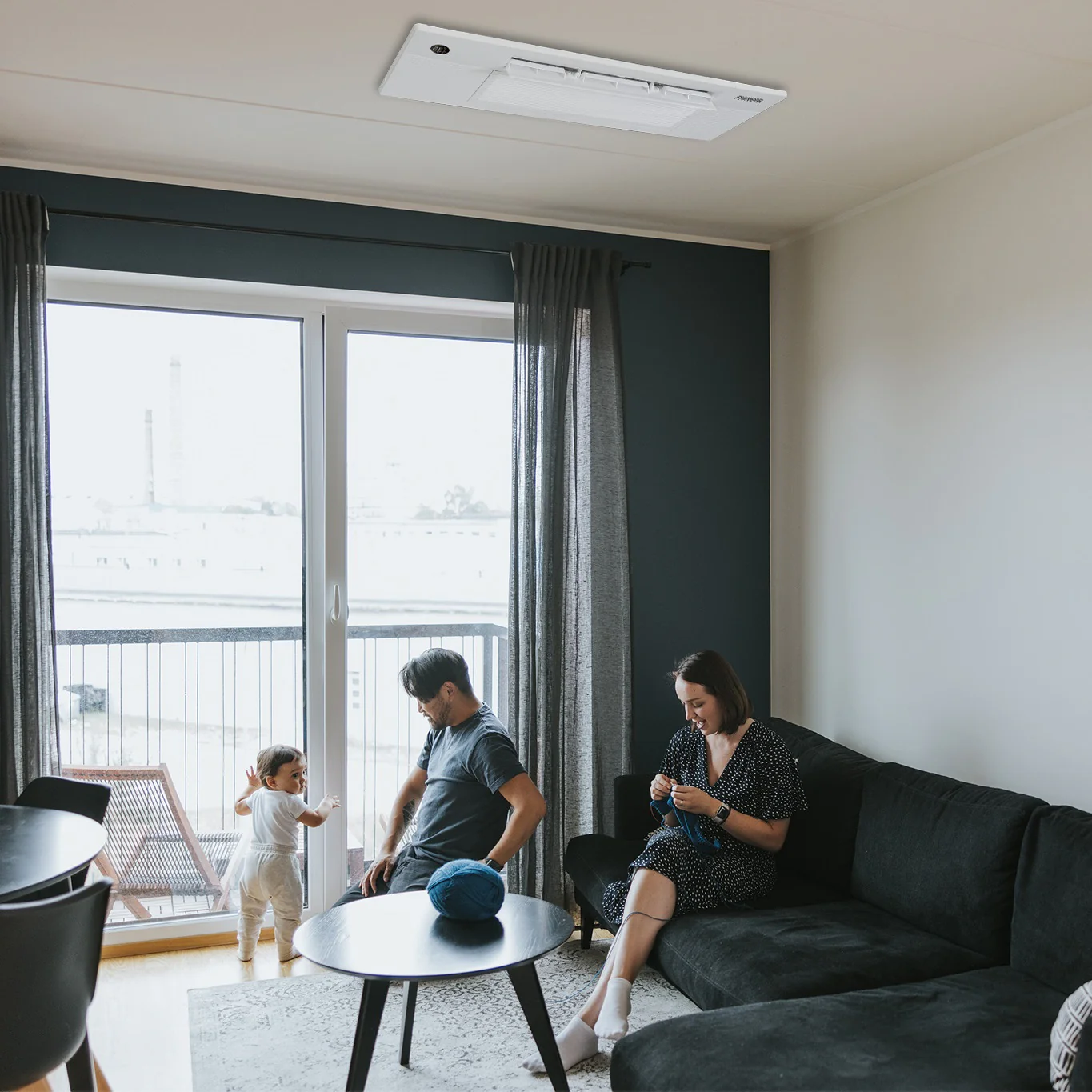

• One-Way Ceiling Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit

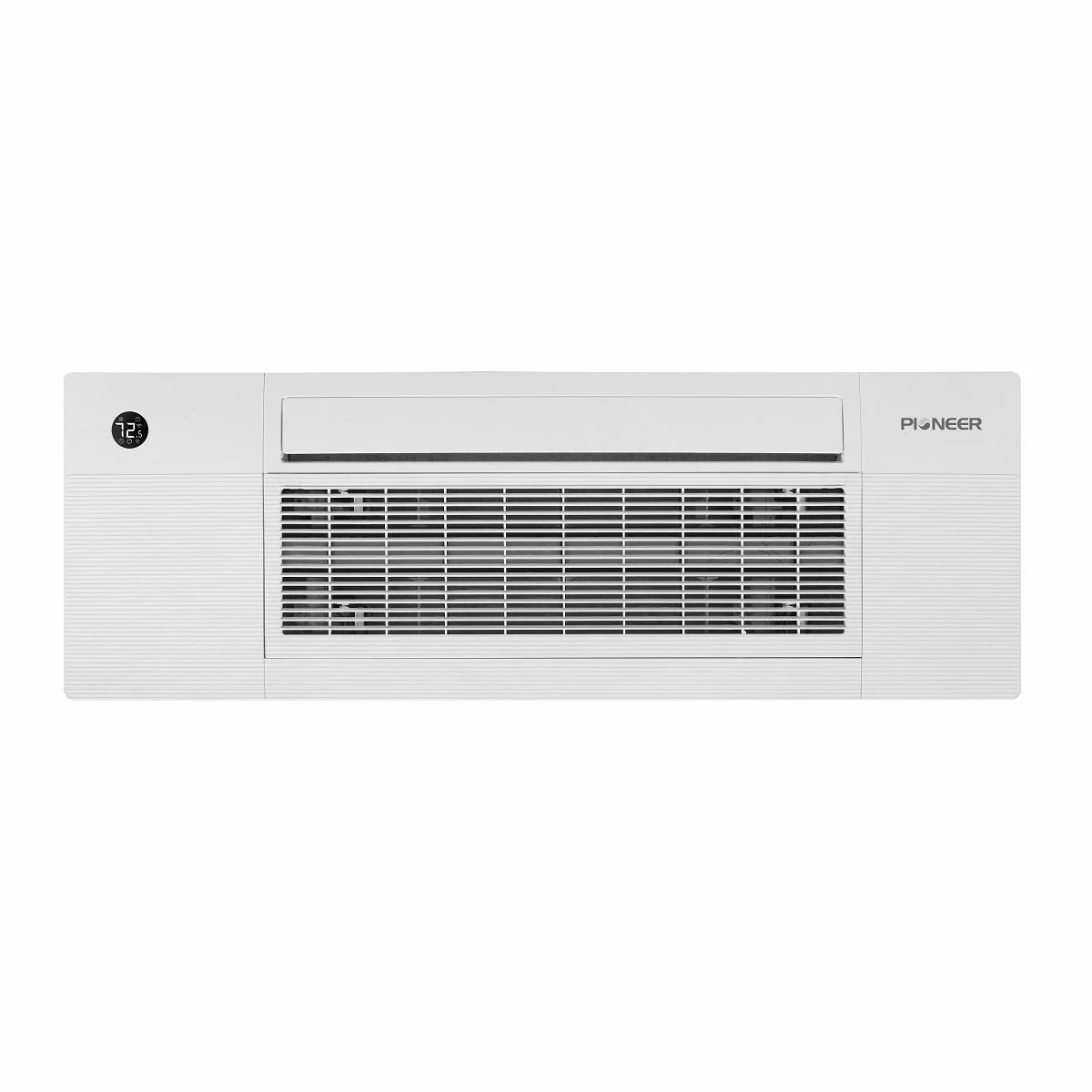

• Decorative Panel

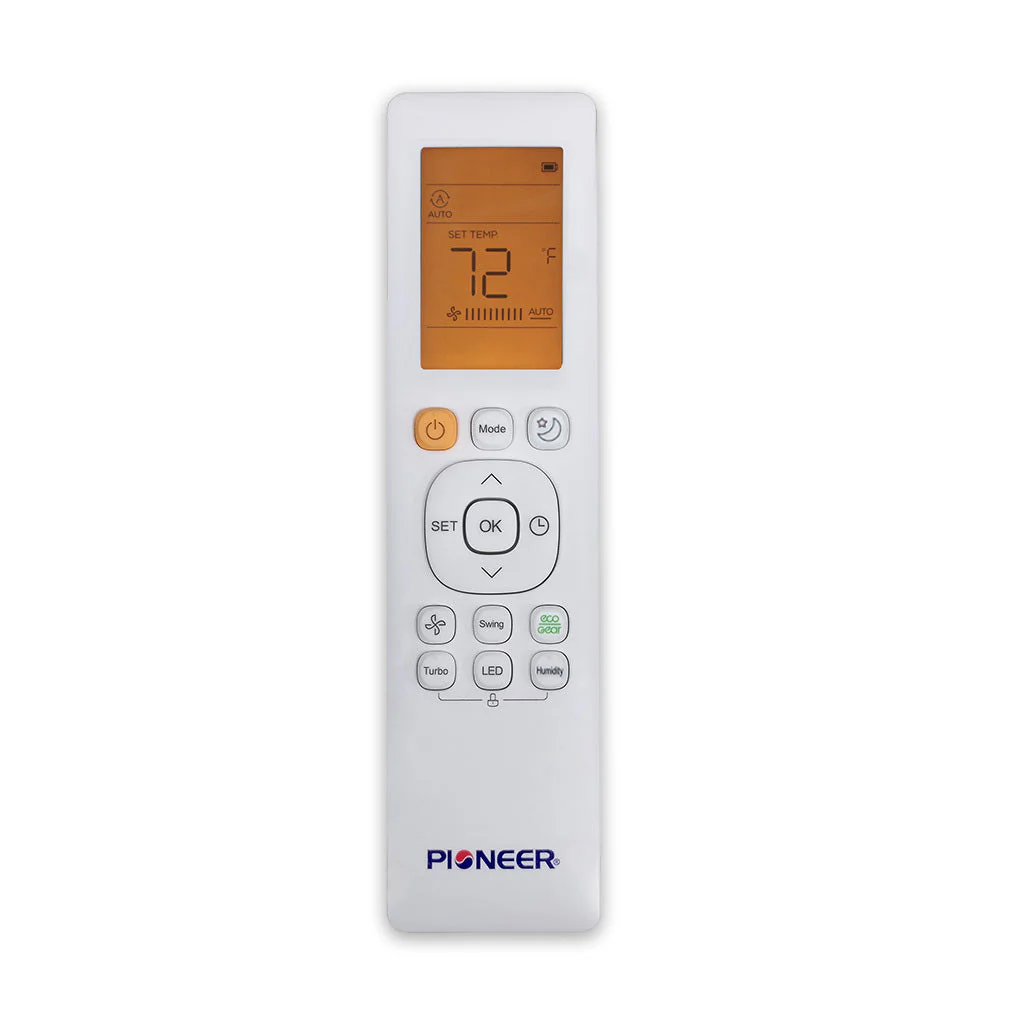

• Wireless Remote Control

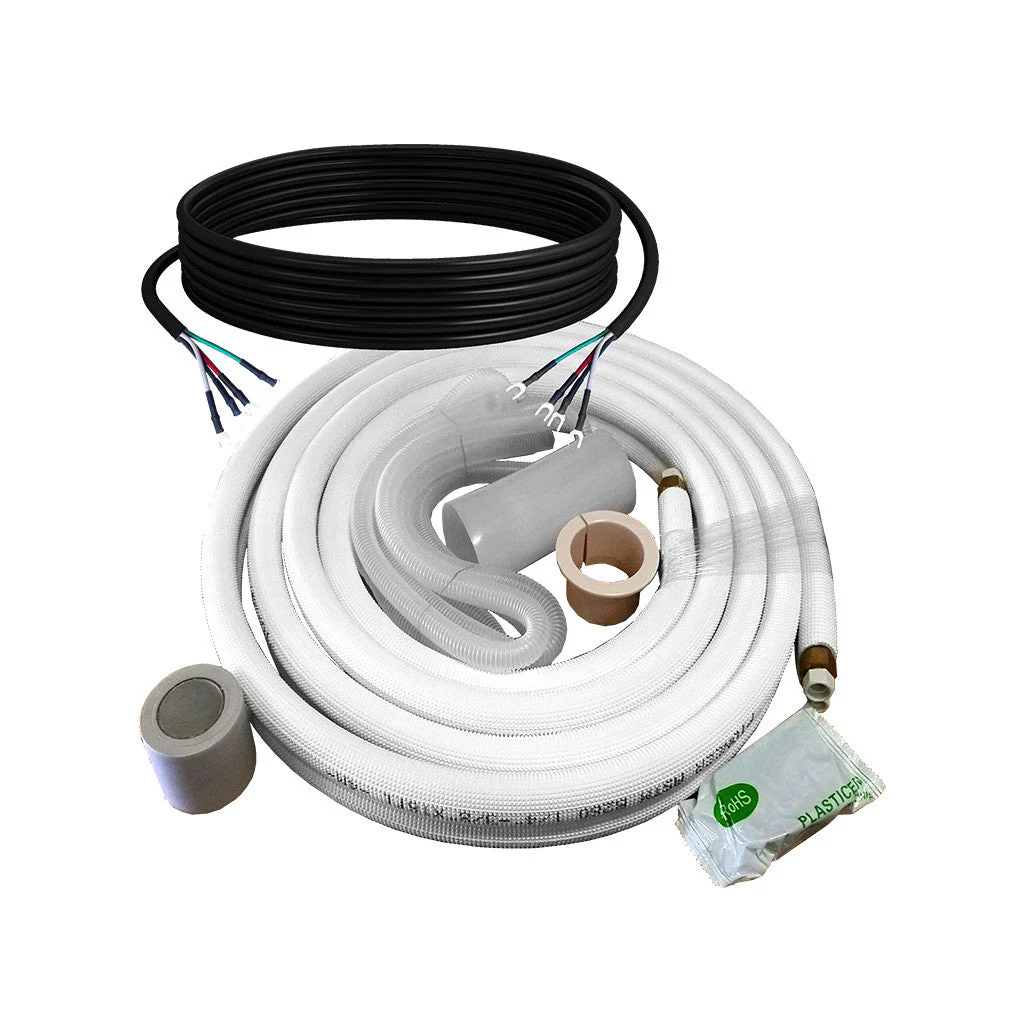

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 18,000 BTU/h
• Cooling Capacity Range: 3,200~18,100 BTU/h
• Cooling SEER2: 21.8 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 19,000 BTU/h
• Heating Capacity Range: 5,300~21,500 BTU/h
• Heating HSPF2: 10.7 BTU/W.h
• Heating C.O.P.2: 3.30 W/W
• Refrigerant Type: R410a
• Suitable Area: 400~650 Sq.F

Indoor Unit Data

• Model: CK018GMFILCFHD
• Air Flow (Turbo/Hi/Med/Lo): 680 / 598 / 510 / 352 CFM
• Sound Level (Hi/Med/Lo): 44 / 41 / 34 dB(A)
• Net Dimensions (WDH): 13-1/4 x 50-1/4 x 9 Inches
• Carton Dimensions (WDH): 22-1/2 x 57-5/8 x 22-5/8 Inches
• Net / Carton Weight: 45.2 / 82.9 Lbs

Panel Data

• Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
• Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
• Panel Net / Gross Weight: 24 / 29 Lbs

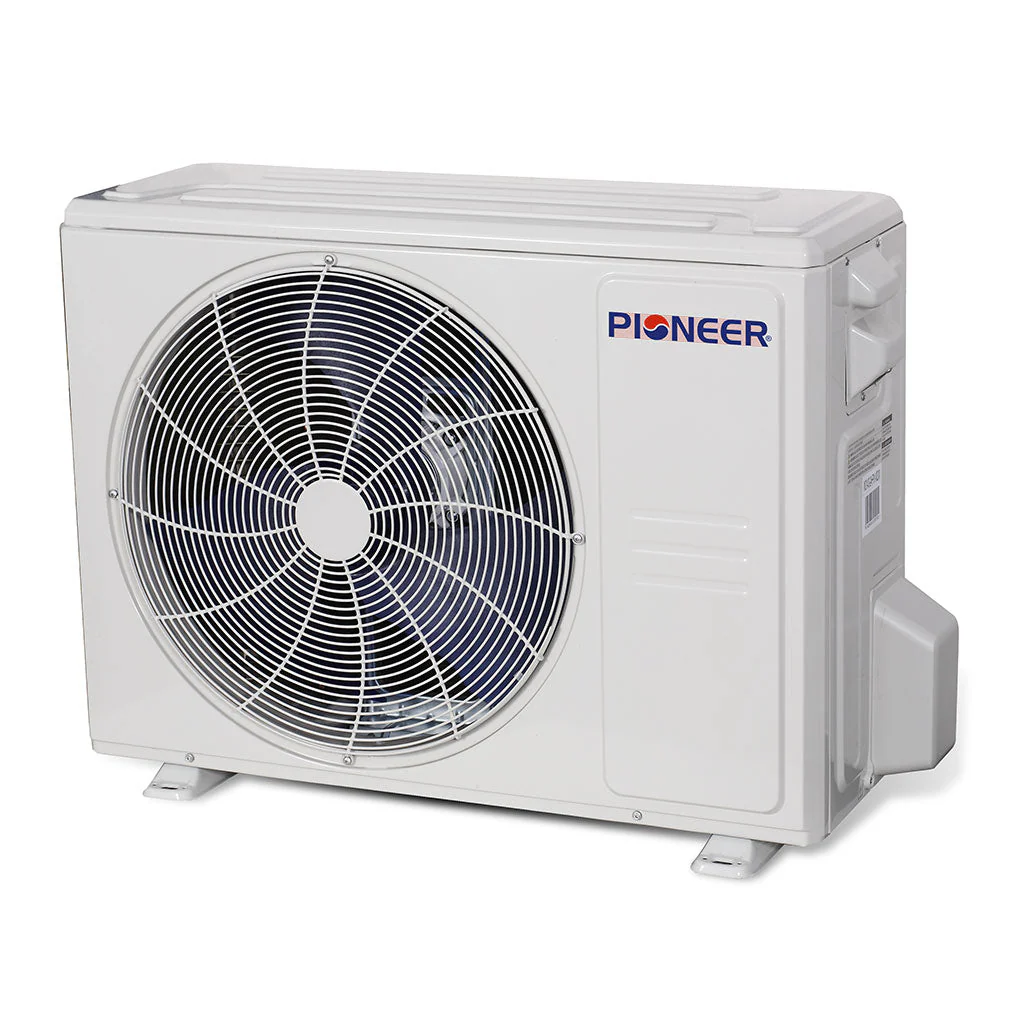

Outdoor Unit Data

• Model: YN018GMFI22RPE
• Sound Level: 58 dB(A)
• Net Dimensions (WDH): 35 x 13.5 x 26.5 Inches
• Carton Dimensions (WDH): 39.2 x 15.7 x 29.1 Inches
• Net / Gross Weight: 94.4 / 101 Lbs
• Breaker Needed: 20A (double-pole)

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Installation Manual
• Series Service Manual
• Series Disassembly Guide
• CYK018GMFILCAD Submittal Sheet
• AHRI Certificate
• Energy Guide
