Pioneer® 12,000 BTU 22 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 12,000 BTU/H with 22 SEER2 / 12.6 EER2 efficiency
• Heating capacity: 12,500 BTU/H with 9.8 HSPF2 / 3.20 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• One-Way Ceiling Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified

[[SERIES]]

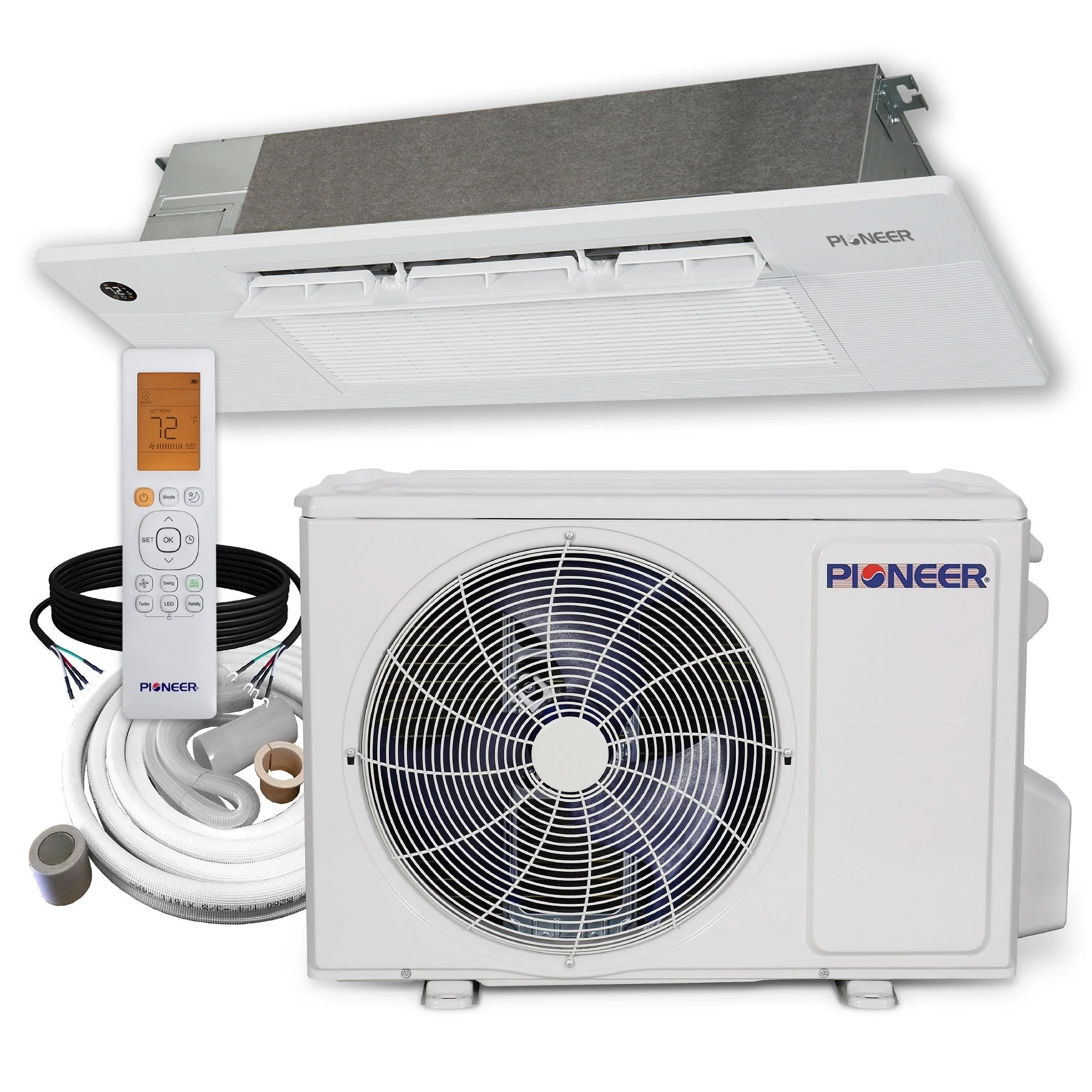

What's Included

• Indoor Unit
• Outdoor Unit
• Decorative Panel

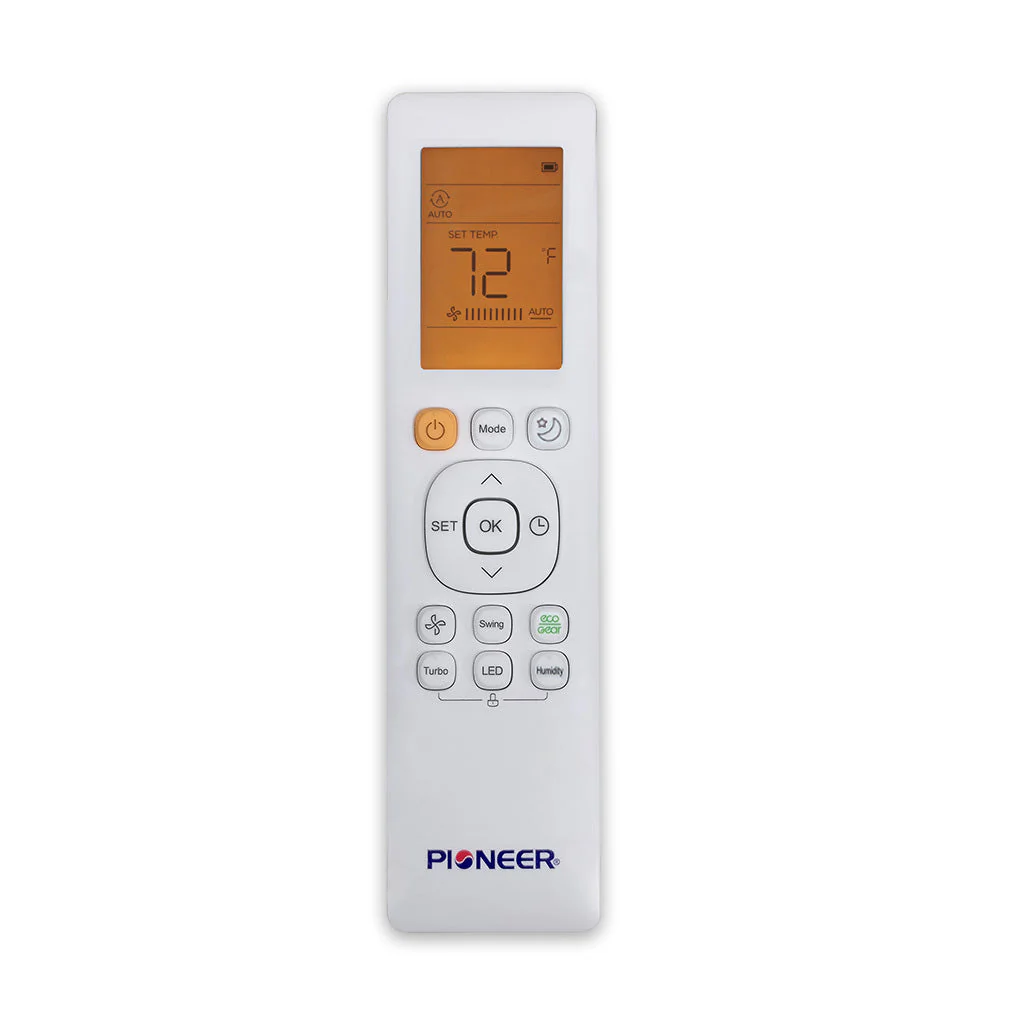

• Wireless Remote Control

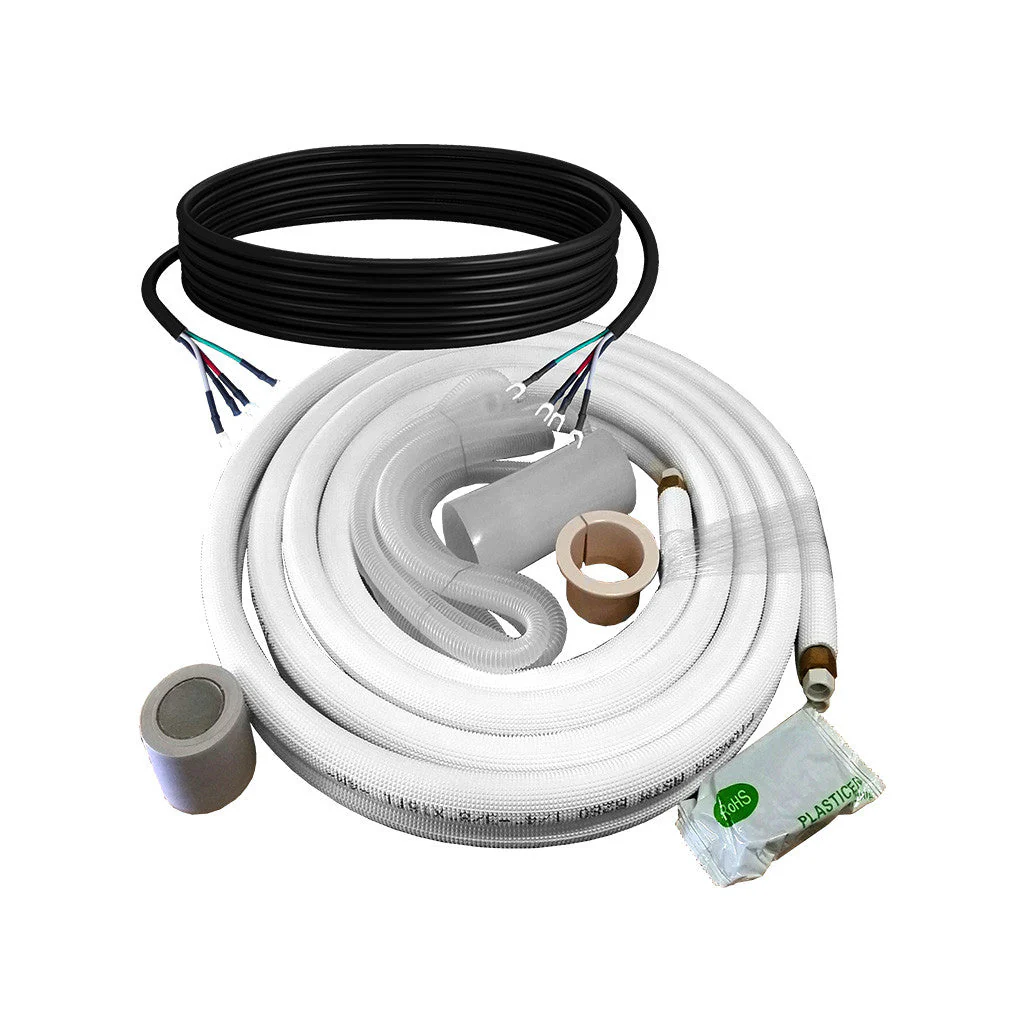

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 12,000 BTU/h
• Cooling Capacity Range: 4,000~13,200 BTU/h
• Cooling SEER2: 22.0 BTU/W.h
• Cooling EER2: 12.6 BTU/W.h
• Heating Rated Capacity: 12,500 BTU/h
• Heating Capacity Range: 3,700~12,800 BTU/h
• Heating HSPF2: 9.8 BTU/W.h
• Heating C.O.P.2: 3.20 W/W
• Refrigerant Type: R410a
• Suitable Area: 200~450 Sq.F

Indoor Unit Data

• Model: CK012GMFILCFHD
• Air Flow (Turbo/Hi/Med/Lo): 600 / 530 / 480 / 420 CFM
• Sound Level (Hi/Med/Lo): 40.5 / 38.5 / 34.5 dB(A)
• Net Dimensions (WDH): 13-1/4 x 50-1/4 x 9 Inches
• Carton Dimensions (WDH): 22-1/2 x 57-5/8 x 22-5/8 Inches
• Net / Carton Weight: 45.2 / 82.9 Lbs

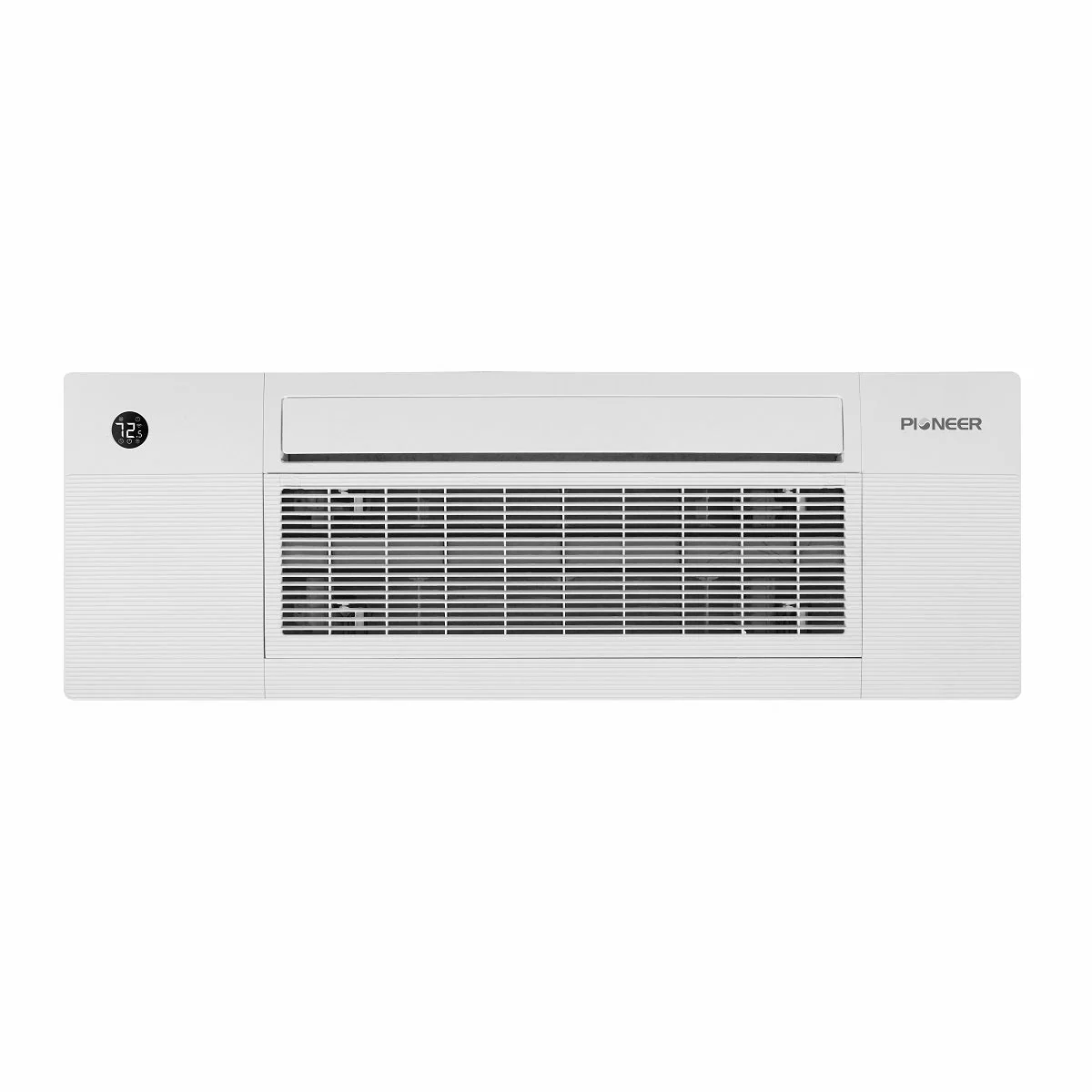

Panel Data

• Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
• Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
• Panel Net / Gross Weight: 24 / 29 Lbs

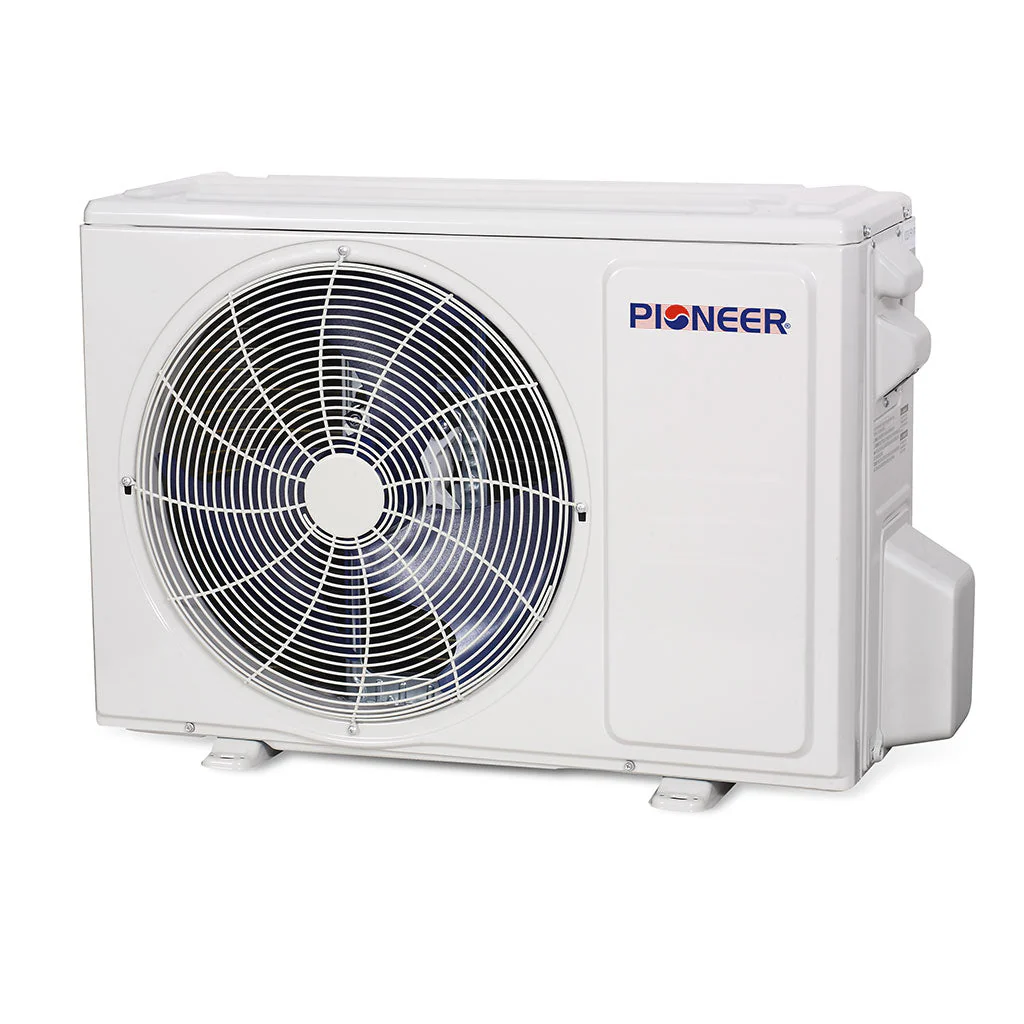

Outdoor Unit Data

• Model: YN012GMFI22RPE
• Sound Level: 54.5 dB(A)
• Net Dimensions (WDH): 30.3 x 11.8 x 21.8 Inches
• Carton Dimensions (WDH): 35.3 x 13.6 x 14.6 Inches
• Net / Gross Weight: 64 / 69 Lbs
• Breaker Needed: 15A (double-pole)
