Pioneer® 9,000 BTU 21.7 SEER2 Ductless Mini-Split Inverter+ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

• High Efficiency Quantum Series Inverter+ ductless mini split heat pump system

• Cooling capacity: 9,000 BTU/H with 21.7 SEER2 / 12.6 EER2 efficiency
• Heating capacity: 10,000 BTU/H with 9.1 HSPF2 / 3.29 COP2 efficiency
• Voltage: 208~230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

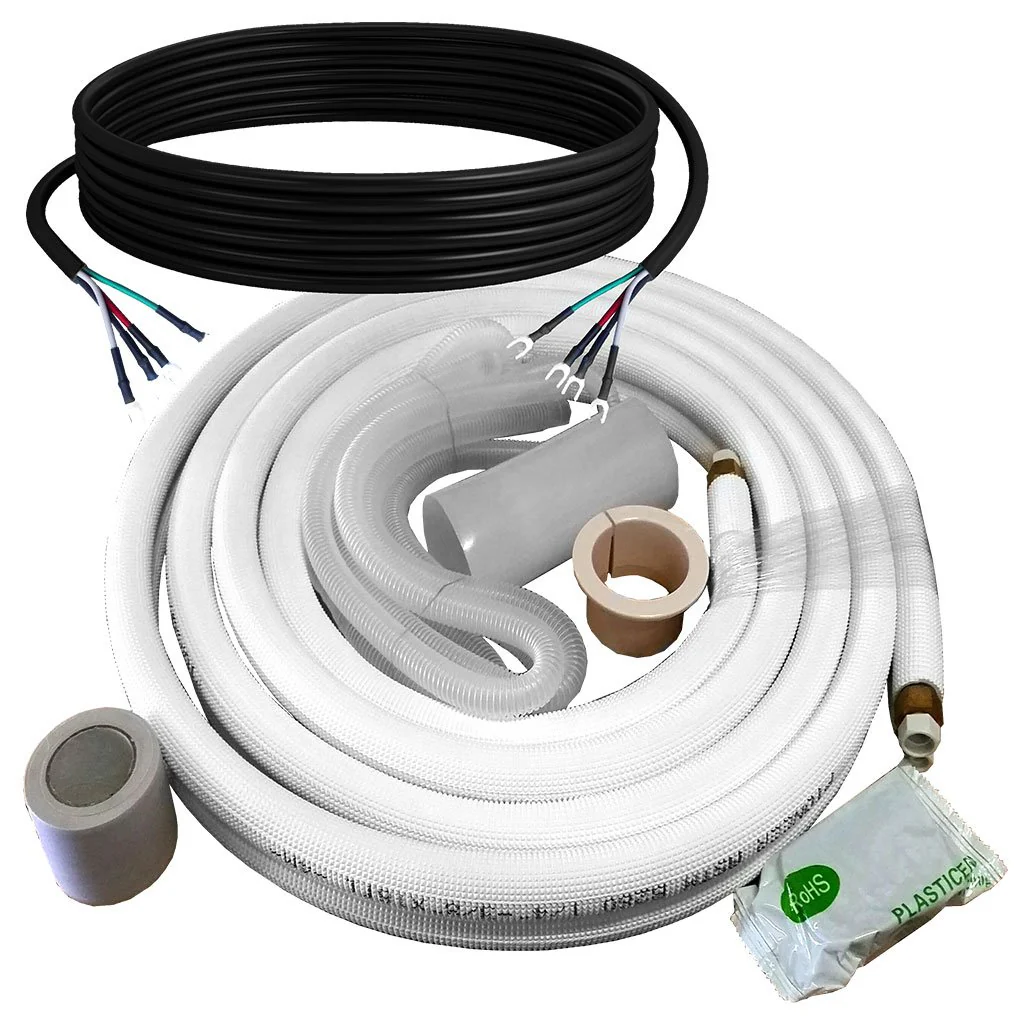

• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $55.00
• Heating: $211.00

[[SERIES]]

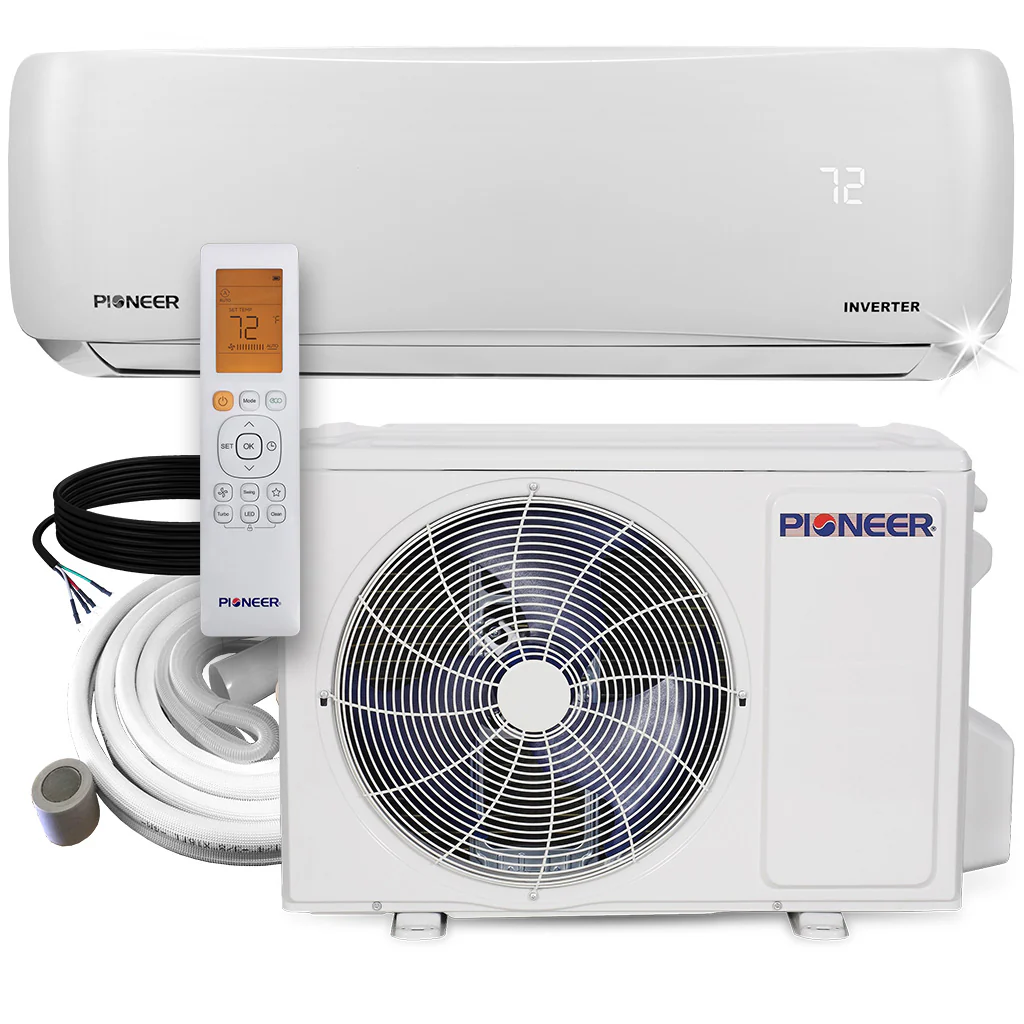

What's Included

• Indoor Unit
• Outdoor Unit

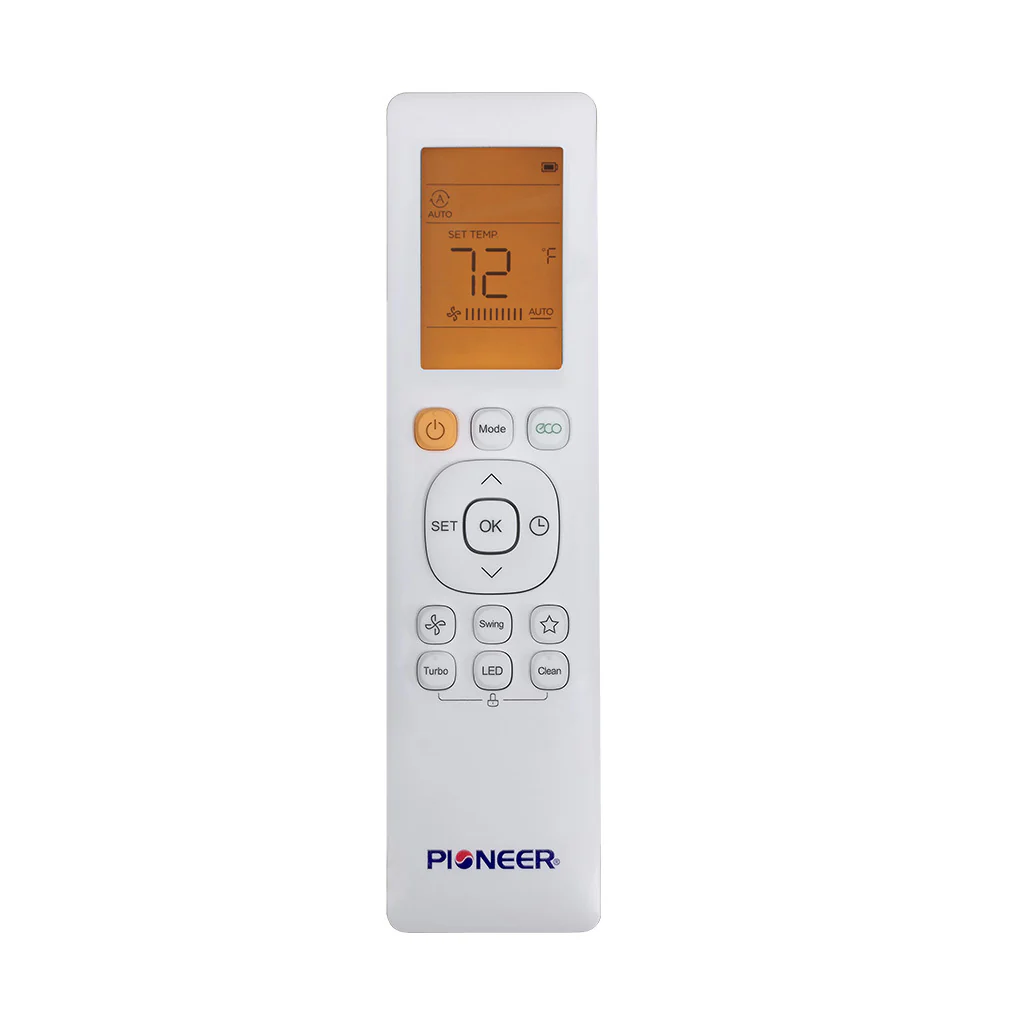

• Wireless Remote Control
• Various Ductless Mini Split Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 9,000 BTU/h
• Cooling Capacity Range: 2,900~10,200 BTU/h
• Cooling SEER2: 21.7 BTU/W.h
• Cooling EER2: 12.6 BTU/W.h
• Heating Rated Capacity: 10,000 BTU/h
• Heating Capacity Range: 2,400~10,900 BTU/h
• Heating HSPF2 (Region IV/V): 9.1 / 6.9 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.29 / 1.96 W/W
• Refrigerant Type: R410A
• Suitable Area: 100~350 Sq.F

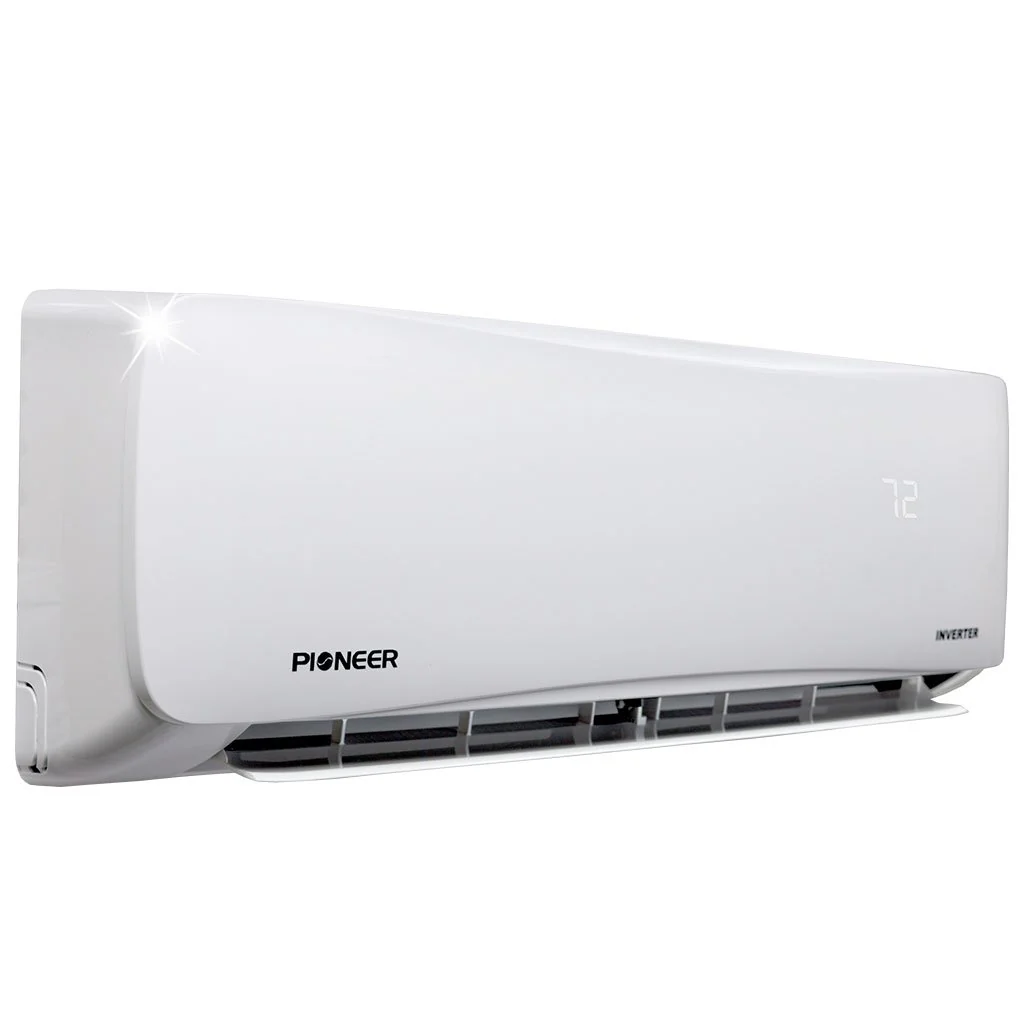

Indoor Unit Data

• Model Number: WS009GMFI20HLD
• Air Flow (Hi/Med/Lo): 259 / 193 / 136 CFM
• Sound Level (Hi/Med/Lo): 40.5 / 30.5 / 24 dB(A)
• Net Dimensions (WDH): 28.5 x 7.3 x 11.4 Inches
• Carton Dimensions (WDH): 31.2 x 10.6 x 14.75 Inches
• Net / Gross Weight: 17 / 22.3 lbs

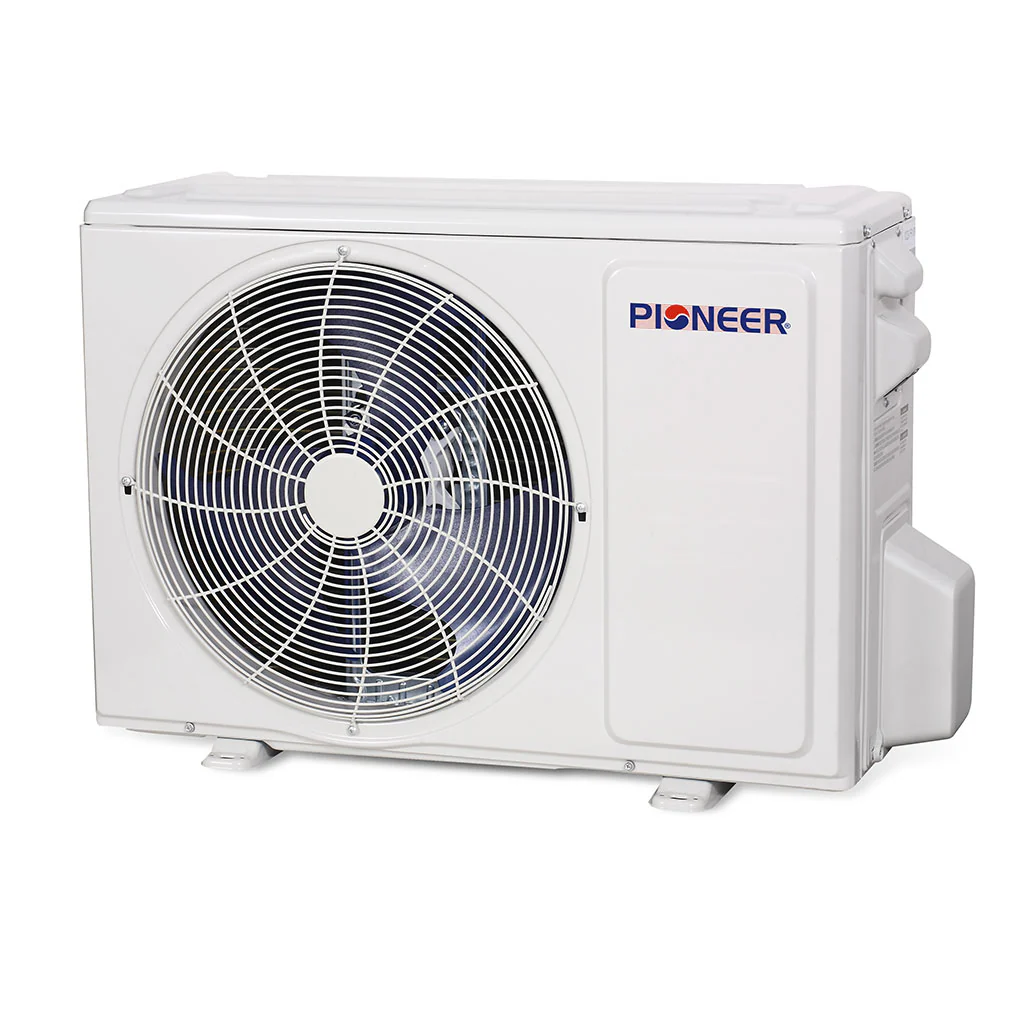

Outdoor Unit Data

• Model Number: YN009GMFI20RPD
• Sound Level: 53 dB(A)
• Breaker Needed: 15A (double-pole)
• Net Dimensions (WDH): 31.3 x 10.6 x 21.8 Inches
• Carton Dimensions (WDH): 34.8 x 13.2 x 24 Inches
• Net / Gross Weight: 55.1 / 60.9 lbs

Manuals & Downloads

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Disassembly Guide
• AHRI Certificate
• Energy Guide
