Pioneer® 48,000 BTU 18.5 SEER2 8-Way Slim Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 48,000 BTU/H with 18.5 SEER2 / 9.5 EER2 efficiency
• Heating capacity: 50,000 BTU/H with 9.8 HSPF2 / 3.1 COP2 efficiency
• Voltage: 208~230V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

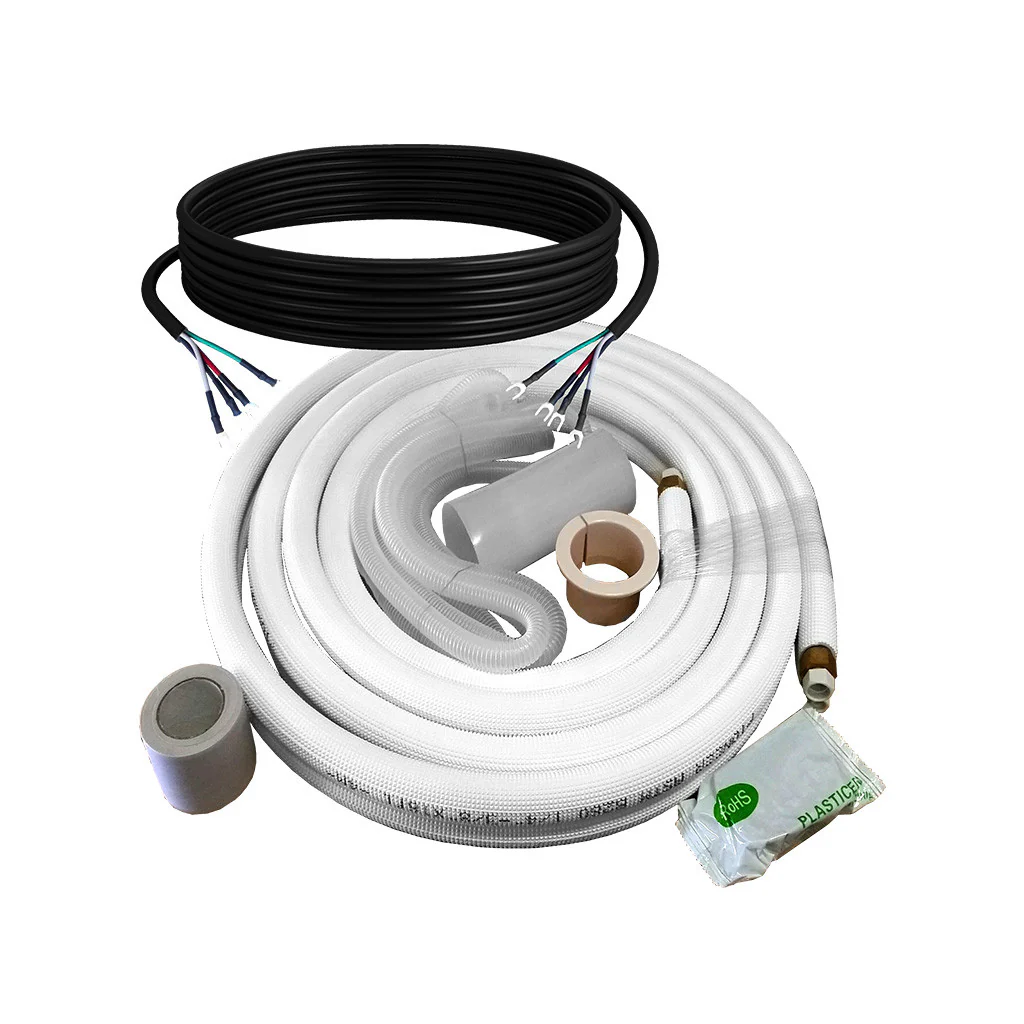

• Customizable length copper line set with flare connections
• Energy-Star Cold-Climate Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $356.00
• Heating: $919.00

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit
• Panel

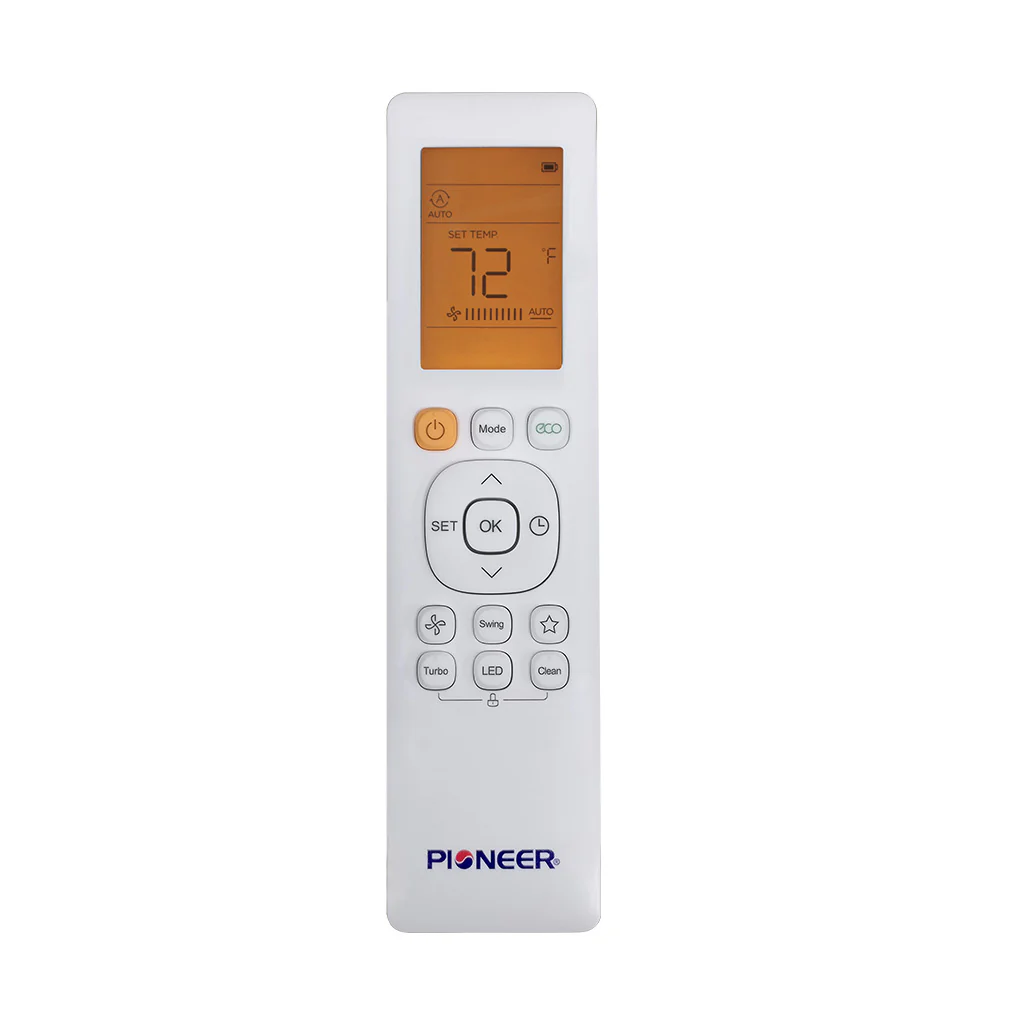

• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 48,000 BTU/h
• Cooling Capacity Range: 16,600~48,000 BTU/h
• Cooling SEER2: 18.5 BTU/W.h
• Cooling EER2: 9.5 BTU/W.h
• Heating Rated Capacity: 50,000 BTU/h
• Heating Capacity Range: 11,900~52,000 BTU/h
• Heating HSPF2: 9.8 BTU/W.h
• Heating C.O.P.2: 3.1 W/W
• Refrigerant Type: R410a
• Suitable Area: 1,350~1,800 Sq.F

Indoor Unit Data

• Model: CB048GMFILDFHE
• Air Flow (Hi/Med/Lo): 1,171 / 1,059 / 935 CFM
• Sound Level (Hi/Med/Lo): 55.0 / 53.0 / 50.0 dB(A)
• Net Dimensions (WDH): 32"-5/8 x 32"-5/8 x 11"-3/8 Inches
• Carton Dimensions (WDH): 35"-7/8 x 35"-7/8 x 13" Inches
• Net / Gross Weight: 64.6 / 74.1 Lbs

Panel Data

• Net Dimensions (WDH): 37"-5/8 x 37"-5/8 x 2"-1/4 Inches
• Carton Dimensions (WDH): 40"-3/4 x 40"-3/4 x 3"-1/2 Inches
• Net / Gross Weight: 13.2 / 19.8 Lbs

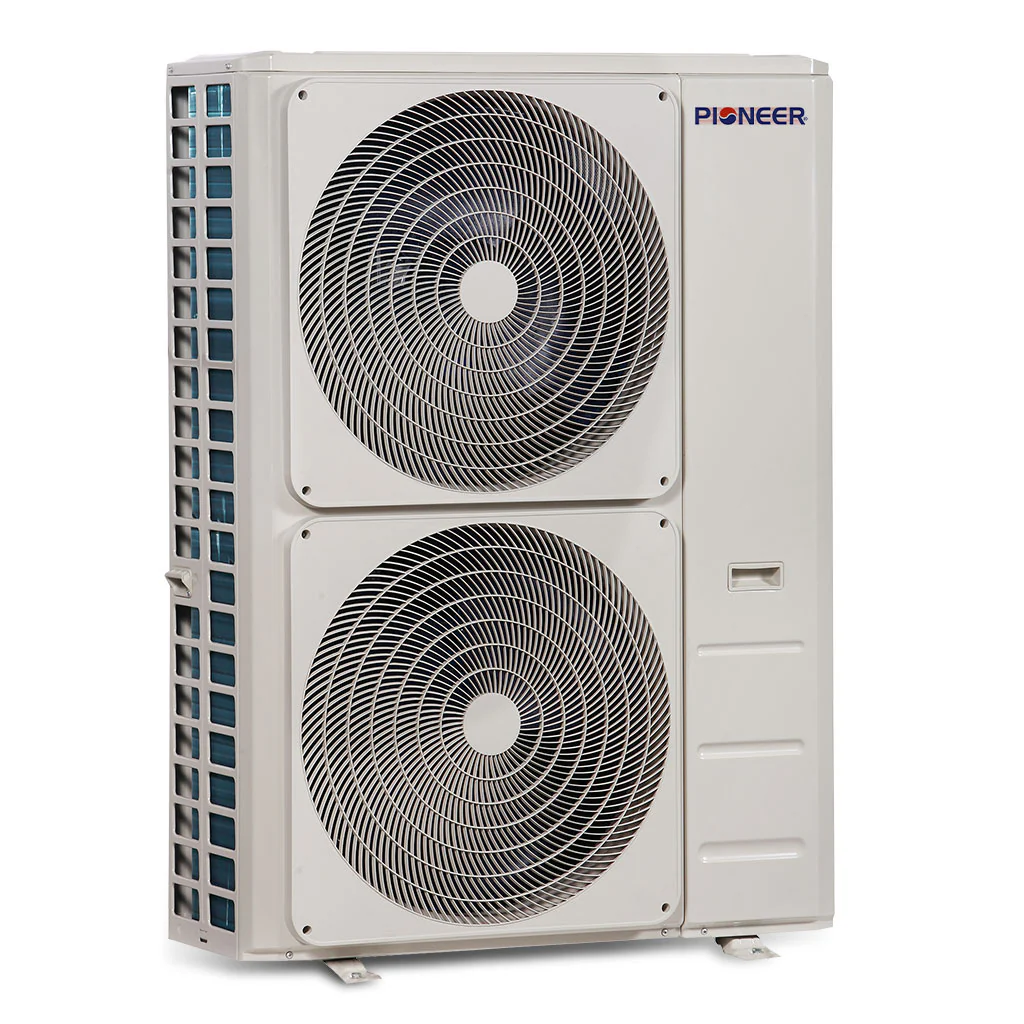

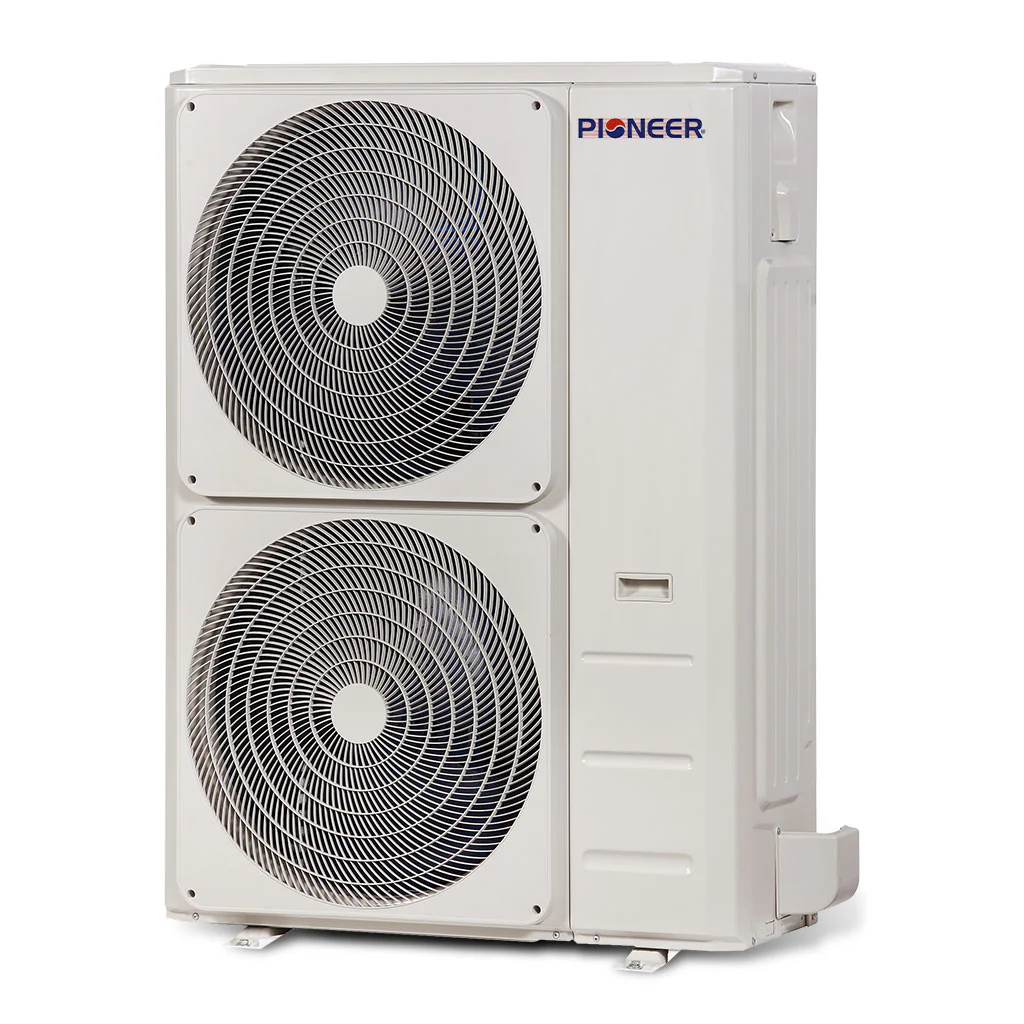

Outdoor Unit Data

• Model: YN048GMFI18RUE
• Sound Level: 65.0 dB(A)
• Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2 Inches
• Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 58"-1/2 Inches
• Net / Gross Weight: 219.1 / 249.1 Lbs
• Breaker Needed: 40A (double-pole)

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Installation Manual
• Series Service Manual
• CYB048GMFILCBD Submittal Sheet
• AHRI Certificate
• Energy Guide
