Pioneer® 36,000 BTU 19 SEER2 Floor/Ceiling Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

• Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
• Cooling capacity: 36,000 BTU/H with 19.0 SEER2 / 8.5 EER2 efficiency
• Heating capacity: 38,000 BTU/H with 9.0 HSPF / 2.68 C.O.P.2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Floor/Ceiling Flex Mount Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

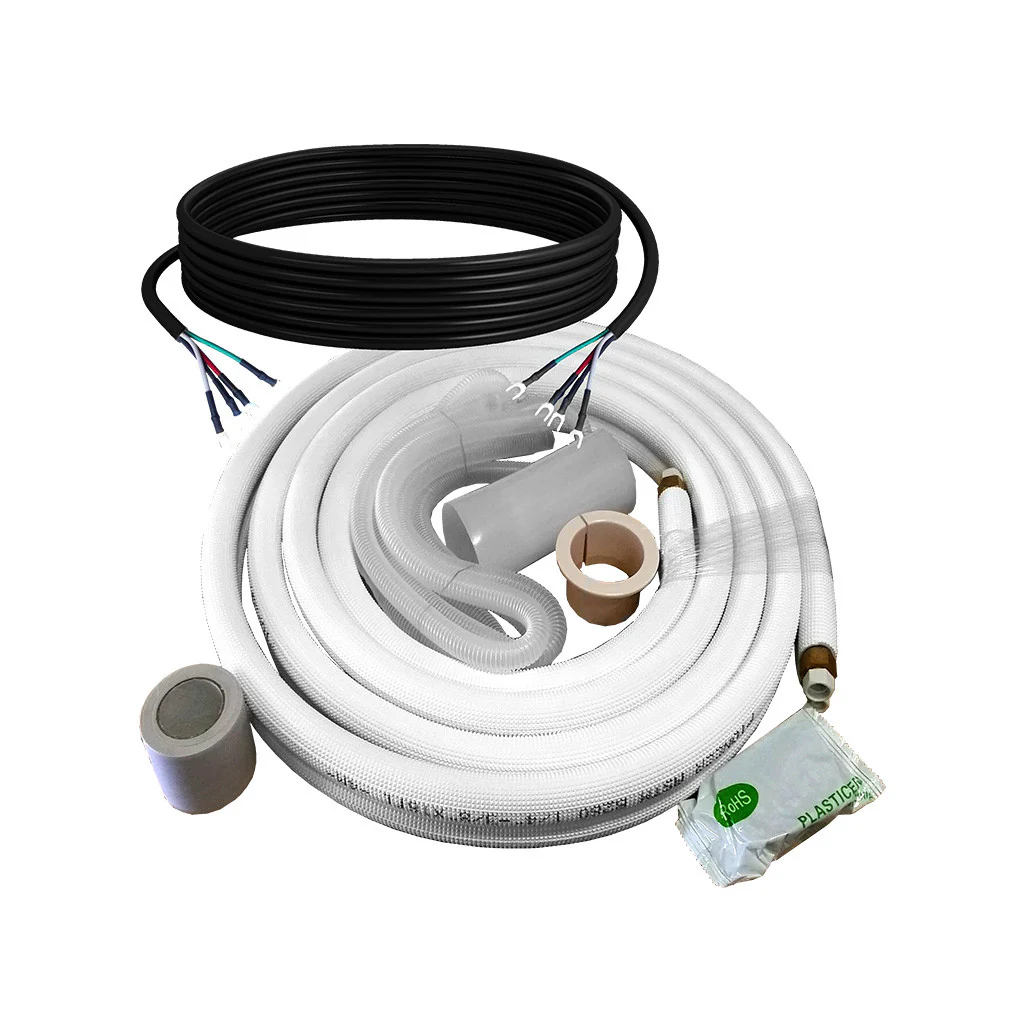

• Customizable length copper line set with flare connections
• AHRI Estimated Annual Operating Costs:
• Cooling: $280.00
• Heating: $803.00

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit

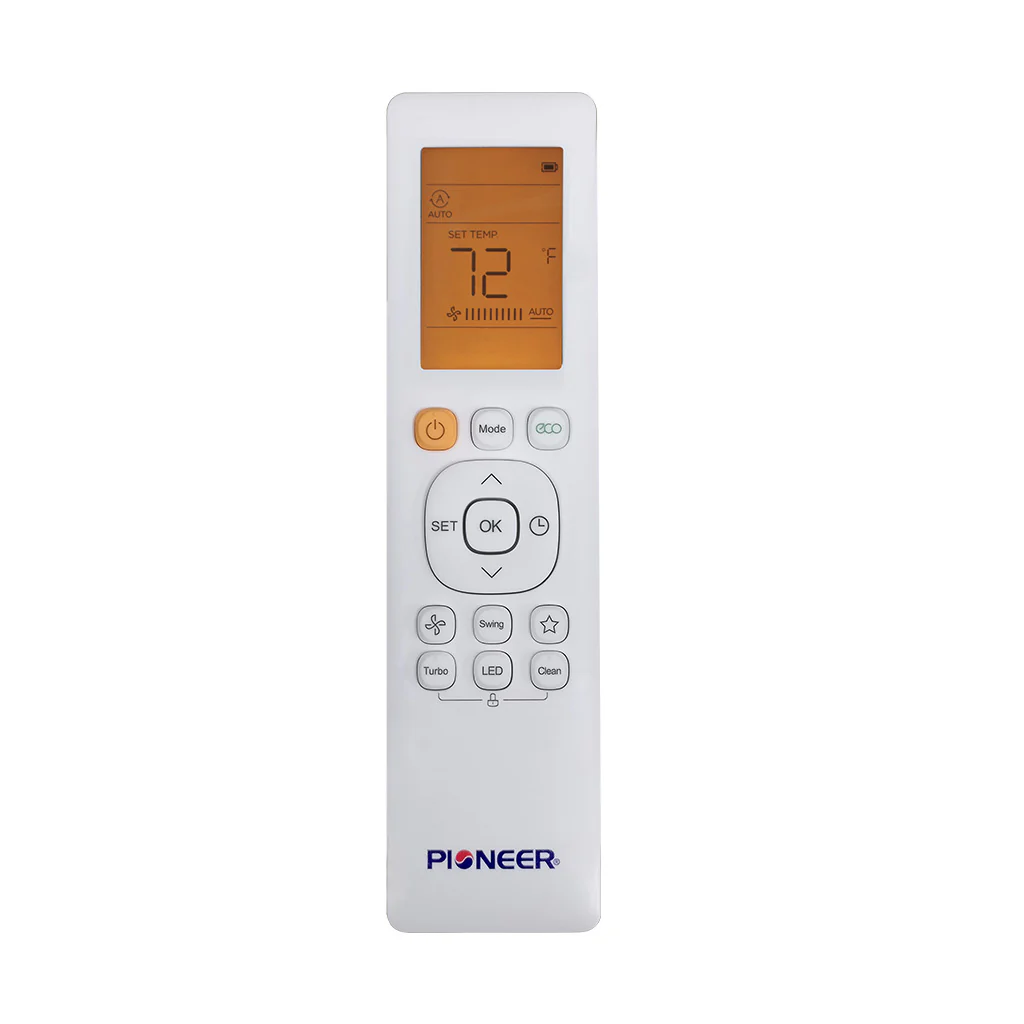

• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 36,000 BTU/h
• Cooling Capacity Range: 11,476~36,000 BTU/h
• Cooling SEER2: 19.0 BTU/W.h
• Cooling EER2: 8.5 BTU/W.h
• Heating Rated Capacity: 38,000 BTU/h
• Heating Capacity Range: 11,467~38,000 BTU/h
• Heating HSPF2 (Region IV/V): 9.0 / 7.0 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 2.68 / 1.8 W/W
• Refrigerant Type: R410a
• Suitable Area: 900~1,350 Sq.F

Indoor Unit Data

• Model: UB036GMFILCFHD
• Air Flow (Hi/Med/Lo): 1,036 / 917 / 638 CFM
• Sound Level (Hi/Med/Lo): 51.5 / 48.0 / 40.5 dB(A)
• Net Dimensions (WDH): 50.5 x 26.5 x 9.3 Inches
• Carton Dimensions (WDH): 53.5 x 29.8 x 12.4 Inches
• Net / Gross Weight: 69 / 82 Lbs

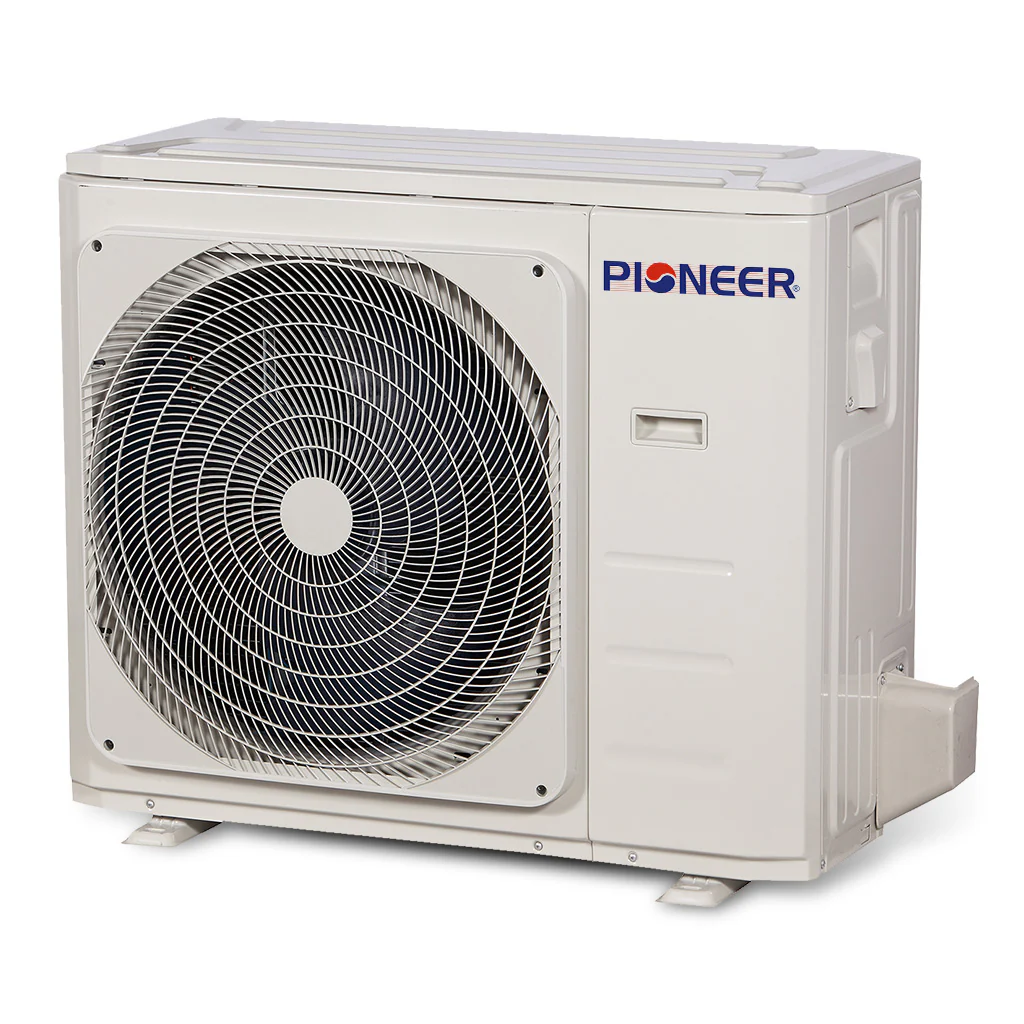

Outdoor Unit Data

• Part Number: YN036GMFI18RUE
• Sound Level: 63.5 dB(A)
• Breaker Needed: 40A (double-pole)
• Net Dimensions (WDH): 37.3 x 16.2 x 31.8 Inches
• Carton Dimensions (WDH): 42.8 x 19.6 x 34.0 Inches
• Net / Gross Weight: 155.4 / 166.2 Lbs

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Installation Manual
• Series Service Manual
• UYB036GMFILCBD Submittal Sheet
• AHRI Certificate
• Energy Guide
