Pioneer® 36,000 BTU 17.5 SEER2 Ductless Mini-Split Inverter+ Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

• High Efficiency Quantum Series Inverter+ ductless mini split heat pump system
• Cooling capacity: 36,000 BTU/H with 17.5 SEER2 / 8.5 EER2 efficiency
• Heating capacity: 36,000 BTU/H with 8.7 HSPF2 / 2.47 COP2 efficiency
• Voltage: 208~230V, 60Hz, 1Ph
• High Wall Mounted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

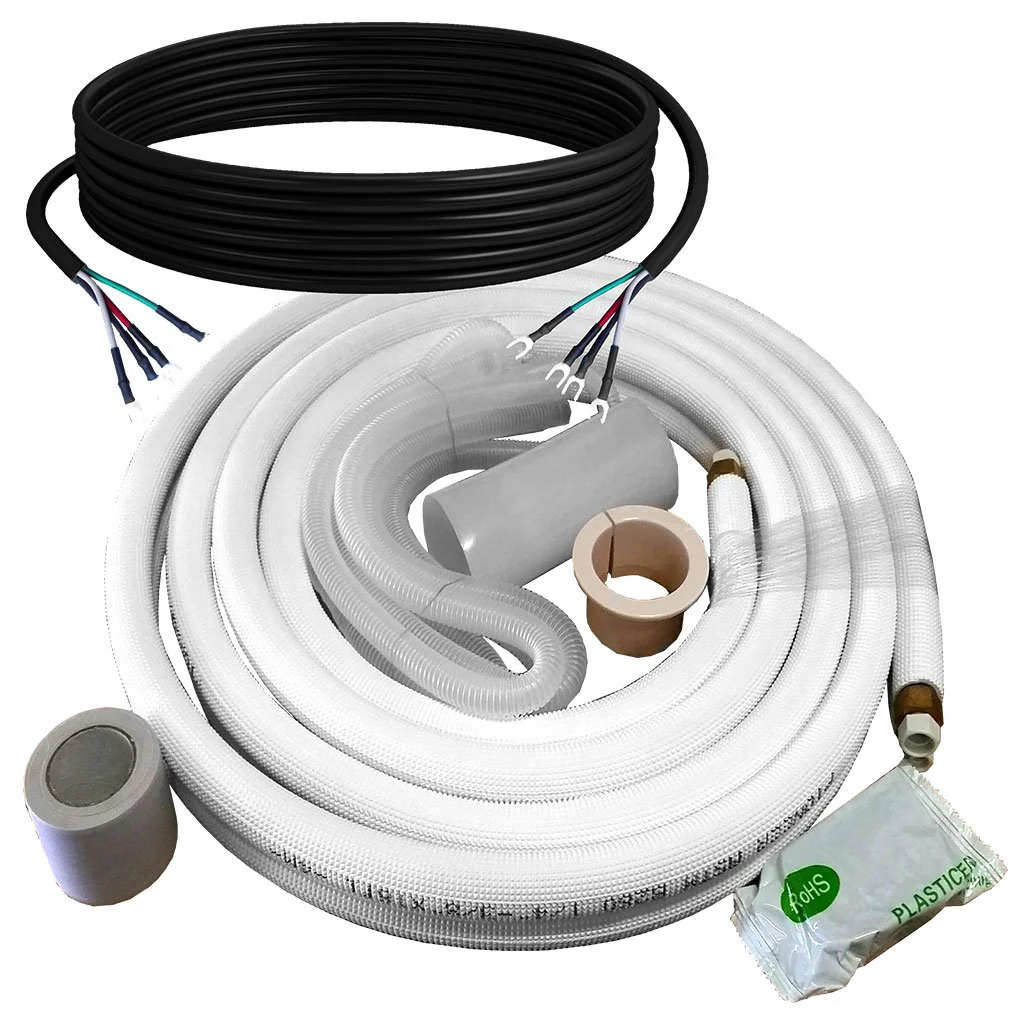

• Customizable length copper line set with flare connections
• AHRI Estimated Annual Operating Costs:
• Cooling: $272.00
• Heating: $645.00

[[SERIES]]

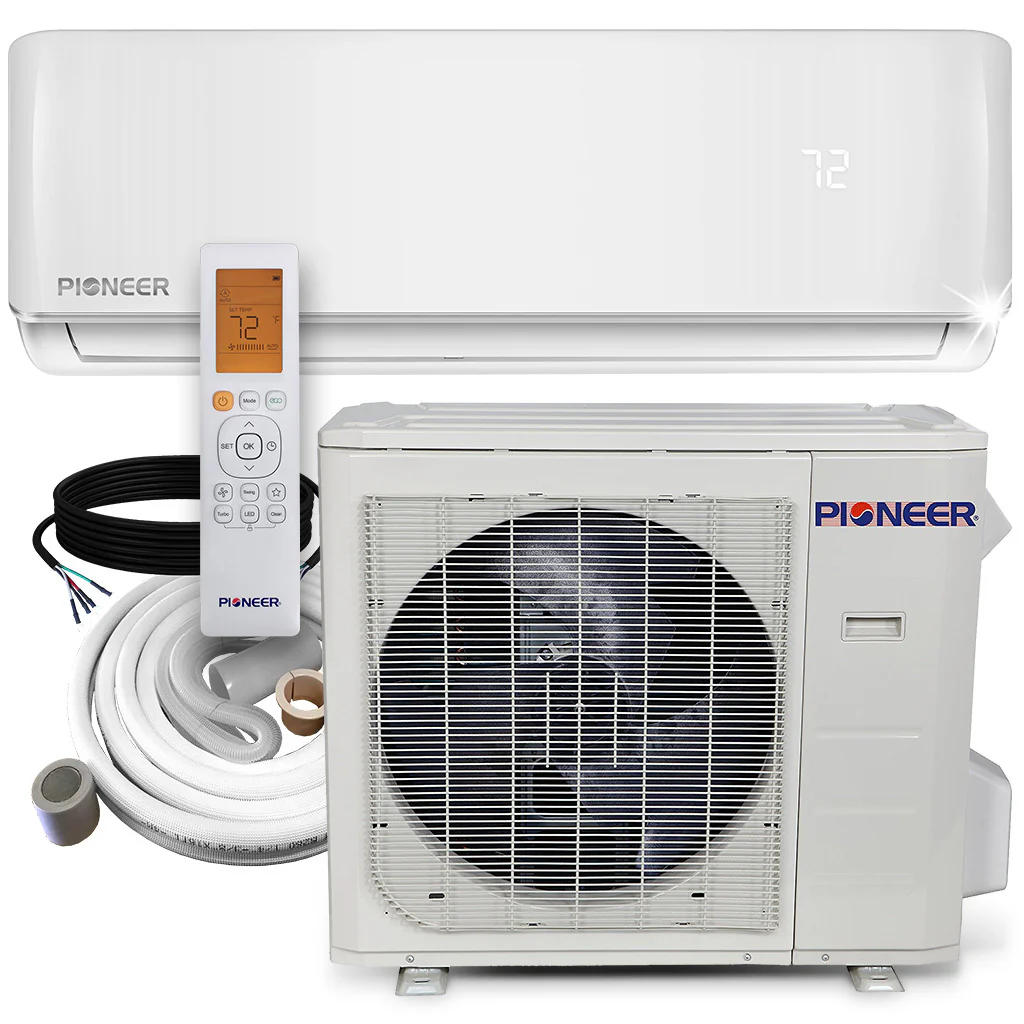

What's Included

• Ductless Wall-Type Indoor Air Handler Unit
• Outdoor Heat Pump Condensing Unit

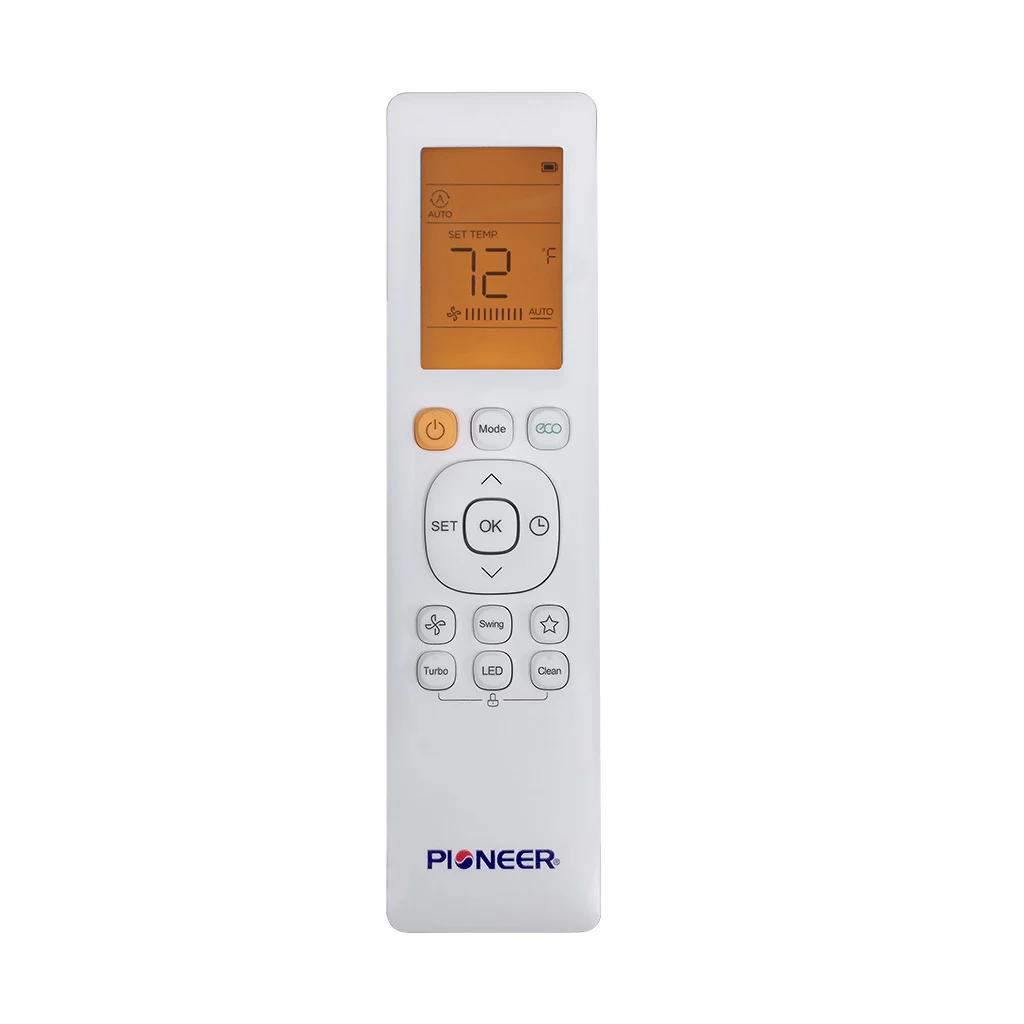

• Wireless Handheld Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 36,000 BTU/h (3-Ton)
• Cooling Capacity Range: 8,900~36,300 BTU/h
• Cooling SEER2: 17.5 BTU/W.h
• Cooling EER2: 8.5 BTU/W.h
• Heating Rated Capacity: 36,000 BTU/h (3-Ton)
• Heating Capacity Range: 11,400~37,800 BTU/h
• Heating HSPF2 (Region IV/V): 8.7 / 6.8 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 2.47 / 1.97 W/W
• Refrigerant Type: R410A/120
• Suitable Area: 900~1,250 Sq.F

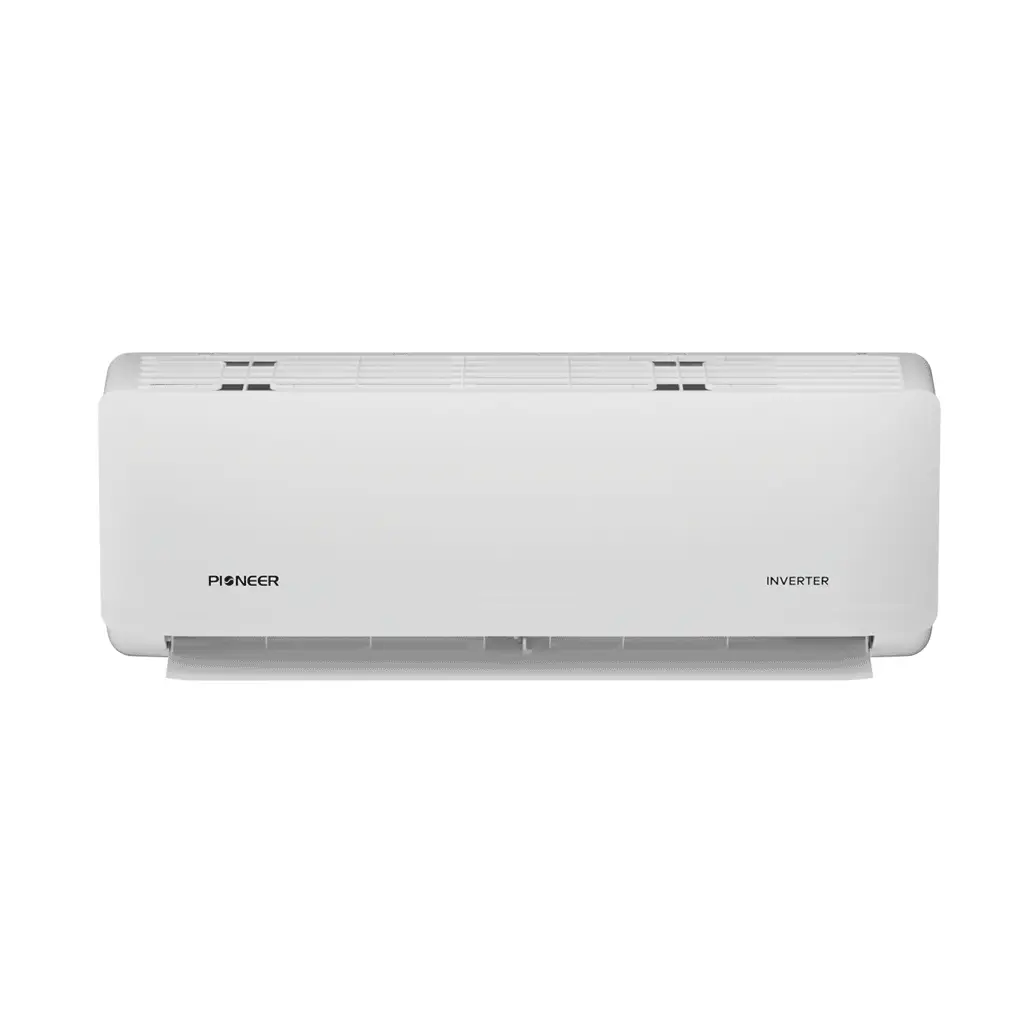

Indoor Unit Data

• Model Number: WS036GMFI20HLD
• Air Flow (Turbo/Hi/Med/Lo): 882 / 732 / 518 / 400 CFM
• Sound Level (Hi/Med/Lo): 56.5 / 54.5 / 40 dB(A)
• Net Dimensions (WDH): 49"-1/2 x 11"-1/8 x 14"-1/4 Inches
• Carton Dimensions (WDH): 52"-3/4 x 17"-3/4 x 15"-1/4 Inches
• Net / Gross Weight: 40 / 52.5 lbs

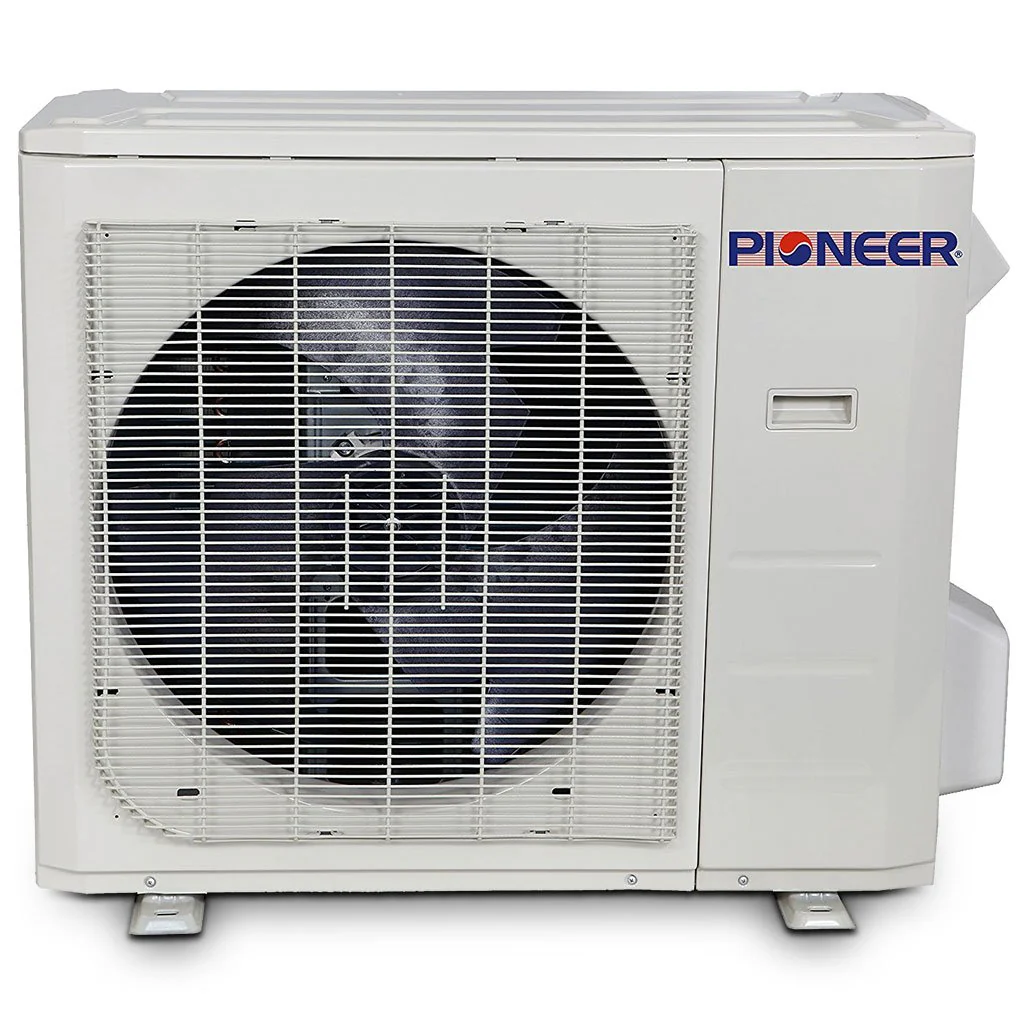

Outdoor Unit Data

• Model Number: YN036GMFI20RPD
• Sound Level: 63.5 dB(A)
• Breaker Needed: 30A (double-pole)
• Net Dimensions (WDH): 37"-1/4 x 16"-1/4 x 31"-7/8 Inches
• Carton Dimensions (WDH): 42"-7/8 x 19"-5/8 x 34" Inches
• Net / Gross Weight: 150 / 159 lbs

Manuals & Downloads

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• Disassembly Guide
• AHRI Certificate
• Energy Guide
