Pioneer® 24,000 BTU 21.2 SEER2 Floor/Ceiling Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

• Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
• Cooling capacity: 24,000 BTU/H with 21.2 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 24,000 BTU/H with 10.3 HSPF2 / 3.66 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Floor/Ceiling Flex Mount Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

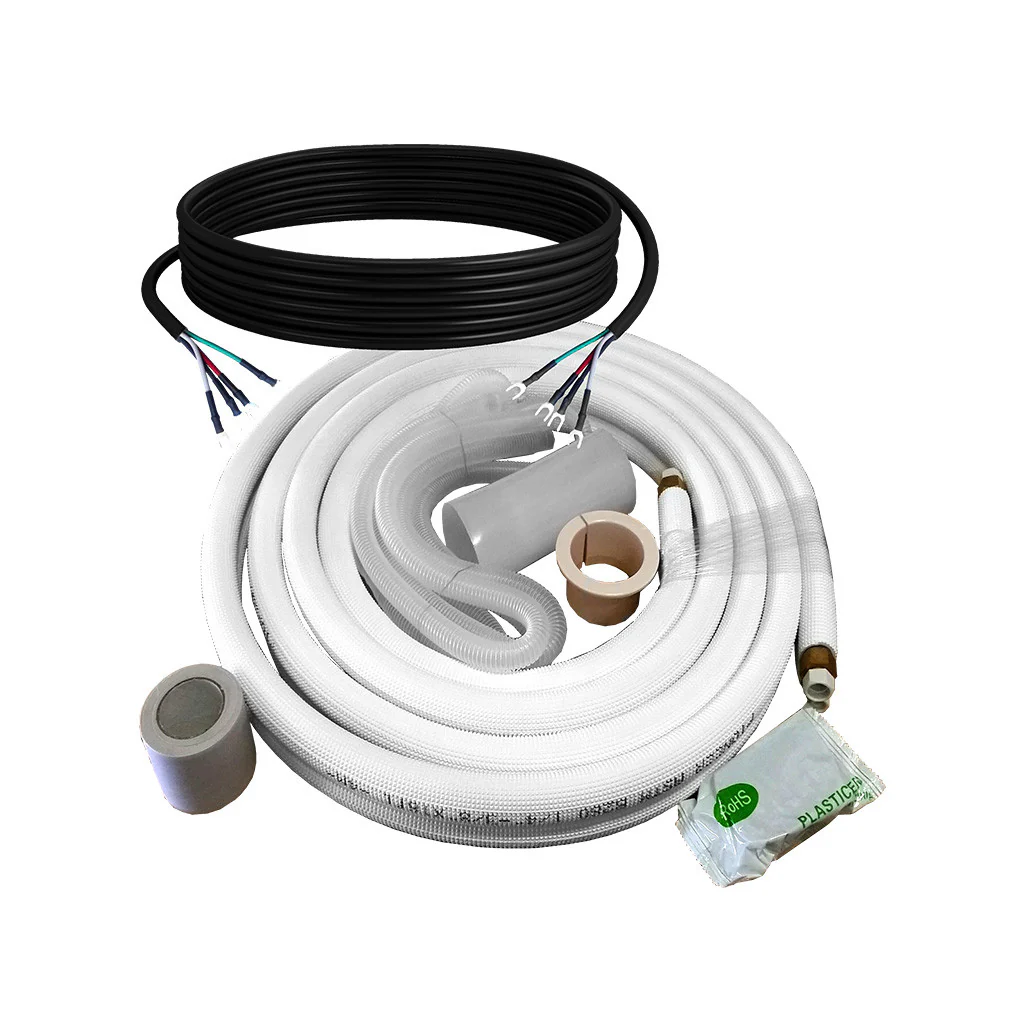

• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $158.00
• Heating: $453.00

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 24,000 BTU/h
• Cooling Capacity Range: 7,700~25,500 BTU/h
• Cooling SEER2: 21.2 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 24,000 BTU/h
• Heating Capacity Range: 7,800~31,240 BTU/h
• Heating HSPF2 (Region IV/V): 10.3 / 7.8 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.66 / 2.2 W/W
• Refrigerant Type: R410a
• Suitable Area: 650~900 Sq.F

Indoor Unit Data

• Part Number: UB024GMFILCFHD
• Air Flow (Hi/Med/Lo): 759 / 708 / 598 CFM
• Sound Level (Hi/Med/Lo): 51.0 / 47.0 / 42.0 dB(A)
• Net Dimensions (WDH): 42.0 x 26.5 x 9.3 Inches
• Carton Dimensions (WDH): 45.0 x 29.8 x 12.4 Inches
• Net / Gross Weight: 60.6 / 72.0 Lbs

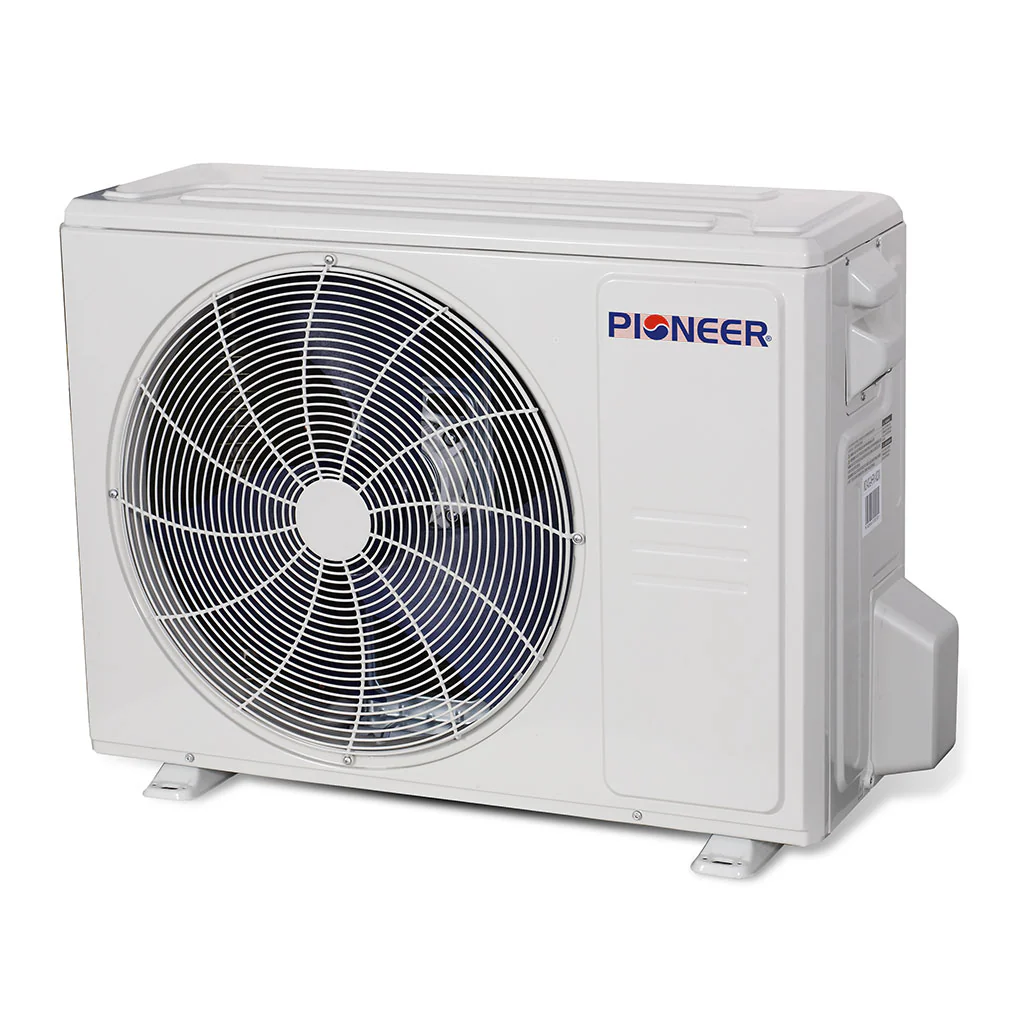

Outdoor Unit Data

• Part Number: YN024GMFI22RPE
• Breaker Needed: 25A (double-pole)
• Sound Level: 61.0 dB(A)
• Net Dimensions (WDH): 37.2 x 16.2 x 31.8 Inches
• Carton Dimensions (WDH): 42.8 x 19.6 x 34.8 Inches
• Net / Gross Weight: 124.8 / 134.9 Lbs

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Installation Manual
• Series Service Manual
• UYB024GMFILCAD Submittal Sheet
• AHRI Certificate
• Energy Guide
