Pioneer® 18,000 BTU 20 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

• Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
• Cooling capacity: 17,000 BTU/H with 20.0 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 20,000 BTU/H with 10.6 HSPF2 / 3.12 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Concealed Ducted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $119.00
• Heating: $346.00

[[SERIES]]

What's Included

• Indoor Unit

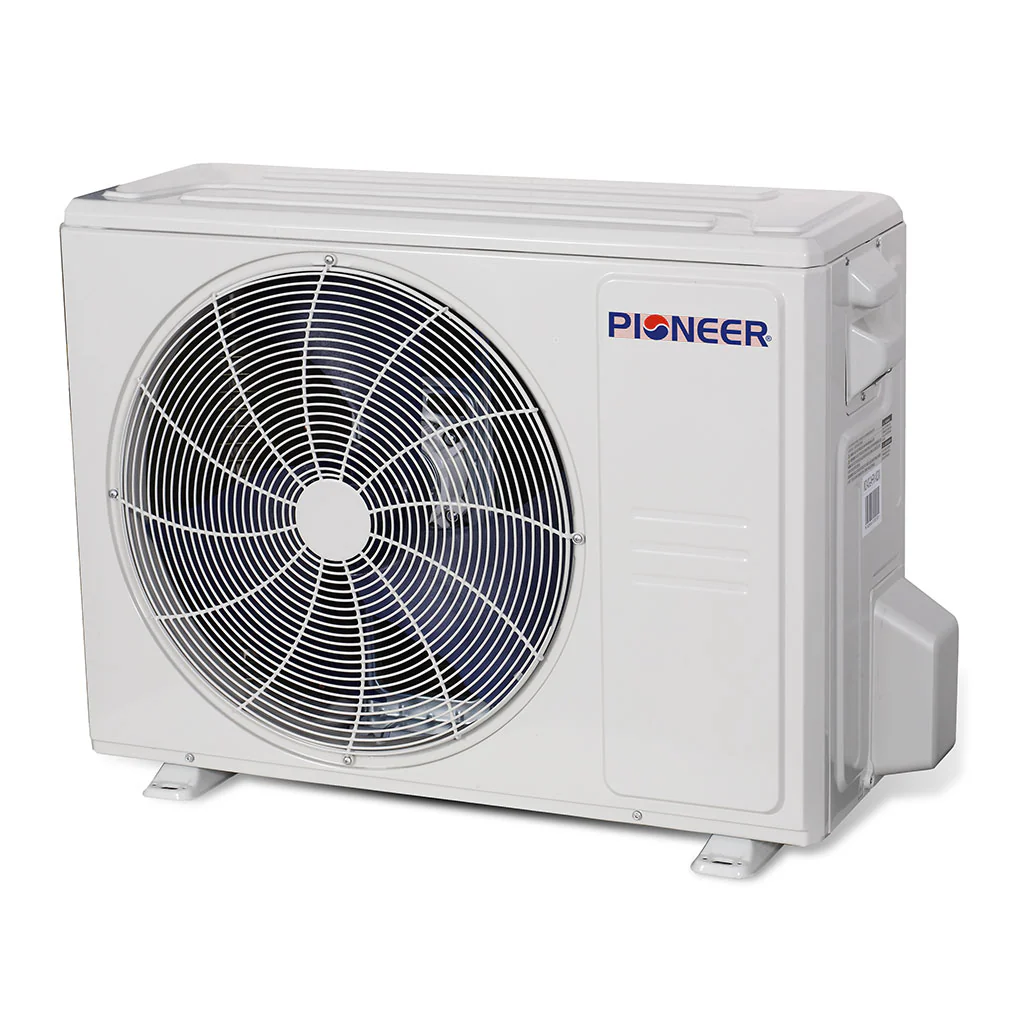

• Outdoor Unit

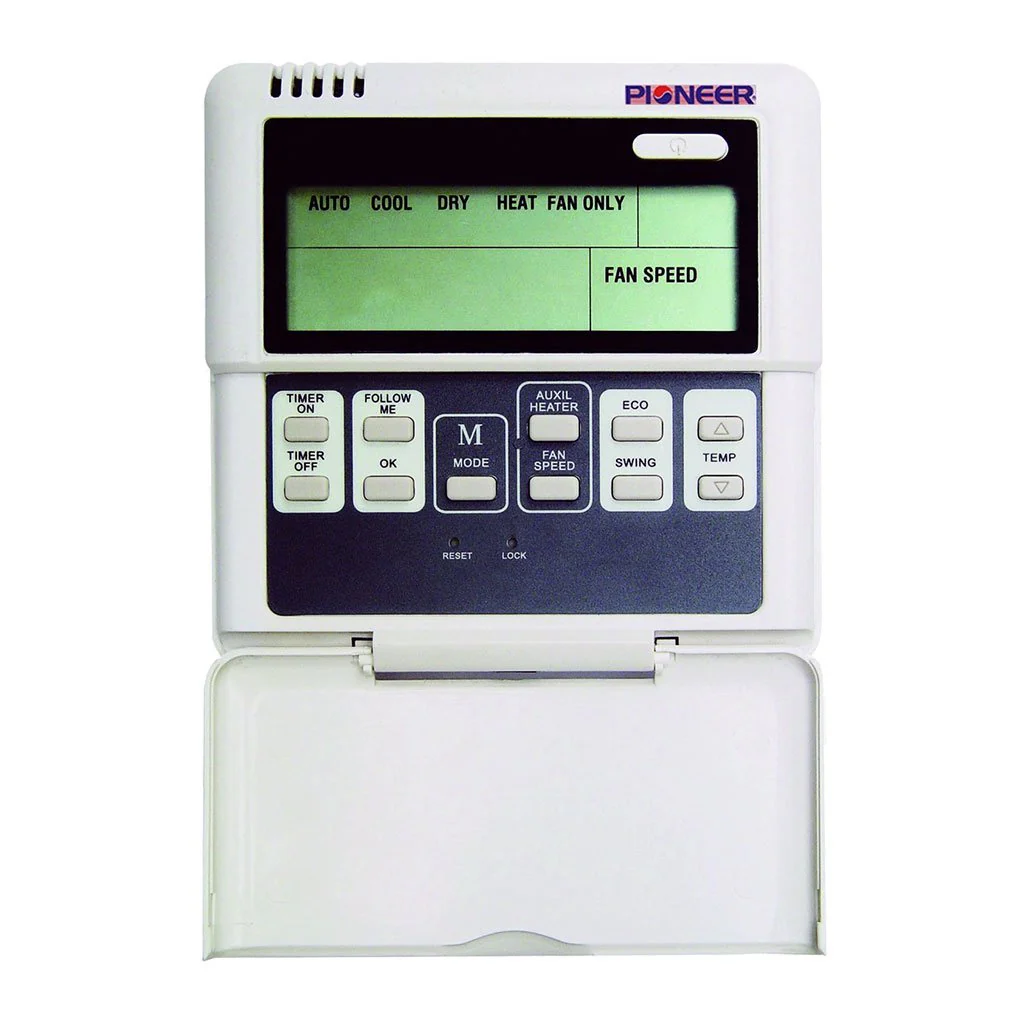

• Wire Remote Control

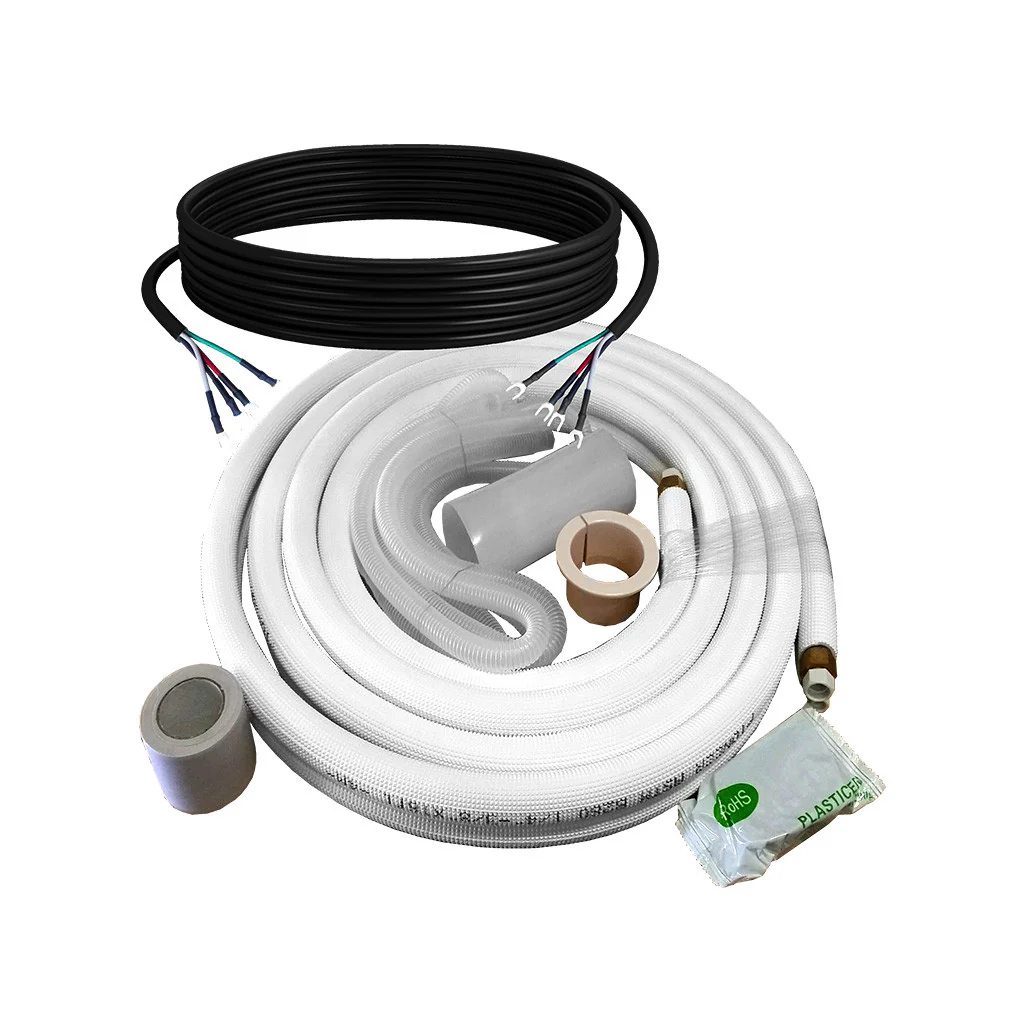

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 17,000 BTU/h
• Cooling Capacity Range: 5,800~18,000 BTU/h
• Cooling SEER2: 20.0 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 20,000 BTU/h
• Heating Capacity Range: 5,000~20,000 BTU/h
• Heating HSPF2 (Region IV/V): 10.6 / 8.2 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.12 / 2.4 W/W
• Refrigerant Type: R410a
• Suitable Area: 450~650 Sq.F

Indoor Unit Data

• Part Number: RB018GMFILDFHD
• Air Flow (Hi/Med/Lo): 530 / 450 / 370 CFM
• External Static Pressure: 0 ~ 0.40 Inch WC
• Sound Level (Hi/Med/Lo): 41.5 / 38.5 / 36 dB(A)
• Net Dimensions (WDH): 34"-5/8 x 26"-1/2 x 8"-1/2
• Carton Dimensions (WDH): 42"-1/8 x 28"-1/2 x 10"-5/8
• Net / Gross Weight: 53 / 65 Lbs

Outdoor Unit Data

• Part Number: YN018GMFI22RPE

• Sound Level: 60 dB(A)
• Net Dimensions (WDH): 33"-1/4 x 14"-3/8 x 27"-5/8
• Carton Dimensions (WDH): 38" x 15"-1/2 x 29"-3/4
• Net / Gross Weight: 95 / 102.5 Lbs
• Breaker Needed: 20A (double-pole)

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Technical Manual
• Series Installation Manual

• Series Service Manual
• Series Disassembly Guide
• RYB018GMFILDAD Submittal Sheet
• AHRI Certificate
• Energy Guide
