Pioneer® 18,000 BTU 23 SEER2 Floor/Ceiling Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

• Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
• Cooling capacity: 18,000 BTU/H with 23 SEER2 / 12.5 EER2 efficiency
• Heating capacity: 20,000 BTU/H with 10.0 HSPF2 / 2.92 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Floor/Ceiling Flex Mount Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $113.00
• Heating: $346.00

[[SERIES]]

What's Included

• Indoor Unit
• Outdoor Unit

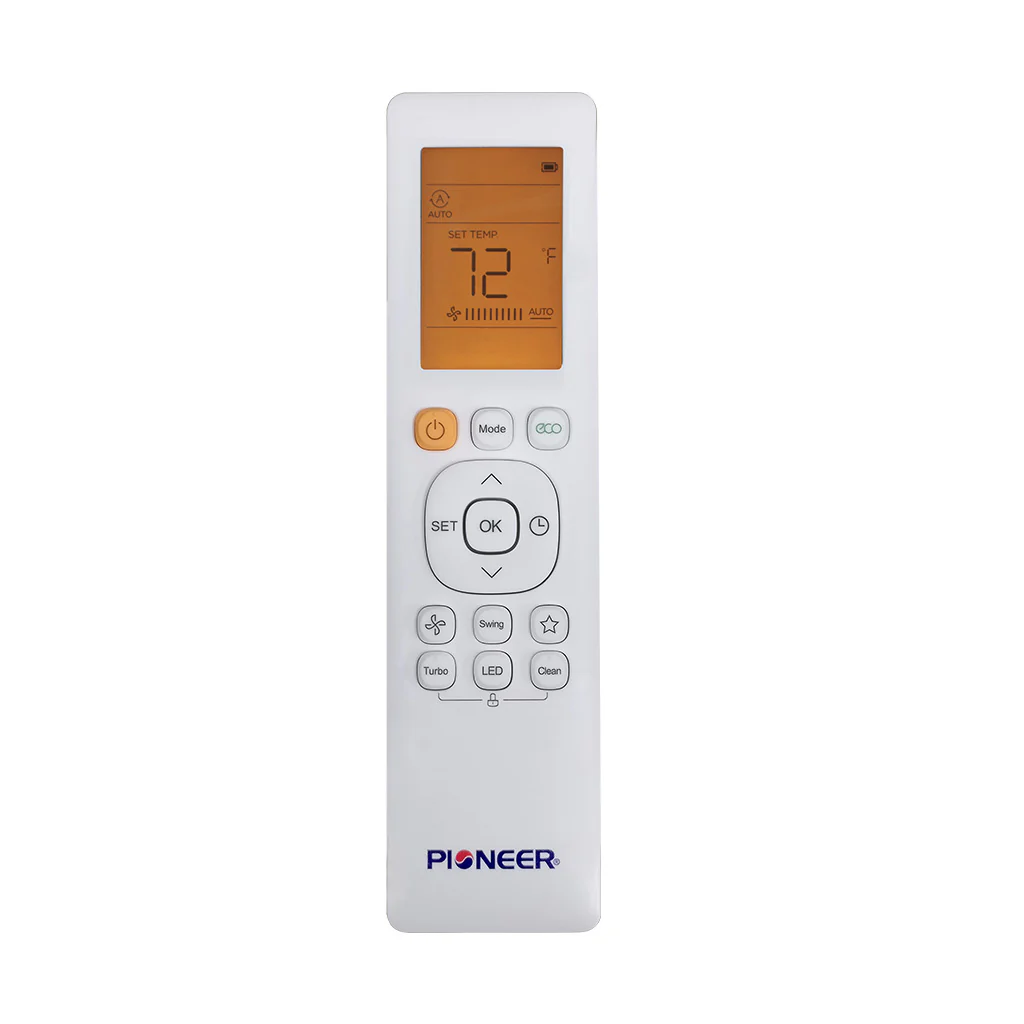

• Wireless Remote Control

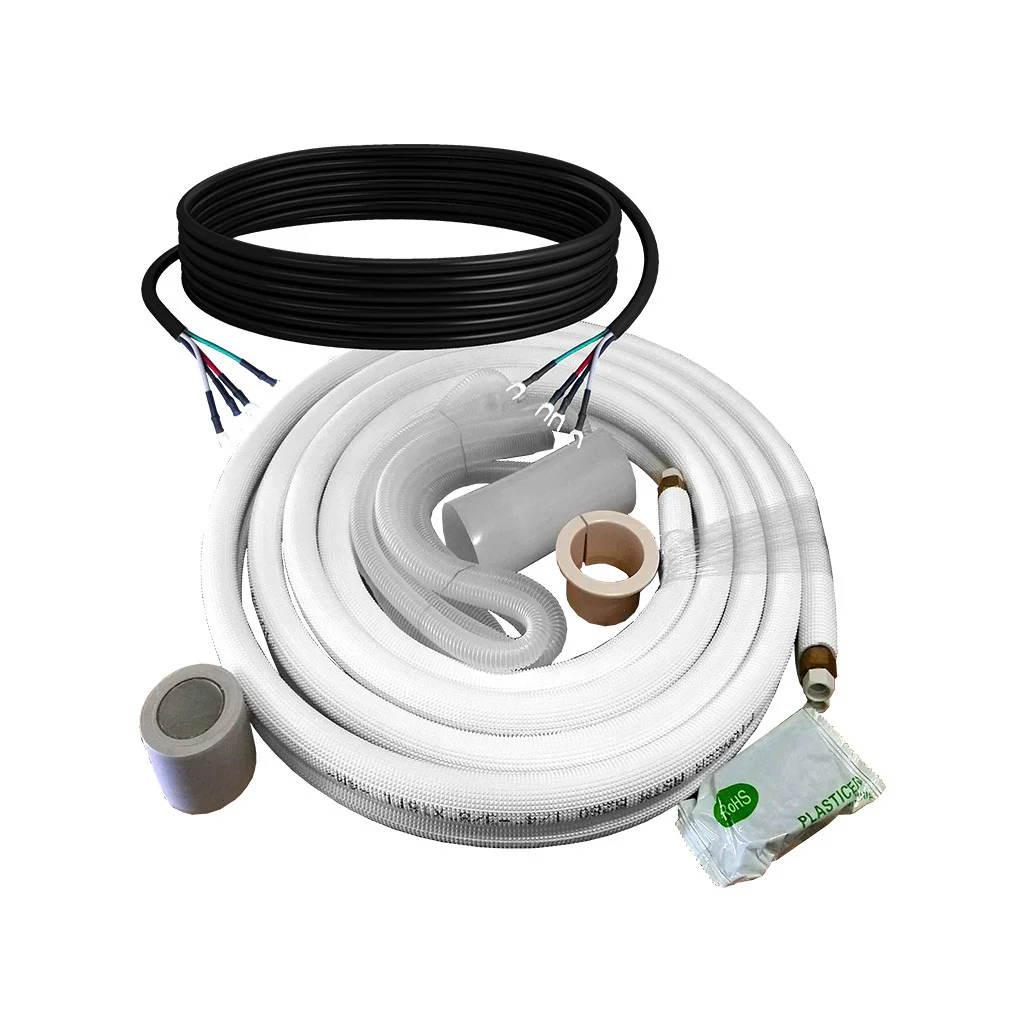

• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 18,000 BTU/h
• Cooling Capacity Range: 6,200~18,000 BTU/h
• Cooling SEER2: 23.0 BTU/W.h
• Cooling EER2: 12.5 BTU/W.h
• Heating Rated Capacity: 20,000 BTU/h
• Heating Capacity Range: 8,100~20,000 BTU/h
• Heating HSPF2 (Region IV/V): 10.0 / 7.7 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 2.92 / 2.08 W/W
• Refrigerant Type: R410a
• Suitable Area: 400~650 Sq.F

Indoor Unit Data

• Model: UB018GMFILCFHD
• Air Flow (Hi/Med/Lo): 548 / 485 / 420 CFM
• Sound Level (Hi/Med/Lo): 47.0 / 44.0 / 39.0 dB(A)
• Net Dimensions (WDH): 42.0 x 26.5 x 9.3 Inches
• Carton Dimensions (WDH): 45.0 x 29.8 x 12.4 Inches
• Net / Gross Weight: 57 / 68 Lbs

Outdoor Unit Data

• Model: YN018GMFI22RPE
• Sound Level: 60.0 dB(A)
• Net Dimensions (WDH): 35 x 13.4 x 26.5 Inches
• Carton Dimensions (WDH): 39.0 x 15.5 x 29.1 Inches
• Net / Gross Weight: 94 / 101 Lbs
• Breaker Needed: 20A (double-pole)

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Installation Manual
• Series Service Manual
• Submittal Sheet
• AHRI Certificate

• Energy Guide
