Pioneer® 12,000 BTU 19 SEER2 Ceiling Concealed Ducted Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

Overview

Summary

• Ultra High Efficiency Inverter++ ceiling concealed duct split heat pump system
• Cooling capacity: 11,500 BTU/H with 19 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 12,000 BTU/H with 10.3 HSPF2 / 3.52 COP2 efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Concealed Ducted Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode
• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $74.00
• Heating: $221.00

[[SERIES]]

What's Included

• Indoor Unit

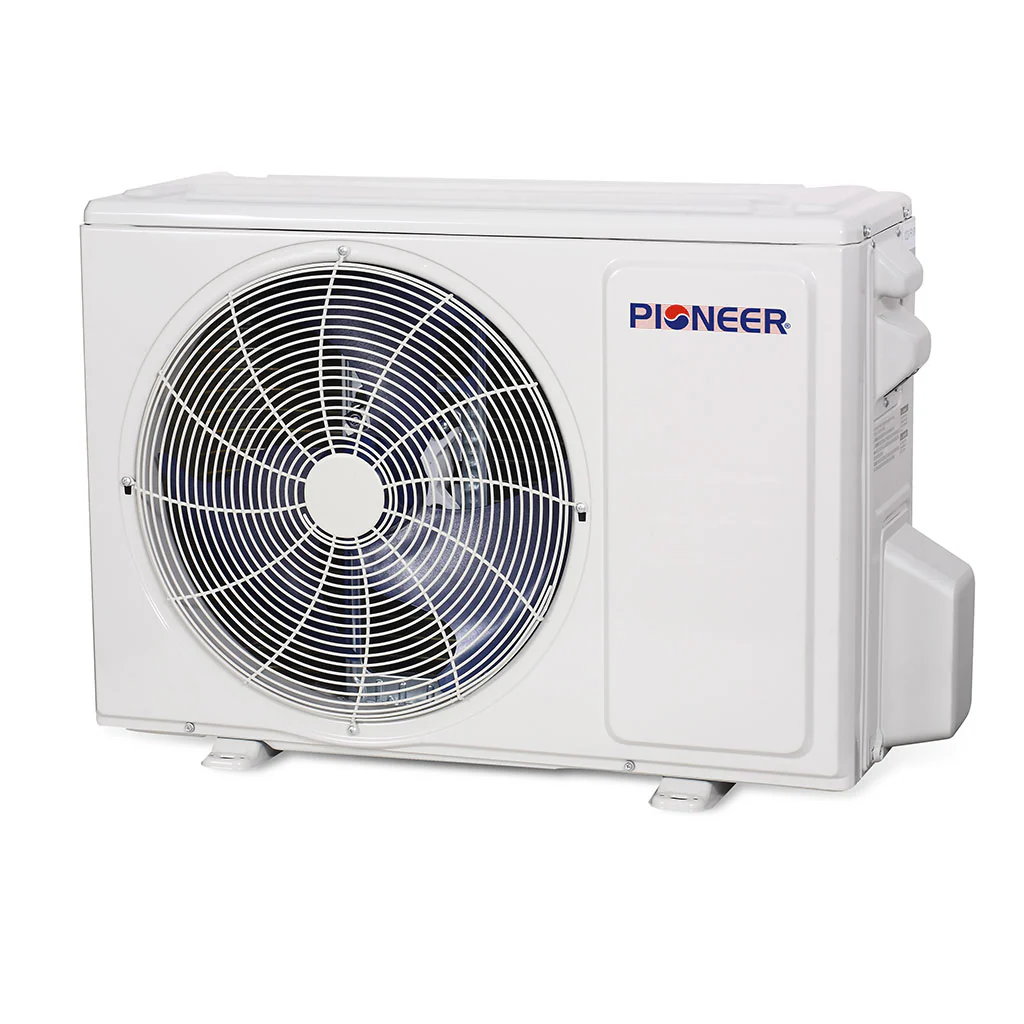

• Outdoor Unit

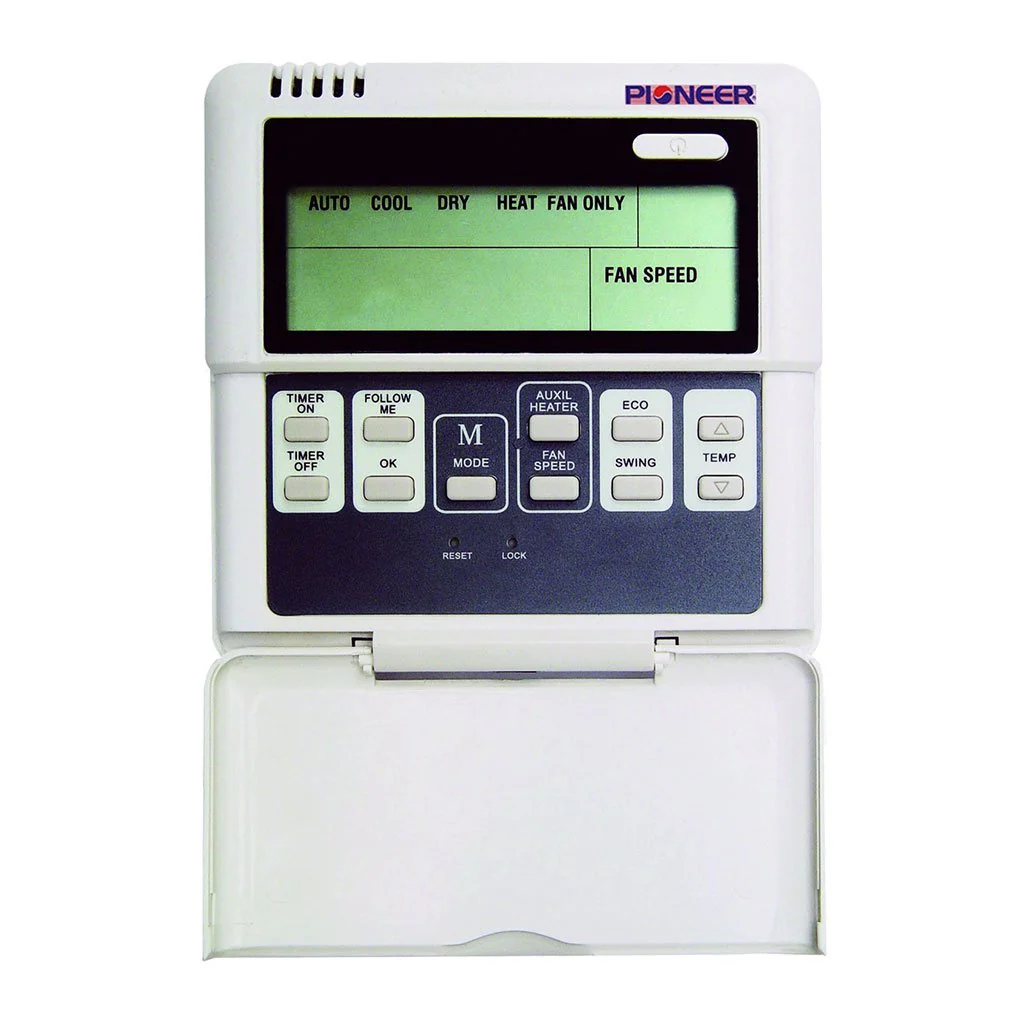

• Wire Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Our Guarantee

• 5 year parts limited warranty
• 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Performance Data

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 11,500 BTU/h
• Cooling Capacity Range: 2,100~13,450 BTU/h
• Cooling SEER2: 19.0 BTU/W.h
• Cooling EER2: 11.7 BTU/W.h
• Heating Rated Capacity: 12,000 BTU/h
• Heating Capacity Range: 1,900~15,000 BTU/h
• Heating HSPF2 (Region IV/V): 10.3 / 7.8 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.52 / 2.26 W/W
• Refrigerant Type: R410a
• Suitable Area: 250~450 Sq.F

Indoor Unit Data

• Part Number: RB012GMFILDFHD

• Air Flow (Hi/Med/Lo): 353 / 282 / 176 CFM
• External Static Pressure: 0 ~ 0.16 Inch WC
• Sound Level (Hi/Med/Lo): 38.0 / 34.5 / 31.0 dB(A)
• Net Dimensions (WDH): 27"-1/2 x 20" x 7"-7/8
• Carton Dimensions (WDH): 33"-7/8 x 21"-1/4 x 11"-1/4
• Net / Gross Weight: 39.2 / 48.5 Lbs

Outdoor Unit Data

• Part Number: YN012GMFI22RPE
• Sound Level: 58 dB(A)
• Breaker Needed: 15A (double-pole)
• Net Dimensions (WDH): 30"-1/8 x 11"-7/8 x 21"-7/8
• Carton Dimensions (WDH): 34"-7/8 x 13"-1/4 x 24"
• Net / Gross Weight: 63.7 / 69.0 Lbs

Manuals & Downloads

• Series Technical Brochure
• Series User Manual
• Series Technical Manual
• Series Installation Manual
• Series Service Manual
• Series Disassembly Guide
• RYB012GMFILDAD Submittal Sheet
• AHRI Certificate
• Energy Guide
