Overview

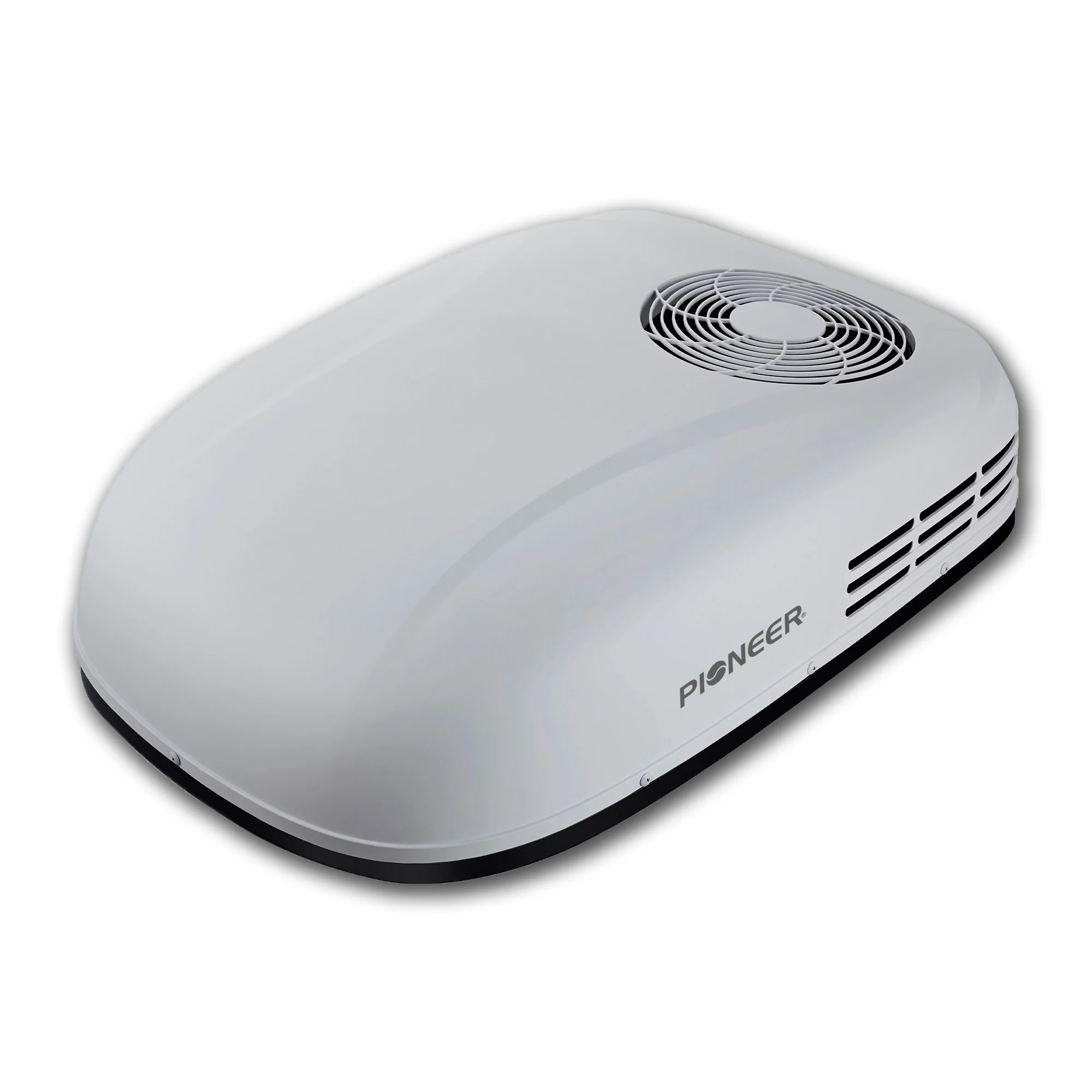

Go further than ever before and experience the next level of RV climate control with the PYZ012AZUDCIPD Full Inverter RV Rooftop Air Conditioner Heat Pump. Designed for maximum efficiency and comfort, this unit features DC inverter technology with a dual-fan structure, ensuring superior performance, reduced power consumption, and ultra-quiet operation.

With 13,500 BTU of cooling and heating power, this unit keeps your RV comfortable in all seasons. The sleek, aerodynamic shroud minimizes drag, while the smart app and remote control compatibility offer effortless operation. Using eco-friendly R32 refrigerant, it delivers powerful climate control with a reduced environmental footprint. And with its fully DC Inverter-driven tech, the system offers a starting current close to 0 amps, removing the need to implement any expensive soft-starter systems for powering via generators or batteries.

Ideal for standard RV roof openings (14-1/2 x 14-1/4 inch or 15-3/4 x 15-3/4 inch), this unit integrates seamlessly into your setup. Whether you're exploring the desert or camping in the mountains, this rugged and efficient air conditioner heat pump keeps you comfortable wherever the road takes you.

Summary

Model Number: PYZ012AZUDCIPD
Cooling Capacity: 13,500 BTU
Cooling Efficiency (EER): 9.0 BTU/w.h
Heating Capacity: 13,500 BTU
Heating Efficiency (C.O.P.): 3.04 W/W
Power Supply: 115V / 60Hz
Full DC Inverter Technology for high efficiency & quiet operation
Zero In-Rush Current eliminates the need for expensive soft-starters
Dual-Fan Structure for improved airflow and noise reduction
App & Remote Control Compatible for easy operation
Heat Pump Function for cooling and heating versatility
Sleek, Low-Profile Design (<10" height) reduces wind resistance
Smart Airflow Distribution for even temperature control
Energy-Efficient R32 Refrigerant (non-ozone depleting)
Wide Operating Temperature Range:
- Cooling Mode: 63°F - 109°F (Outdoor) / 63°F - 90°F (Indoor)
- Heating Mode: 28°F - 75°F (Outdoor) / 28°F - 81°F (Indoor)

What's Included

RV Rooftop Air Conditioner Heat Pump Unit (PYZ012AZUDCIPD)
Interior Ceiling Assembly with LED Display & Controls
Mounting Gasket & Hardware Kit
User Manual & Installation Guide
Remote Control

Our Guarantee

Your comfort and satisfaction are our top priority. The PYZ012AZUDCIPD RV rooftop air conditioner heat pump is backed by:

3 year parts limited warranty
3 year compressor limited warranty

Technical Information

Performance Data

Rated Cooling Capacity (Range): 7,500 ~ 13,500 BTU/hr
Rated Heating Capacity (Range): 7,200 ~ 13,500 BTU/hr
Power Supply / Frequency: 115V / 60Hz
Cooling Input Power: 850 ~ 1500W
Heating Input Power: 750 ~ 1300W
Rated Input Current of the Converter: 11A
Current (Cooling/Heating): 9.8 ~ 16.9A / 8.9 ~ 14.5A
MCA (Minimum Circuit Ampacity): 16A
MOP (Maximum Overcurrent Protection): 25A
Airflow High/Med/Low (CFM): 290 / 265 / 245
Sound Level (from 40 In. Distance, High Fan Speed): 57 dB(A)
Refrigerant Type: R32
Refrigerant Charge: 19.75 oz

Unit Physical Data

Dimensions (Outdoor Section - L x W x H): 41-5/8 x 29 x 10 (inches)
Weight (Outdoor Section): 92.6 lbs
Dimensions (Indoor Section - L x W x H): 21-1/4 x 23-1/4 x 2-7/8 (inches)
Weight (Indoor Section): 8.2 lbs
Standard Roof Opening Sizes: 14-1/2 x 14-1/4 (inch) or 15-3/4 x 15-3/4 (inch)
Cable Standard: 12 AWG / <25 ft
Circuit Protection Fuse: 20A

Product Documentation

Sales Brochure
Install/Instructions
Exploded Parts Diagram
